SCZ series European standard CCS 2 socket are installed on electric vehicles, CCS type 2 inlet. By cooperating with CCS combo 2 DC charging cable, the DC charging function is realized. The products meet IEC 62196.3-2022 and RoHS requirements.
| Model | CCS 2 socket |
| Rated current | DC+: 80A, 125A, 150A, 200A, 250A, 300A, 400A; L1/L2/L3/N: 32A; PP/CP: 2A |
| Wire Diameter | 80A/16mm² | 125A/35mm² | 150A/50mm² | 200A/70mm² | 250A/95mm² | 300A/95mm² | 400A/120mm² |
| Rated voltage | DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage | 3000V AC / 1min. (DC + \ DC- \ PE) |
| Insulation resistance | ≥ 100mΩ 1000V DC (DC + / DC- / PE) |
| Electronic locks | 12V / 24V optional |
| Mechanical life | 10,000 times |
| Ambient temperature | -40℃ ~ 50℃ |
| Degree of Protection | IP55 (When not mated) | IP44 (After mated) |
| Main Material | |
| Shell | PA |
| Insulation part | PA |
| Sealing part | Silicone Rubber |
| Contact part | Copper alloy |

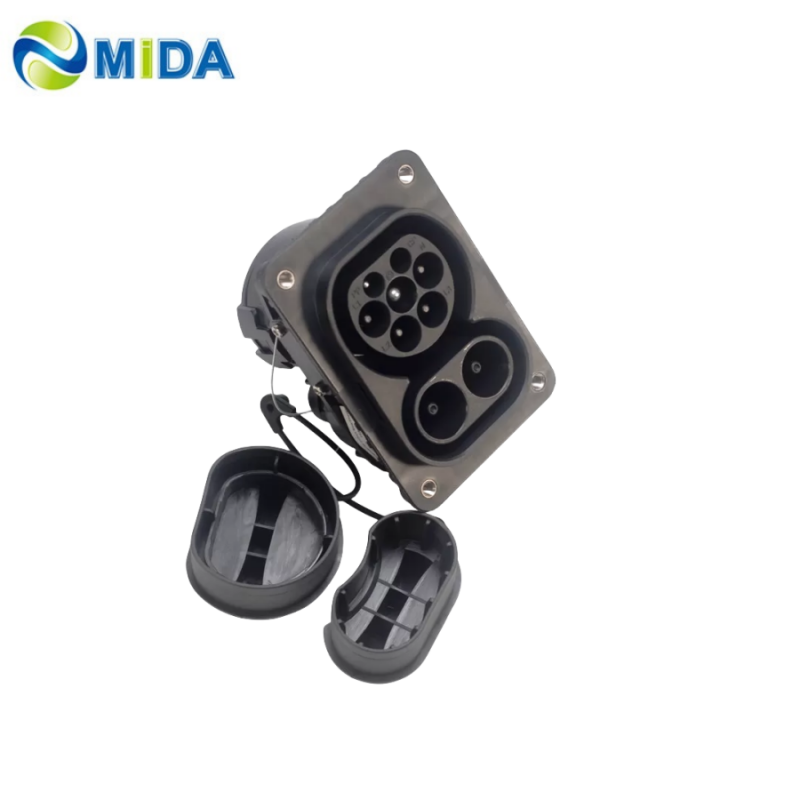

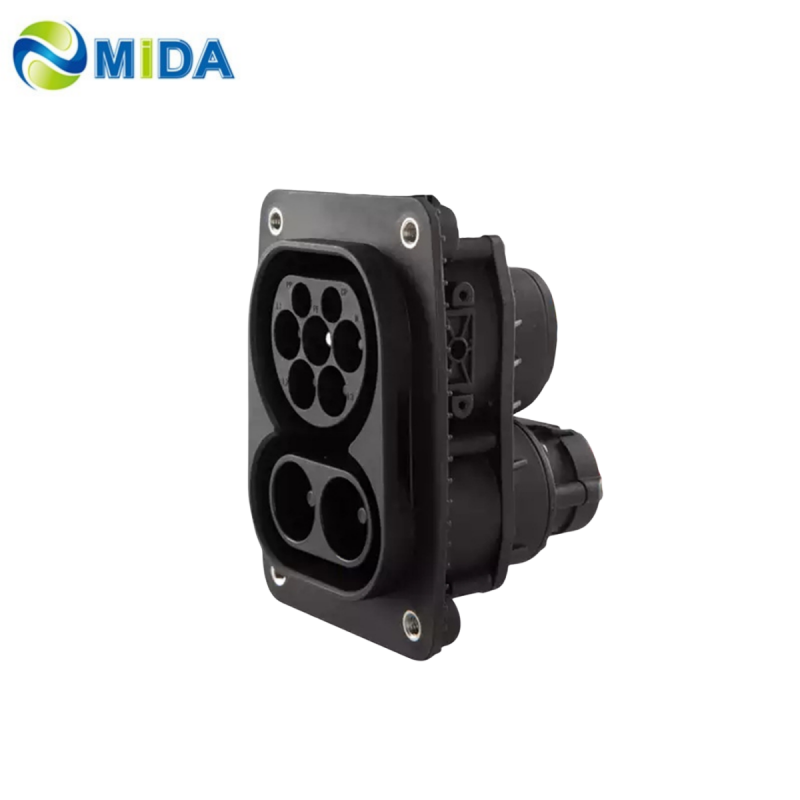

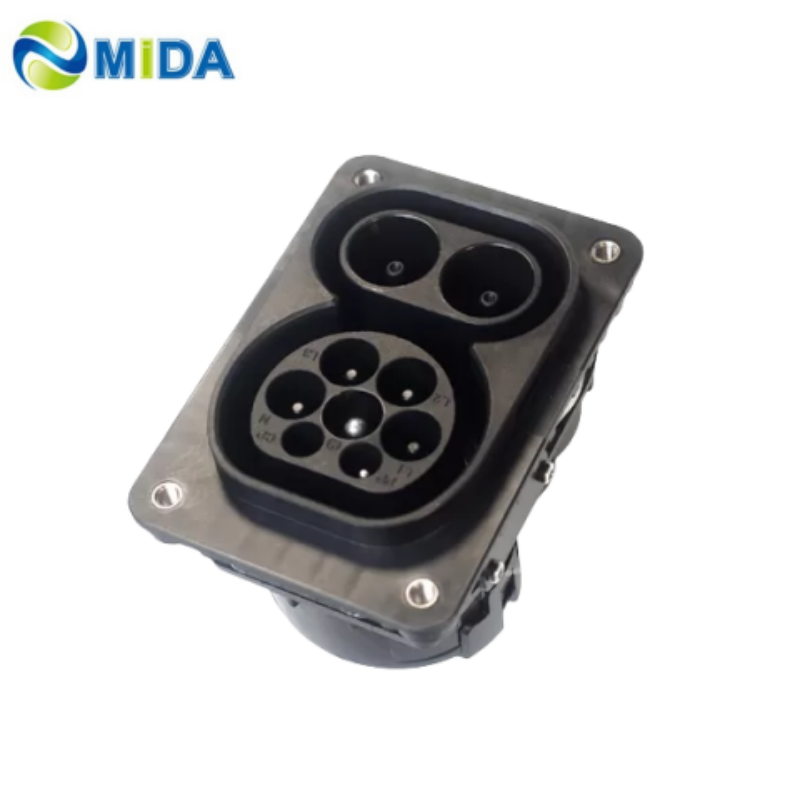

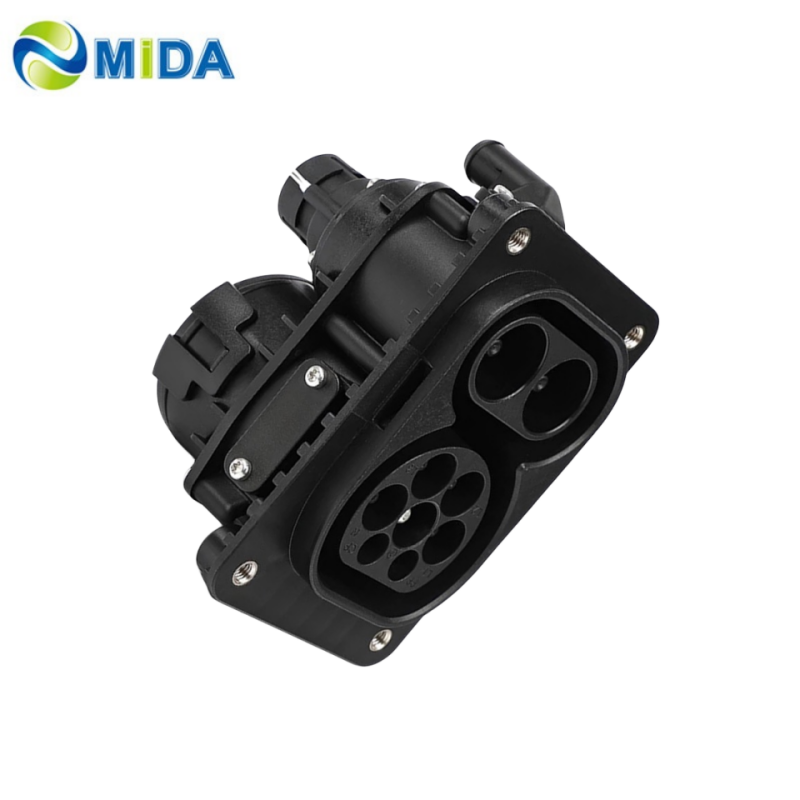

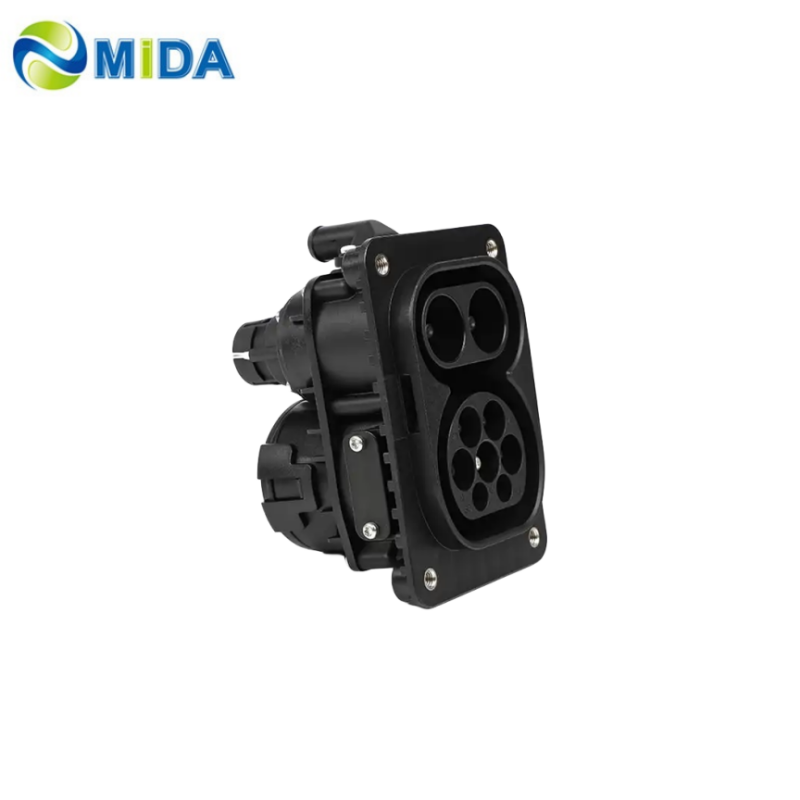

Product Pictures
The Combo CCS2 charging socket combines alternating current (AC) Type 2 charging and direct current (DC) CCS fast charge in one inlet. Available in 125A configurations.
Designed with safety insulation on pinheads to prevent accidental direct contact. Ensures the highest safety level, protecting users from potential electric shock.
Robust construction ensures reliability and longevity. A 125A rating and easy installation make it an excellent long-term investment for residential and commercial applications.
Fully compatible with Type 2 charging connectors increasingly used across Europe, eliminating compatibility concerns for EV owners.
1. What is the maximum DC charging current for this CCS2 socket?
The socket supports a wide range of DC current options, including 80A, 125A, 150A, 200A, 250A, 300A, and up to 400A to meet different fast-charging needs.
2. Does it support both AC and DC charging?
Yes, the Combo CCS2 socket is a combined inlet that supports both Type 2 AC charging and CCS DC fast charging in a single interface.
3. What international standards do these sockets comply with?
Our CCS 2 inlets meet the IEC 62196.3-2022 standards and are RoHS compliant, ensuring global compatibility and safety.
4. What is the protection rating (IP) of the CCS 2 inlet?
The socket has an IP55 protection rating when not mated and an IP44 rating after it is mated with a connector, providing excellent dust and water resistance.
5. Can I choose the electronic lock voltage?
Yes, the socket comes with an optional electronic lock available in both 12V and 24V configurations to suit your vehicle's locking system requirements.
6. How durable is the socket for long-term use?
The socket is designed for a mechanical life of over 10,000 plugging and unplugging cycles with a stable temperature rise, ensuring high reliability over years of service.
