Product Introduction
Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module. This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.

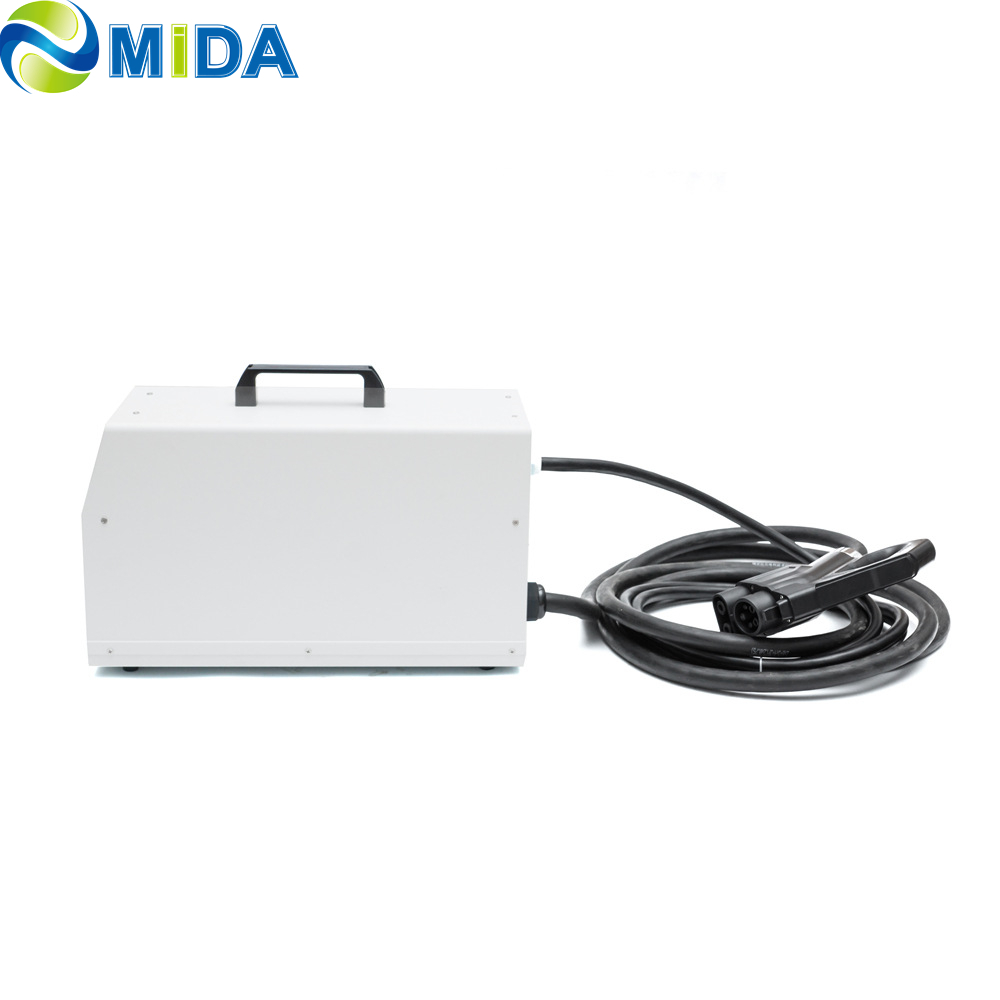

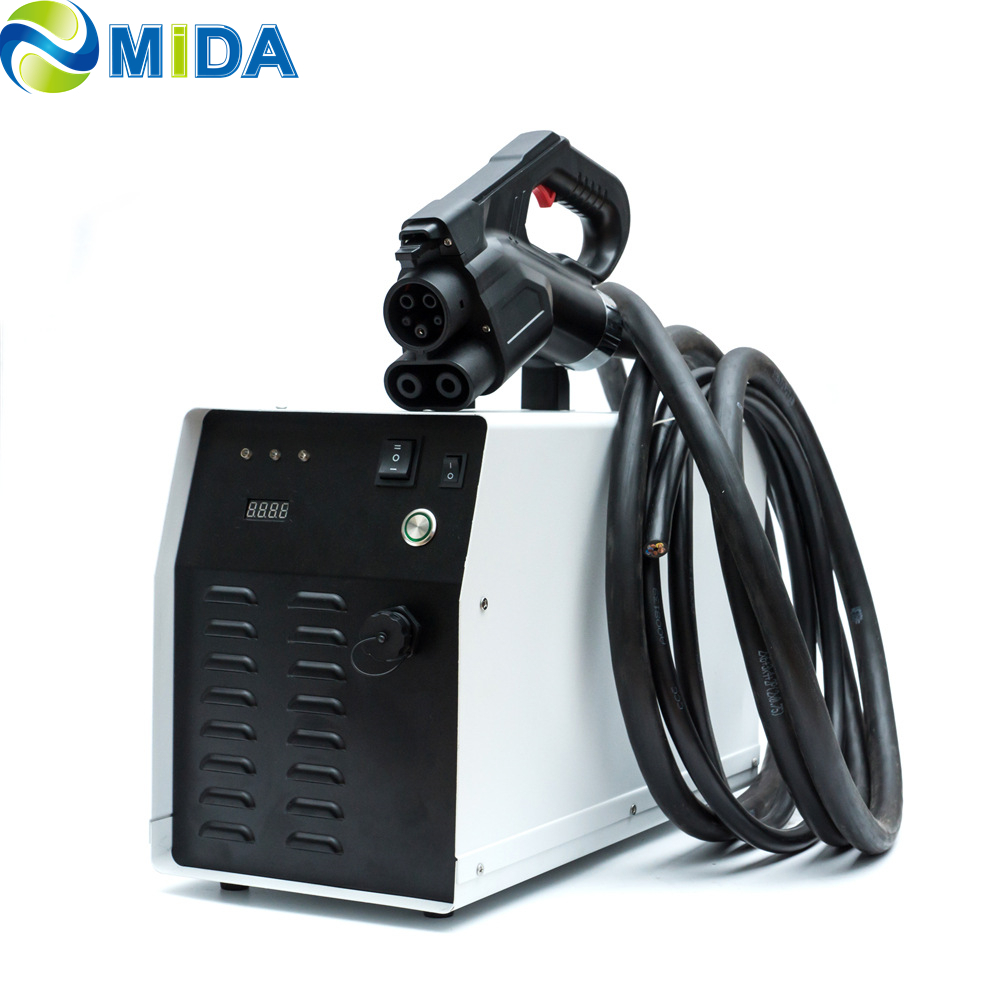

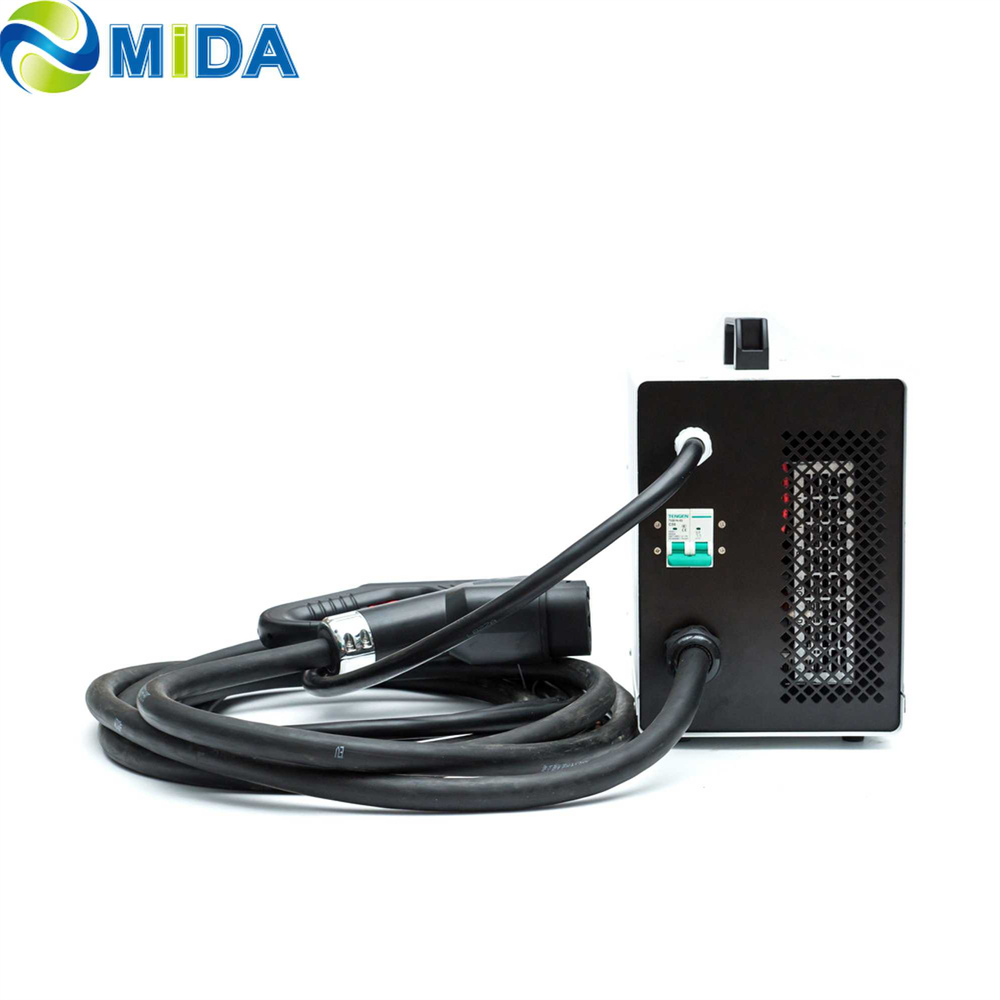

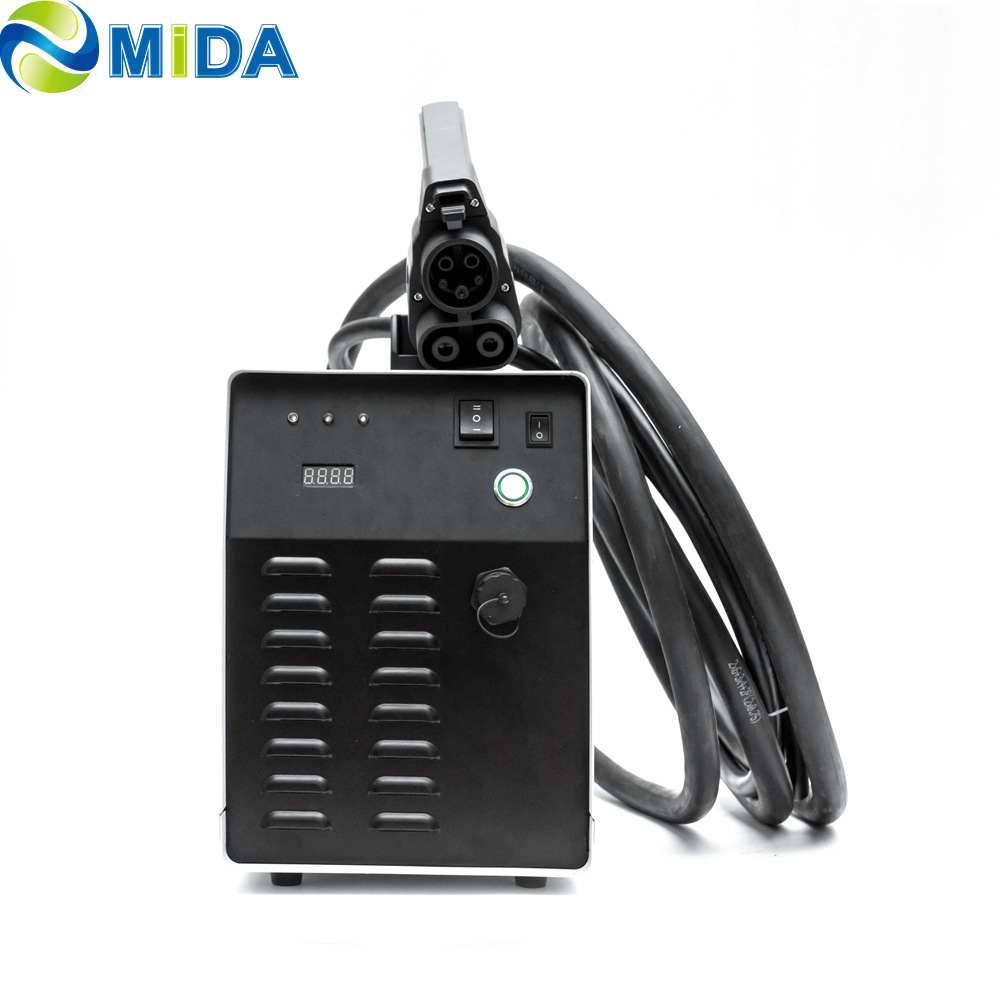

Product Pictures
Product Features
- ✔ Small size and compact design, easy for portable
- ✔ Supporting CCS and CHAdeMO connector
- ✔ Certification: CE/IEC/ROHS
- ✔ Protection Degree: IP54
- ✔ Open door design for convenient power module replacement
Specification
| AC Input |
1. Input Rating: 380Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) |
| 3. Max. Input Current: 100A |
| 4. Efficiency: 95% |
| DC Output |
1. Output Voltage Range: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T) |
| 2. Max. Output Power: 7KW |
| 3. Max. Output Current: 150A@400V, 120A@500V, 80A@750V |
| User Interface |
1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop |
| 3. Interface: USB, RJ45 |
| Packing |
1. Dimension: 690*680*300mm |
| 2. Weight: 20KGS |
| Environment |
1. Operating Temperature: -20°C ~ +50°C (derating above +50°C) |
| 2. Humidity: 5% ~ 90% RH, non-condensing |
| 3. Altitude: 2000m |
| 4. IP Level: IP23 |
| Regulation |
1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS |
| 3. Charging protocol: CHAdeMO 2.0/DIN 70121/ISO15118/IEC61851-23 |
Service & Support
1) Warranty
12 months warranty period for all components.
2) Trade Assurance
Safe deal guaranteed for money, quality, and service.
3) Pre-sales Service
Professional advice for generator set choice, configuration, and investment amount.
4) Production Tracking
Keep tracking the progress of production to know how products are produced.
5) Custom Design
Support for customized design, samples, and packing according to client requirements.
6) After-sales Service
Free instructions for installation and troubleshooting; free parts available within warranty.
Frequently Asked Questions
Q1: Which EV connectors does this portable charger support?
A1: This portable quick charger supports both CCS and CHAdeMO connectors by simply replacing the cable.
Q2: How can I update the charger's firmware?
A2: The charger is equipped with a USB port specifically for firmware updates, ensuring your device stays current with the latest standards.
Q3: Is this charger suitable for outdoor or rural use?
A3: Yes, its compact and portable design makes it perfect for road trips through rural or industrial areas, acting as a primary power source for EV travelers.
Q4: What is the warranty and after-sales support policy?
A4: We provide a 12-month warranty. After sales, we offer free instructions for installation and troubleshooting, with free parts available during the warranty period.
Q5: Can I request a customized design for my order?
A5: Absolutely. We support customized designs, samples, and specialized packing based on specific client requirements.
Q6: What charging protocols are compatible with this device?
A6: The charger supports multiple protocols, including CHAdeMO 2.0, DIN 70121, ISO15118, and IEC61851-23.
