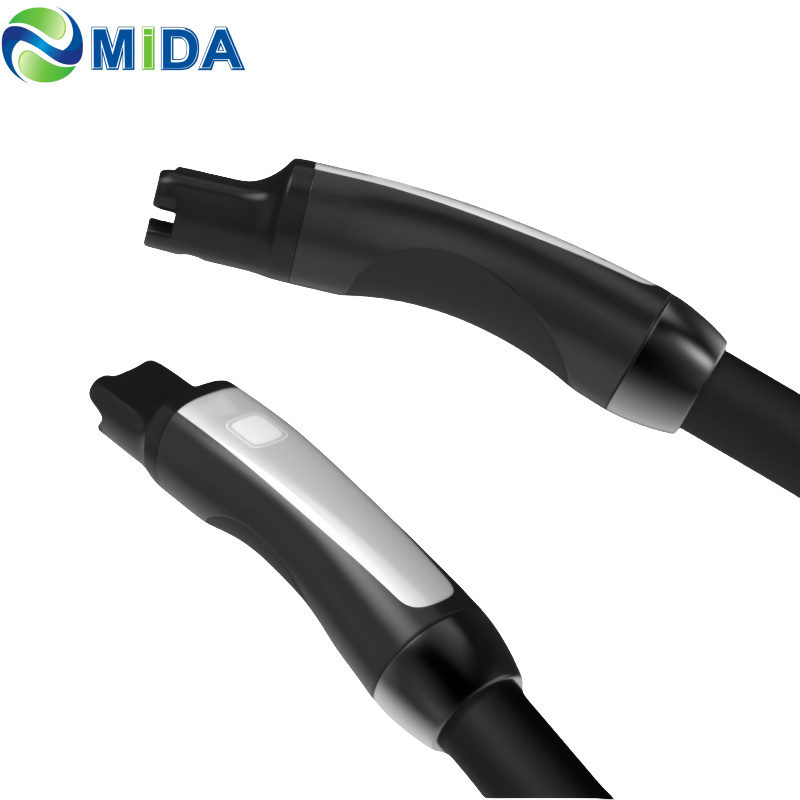

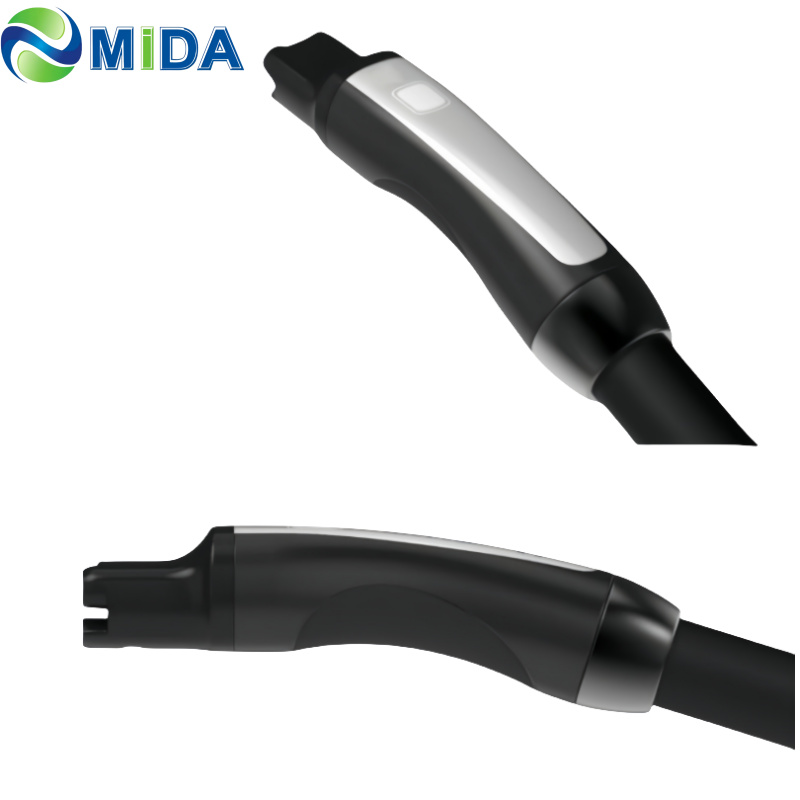

▶ 1. The 80A NACS connector has a single button located on the top center of the handle. When the button is depressed, a UHF signal is emitted. When the connector is locked in place, the signal commands the vehicle to retract the latch holding the connector in place. When the connector is not locked in place, the signal commands the nearby vehicle to open the door covering the inlet.
▶ 2. If charge point operators want to offer charging for new Ford and GM EVs, they’ll need to convert some of their CCS1 charger connectors to NACS. DC fast chargers like Tritium’s PKM150 will be able to accommodate 80A NACS connectors in the near future.
▶ 3. Tesla Gun 80A Tesla NACS Connector, 800A Tesla NACS Plug.
| Features | 1. Meet NACS standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP67 | |
| 4. Max charging power: 125kW | |
| Mechanical Properties | 1. Mechanical life: no-load plug in/pull out > 10000 times |
| 2. Impact of external force: can afford 1m drop and 2t vehicle run over pressure | |
| Electrical Performance | 1. DC input: 80A 500V DC MAX |
| 2. Insulation resistance: > 2000MΩ (DC1000V) | |
| 3. UV Resistance: F1 per UL 746C | |
| 4. Rated Drop Resistance: 100 drops | |
| 5. Maximum Elevation: 3000 m | |
| Applied Materials | 1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| 2. Pin: Copper alloy, silver + thermoplastic on the top | |
| Environmental | 1. Operating temperature: -40°C ~ +50°C |

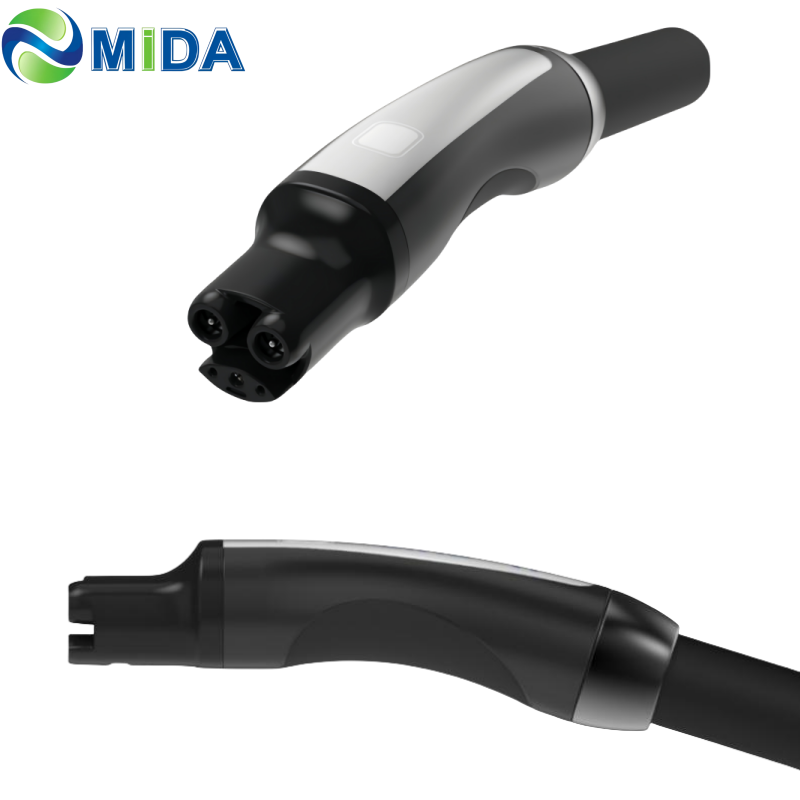

The TESLA Gun is an EV connector complies with the standard of NACS. The NACS connector is used with Tesla superchargers, which currently charge at a rate of up to 125kW.
This technology can make the resistance of the EV tend to zero during the charging process, and reduce the phenomenon of heating up during the DC charging process.
Available in 80A, 125A, 200A, and 250A. It can be used to charge electric vehicles quickly, thanks to its 1,000-volt DC maximum voltage rating.
These EV Plugs can withstand more than 10,000 times of plugging and unplugging. Ensure the safety of long-term power supply, solid and durable.
Protection against overvoltage and overcurrent. Includes short circuit protection, ground fault detection, and temperature monitoring.
Supports simple LOGO customization and also supports customization of the entire function and appearance with professional technical support.
Designed to handle high currents, offering exceptional power ratings of 80A to 250A. This outstanding capacity ensures ultra-fast DC charging speeds significantly reducing the time spent at charging stations. The plug is compatible with all TESLA EV models, compact electric cars, SUVs, heavy trucks, or commercial vehicles.
Ultrasonic welding technology is used between the conductive terminal and the cable, making the contact resistance tend to zero. The temperature rise is lower during use and the service life of the product is extended. Built-in temperature sensors make the charging process even safer.
