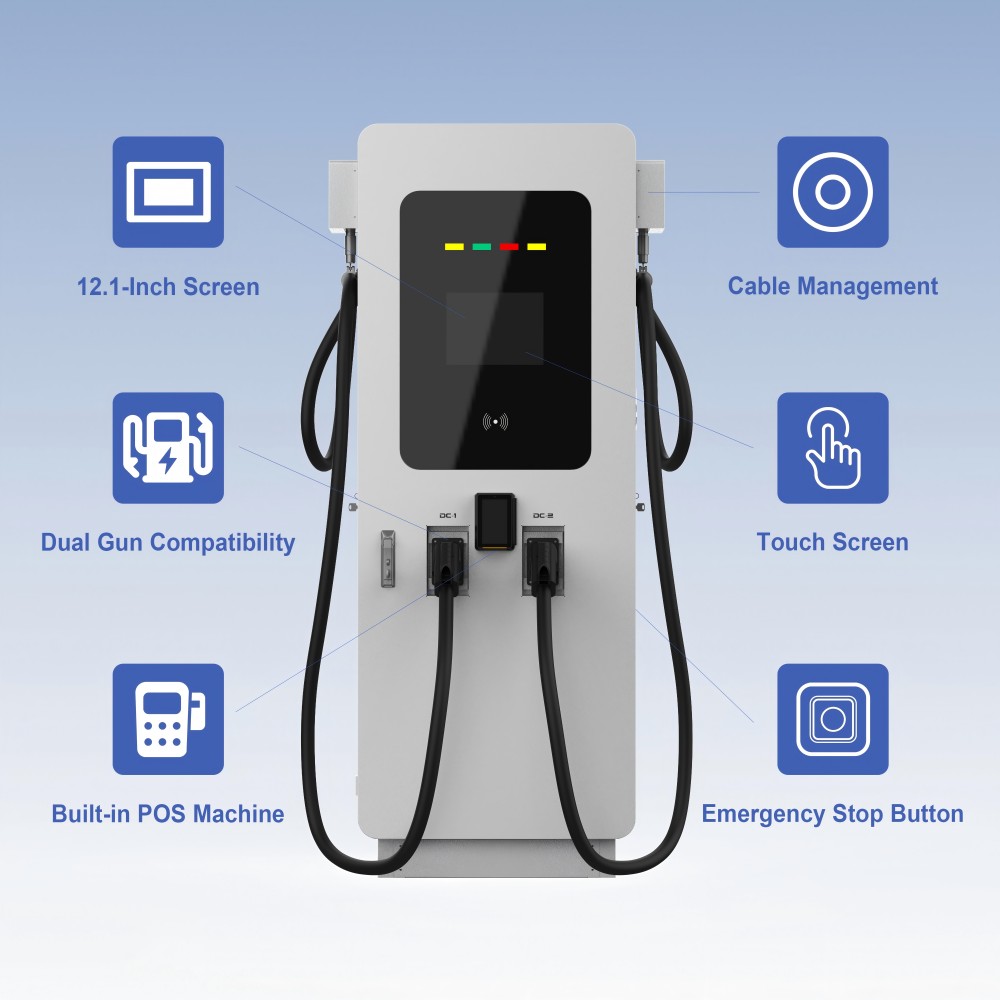

Simultaneously charging up to 3 EVs
| Item | Power DC 60kW; AC 22kW/44kW | DC 90kW; AC 22kW/44kW | DC 120kW; AC 22kW/44kW |
|---|---|---|---|
| Input | Input Voltage | 3-phase 400V ±15% AC | |
| Input Voltage Type | TN-S (Three Phase Five Wire) | ||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||

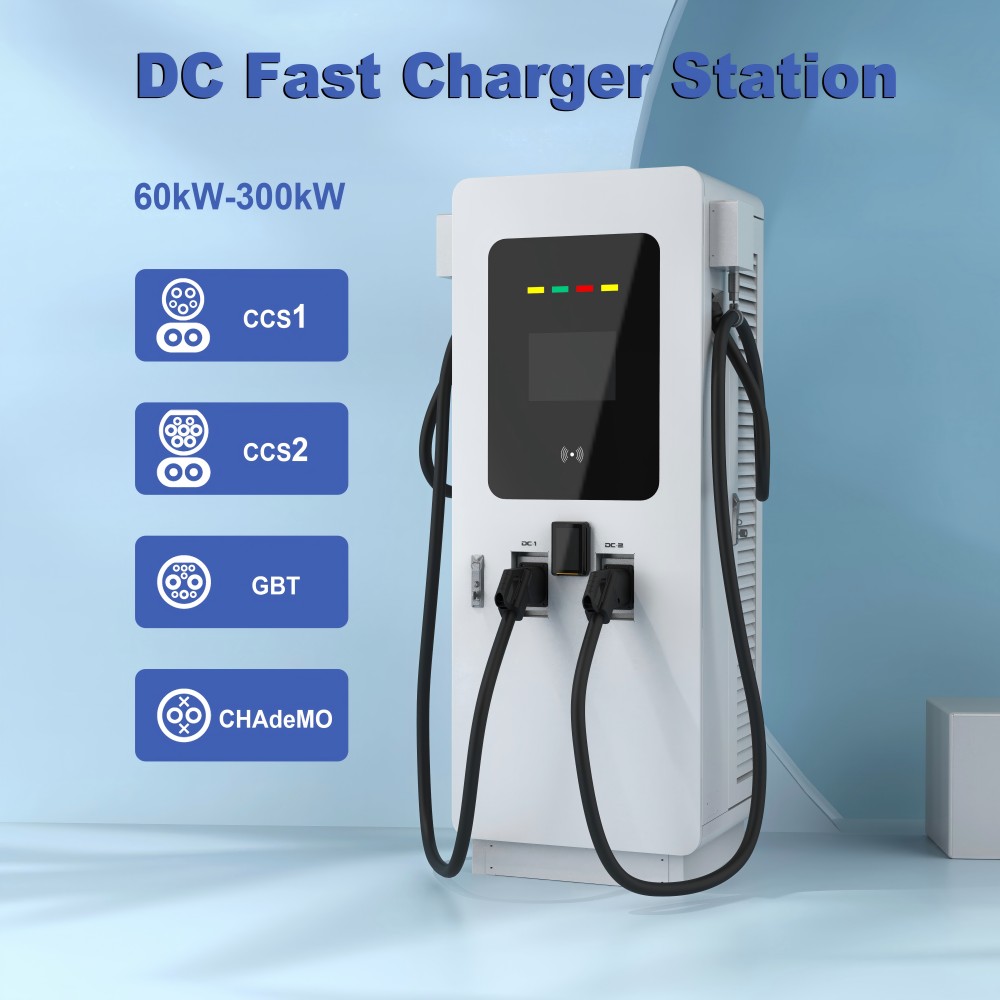

| Output | Rated Voltage | DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V | |
| Max. Output Current | DC - CHAdeMO 125A; CCS 200A; GBT 250A; | AC - Type-2 63A; GBT 32A | |
| Interface | Display | 8'' LCD Touchscreen | |
| Language | Chinese, English, French, German, Spanish, Russian, etc. | ||

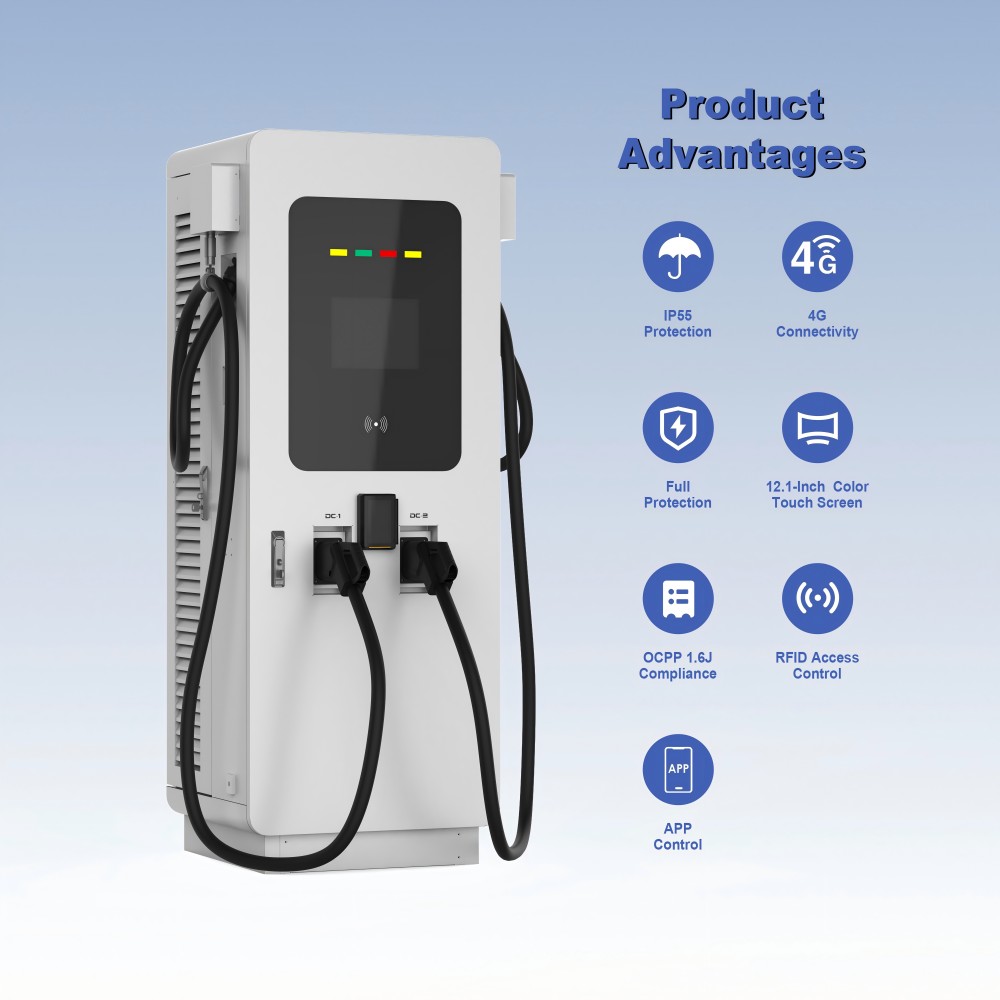

| Payment | Mobile APP/RFID/POS | ||
| Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
| Protocols | OCPP 1.6J or OCPP 2.0 | ||
| Environment | Working Temp. | -30°C ~ +55°C | |
| Storage Temp. | -35°C ~ +55°C | ||
| Operating Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension | 750mm * 640mm * 1850mm | |
| Cable Count | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | CE / IEC 61851-1 / IEC 61851-23 / IEC 61851-21-2 | |
