| Electrical Parameter | 32A Max | 40A 50A Max |
| One phase input: nominal voltage 1×230VAC 50-60 Hz | ||
| 7 kW at 1x230VAC | 11 kW 12KW at 1x 230 VAC | |
| Input Cord | Hard wired by licensed electrician | |
| Output Cable & Connector | 16.4FT/5.0 m cable (26.2FI/8.0m optional) | |
| IEC62196-2 standard compliance | ||
| Smart Grid Connectivity | Built-in Wi-Fi (Optional)(802.11 b/g/n/2.4GHz)/Bluetooth Connectivity | |
| Firmware | Over-the-air (OTA) upgradeable firmware | |
| Environmental Parameter | Dynamic LED lights show charging status: standby, charging in progress, fault indicator, network connectivity | |

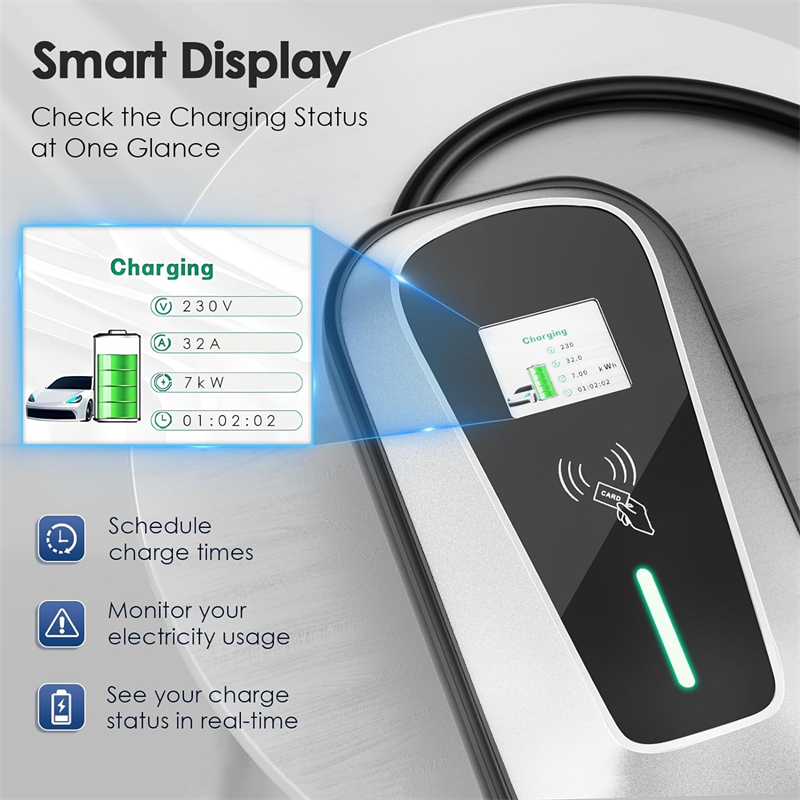

| 4.3" LCD Screen | ||

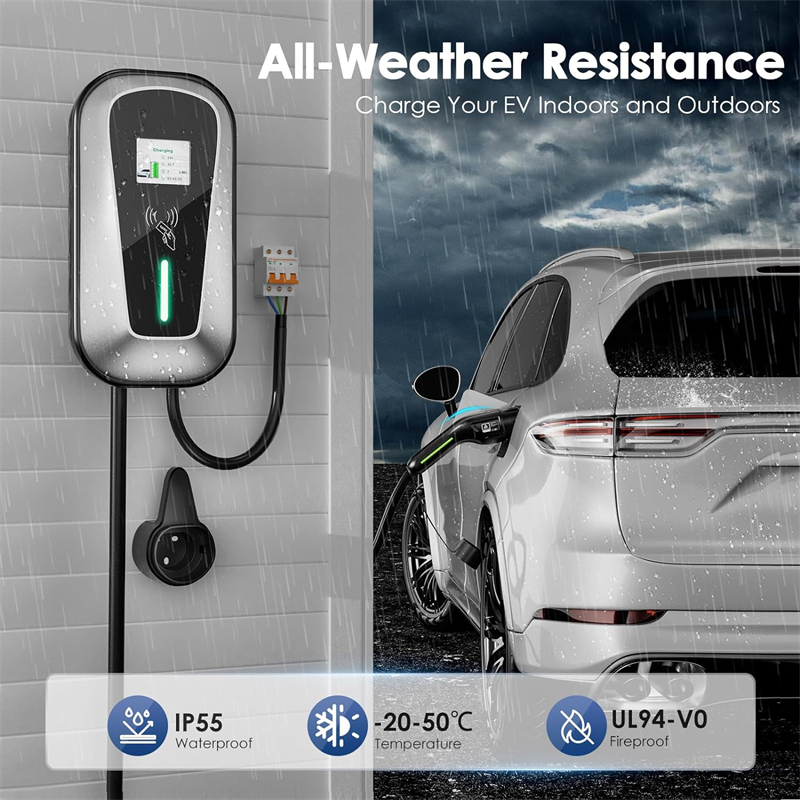

| Protection Class IP65: Weatherproof, dust-tight | ||
| IK08: Resistant polycarbonate case | ||
| Quick-release wall mounting bracket included | ||
| Operating Temperature: -22°F to 122°F (-30°C to 50°C) | ||
| Dimension | Main enclosure: 9.7in x 12.8in x 3.8in (300mm x 160mm x 120mm) | |
| Codes & Standards | IEC 61851-1 / IEC 61851-21-2 / IEC 62196-2 compliance, OCPP 1.6 | |
| Certification | FCC ETL CE compliance | |
| Energy Management | Home power balancing (Optional) | |
| RFID | Optional | |
| 4G Module | Optional | |
| Socket | Optional | |
| Warranty | 2 years limited product warranty | |
This charger is perfect for homeowners who own a single electric vehicle and want a reliable and convenient way to charge it at home. Its compact design and high charging power make it an excellent choice for home use.
This charger can also be installed at workplaces, such as offices or factories, to provide employees with a convenient way to charge their electric vehicles while they work.
This charger can be installed in public areas, such as on the side of a road or in a public parking lot, to provide electric vehicle owners with a convenient charging option while they are out and about.
Businesses that operate a fleet of electric vehicles can also benefit from this charger. With its high charging power of 7kw 11KW 12KW, it can quickly charge an electric vehicle, helping to keep your fleet on the road and productive.
Overall, this single gun smart AC EV wall box charger is a versatile and reliable charging solution that can be used in various applications, making it an excellent investment for electric vehicle owners and businesses alike.
AC EV charger is an artwork designed to improve the charging experience with the breakthrough of the traditional appearance.
The LED light shows charging status by color changes and it adopts breathing light to avoid direct glare at human eyes.
User friendly design, easy for installation, maintenance and use.
Uses J1772/Type 2 connector that can charge any EVs on the market.
