| Item |
DC 60kW |
DC 90kW |
DC 120kW |
| Input |
Input Voltage |
3-phase 400V ±15% AC |
| Input Voltage Type |
TN-S (Three Phase Five Wire) |
| Working Frequency |
45~65Hz |
| Power Factor |
≥0.99 |
| Efficiency |
≥94% |
| Output |
Rated Voltage |
DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V |
| Max. Output Current |
DC - CHAdeMO 125A; CCS 200A; GBT 250A; |
AC - Type-2 63A; GBT 32A |
| Interface |
Display |
8'' LCD Touchscreen |
| Language |
Chinese, English, French, German, Spanish, Russian, etc. |
| Payment |
Mobile APP/RFID/POS |
| Communication |
Network Connection |
4G(GSM or CDMA)/Ethernet |
| Communication Protocols |
OCPP1.6J or OCPP2.0 |
| Working Environment |
Working Temperature |
-30°C ~ +55°C |
| Storage Temperature |
-35°C ~ +55°C |
| Operating Humidity |
≤95% Non-Condensing |
| Protection |
IP54 |
| Acoustic Noise |
<60dB |
| Cooling Method |
Forced Air-Cooling |
| Mechanical |
Dimension(W x D x H) |
700*1900*650mm |
| No. of Charging Cable |
Single |
Dual |
| Cable Length |
5m or 7m |
| Regulation |
Certificate |
CE/IEC61851-1/IEC61851-23/IEC61851-21-2 |
Multi-standard Charging
⚡
Supports CCS, CHAdeMO, GB/T, and AC connectors. Capable of charging up to 3 vehicles at the same time.
🔋
Triple outlet ports: two DC cables, one AC cable, and one additional 3.6kW schuko output for versatile usage.
User Interaction & Payment
📱
8’’ LCD touch screen with a multi-language interface for an intuitive user experience.
💳
Secure authentication and payment options available through RFID cards, mobile Apps, or POS terminals.
🔌
Supports optional Plug & Charge for seamless vehicle identification and charging.

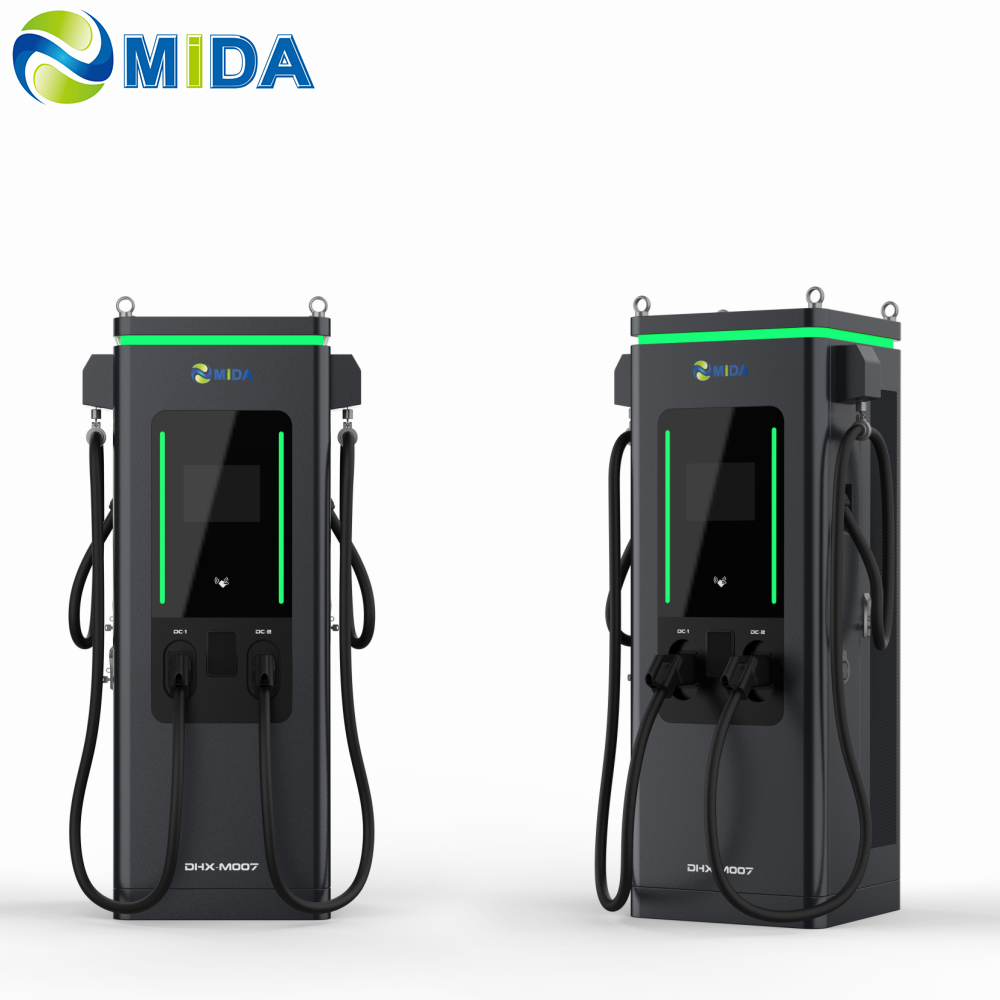

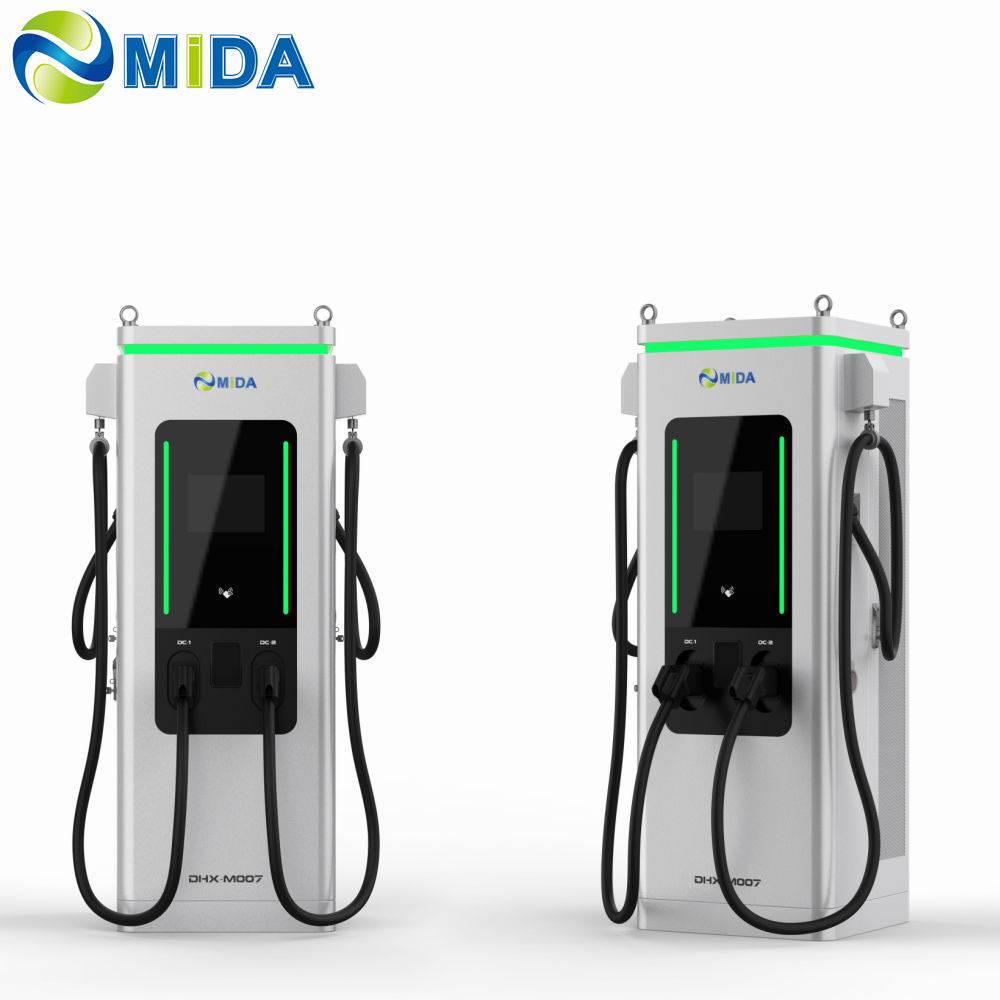

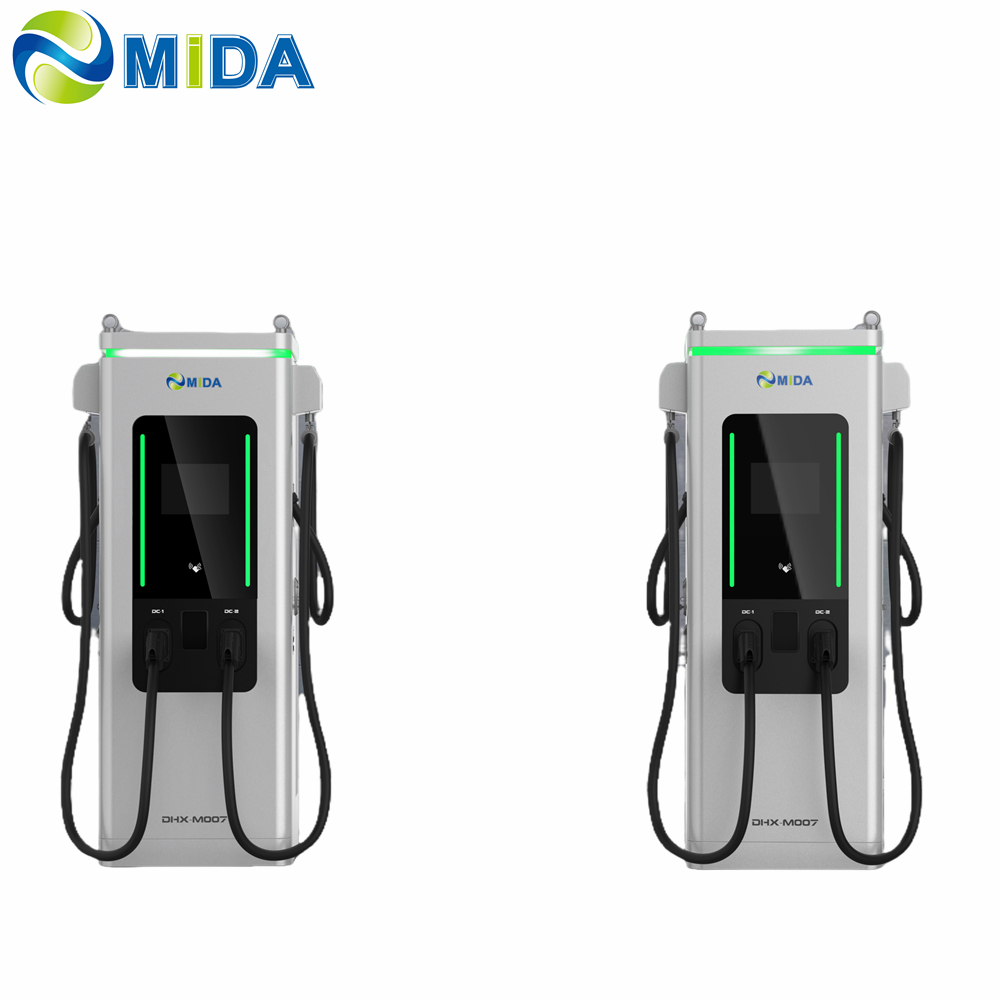

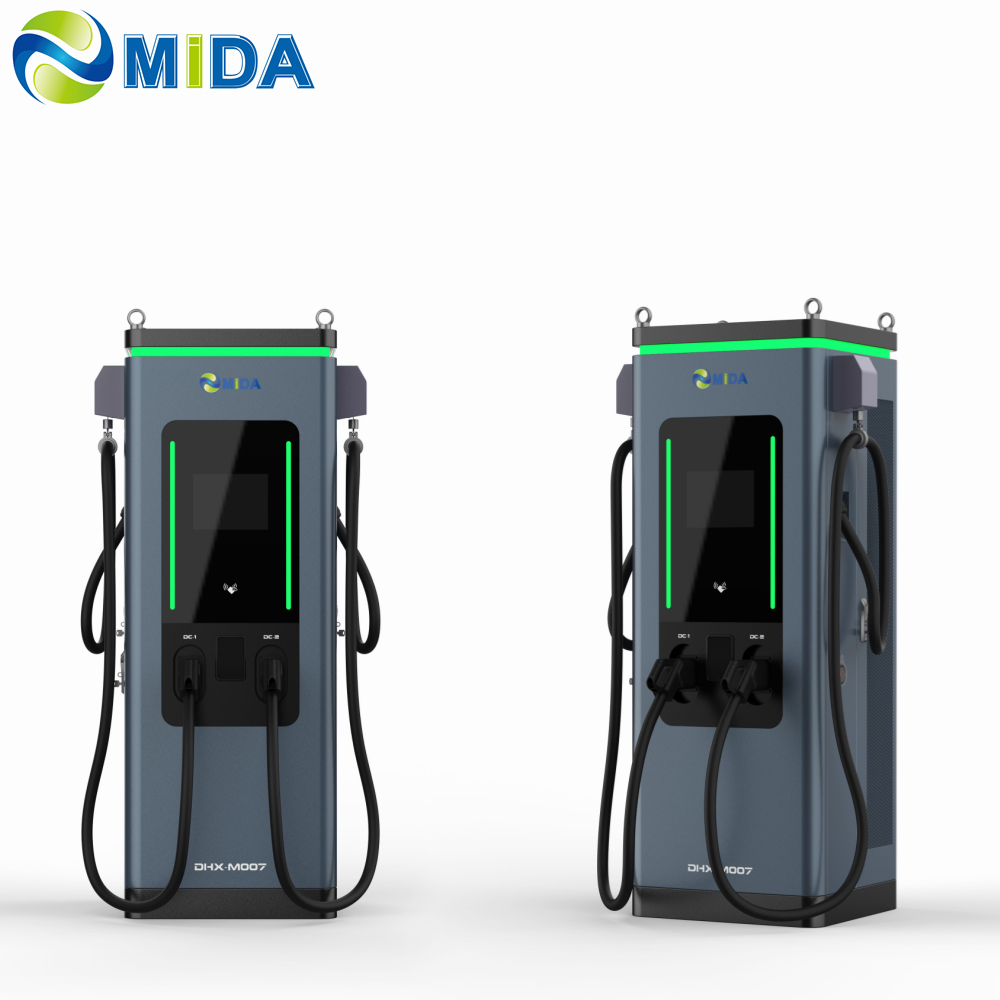

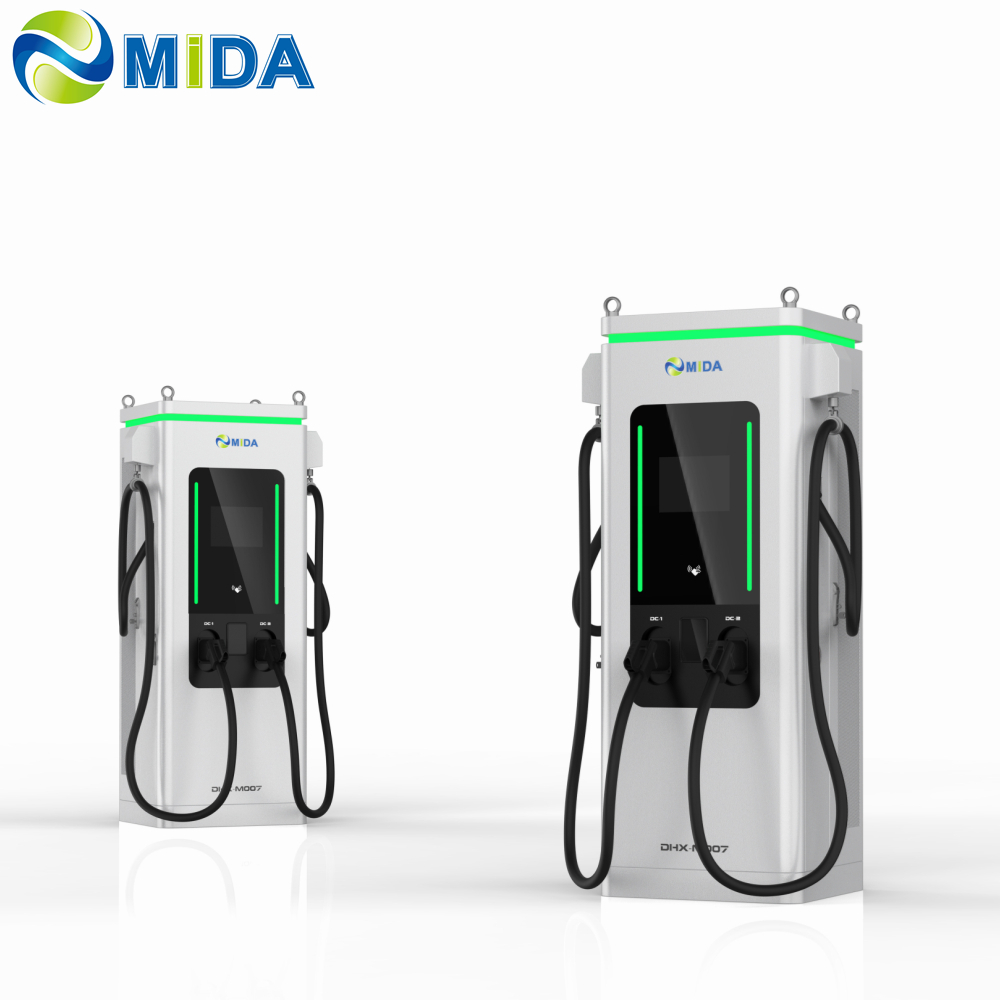

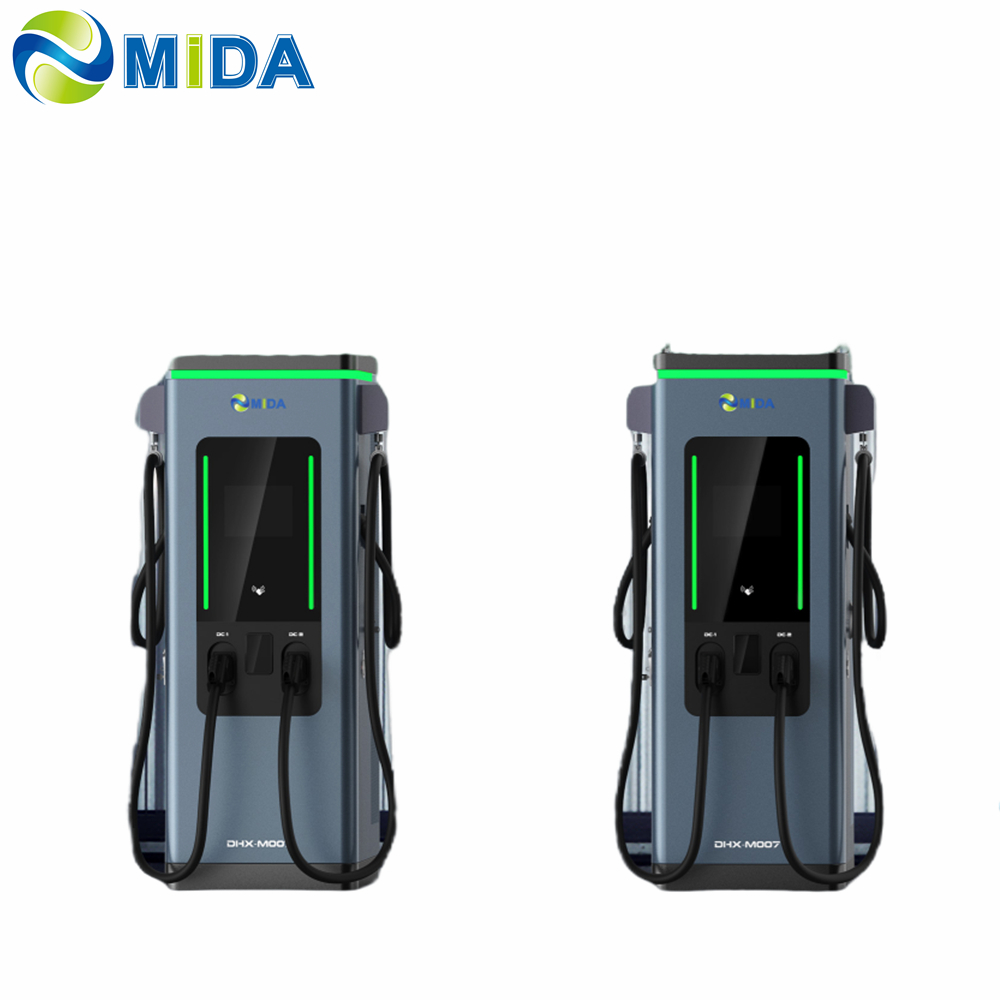

Multi-standard DC EV Charging Station
Simultaneously charging up to 3 EVs with high efficiency and reliability.
- ✓ Flexible configurations: 60kW, 80kW, 100kW, 120kW, 160kW, 180kW, and 240kW options.
- ✓ Full support for CCS, CHAdeMO, GB/T, and Type 2 AC standards.
- ✓ Global connectivity: Ethernet, Wi-Fi, and 4G connection capabilities.
- ✓ Smart charging: Supports OCPP 1.6J & OCPP 2.0 with dynamic load balancing.
Performance & Charging Speeds
The 60kW, 120kW, and 180kW DC EV charging stations are designed for high-power ultra-fast charging. Featuring a floor-standing design, these units are compatible with global protocols and suitable for diverse infrastructure needs.
How fast can they charge?
60kW DC Fast Charger: Can fully charge a 60kWh battery in approximately one hour. Most modern EVs can reach an 80% charge in about 35-50 minutes.
120kW DC Fast Charger: Can charge an average EV to 80% in about 30 minutes. Smaller EVs may reach full charge in approximately 11 minutes.
180kW DC Fast Charger: High-speed output allows an electric vehicle to reach 80% charge in just 20 to 30 minutes, depending on the vehicle's maximum intake rate.
Frequently Asked Questions
1. Which charging standards are supported by this station?
The station is multi-standard and supports CCS, CHAdeMO, GB/T, and Type 2 AC connectors, making it compatible with almost all electric vehicles globally.
2. How many vehicles can be charged at the same time?
These units support simultaneous charging for up to 3 vehicles using two DC cables and one AC cable.
3. What payment methods can users use?
Users can authenticate and pay through a mobile APP, RFID cards, or POS systems. "Plug & Charge" is also available as an optional feature.
4. Is the charging station suitable for outdoor installation?
Yes, the station features an IP54 protection rating and can operate in temperatures ranging from -30°C to +55°C, making it durable for outdoor environments.
5. Can the charging power be monitored remotely?
Yes, the station supports OCPP 1.6J and OCPP 2.0 protocols via 4G, Ethernet, or Wi-Fi, allowing for remote monitoring and management.
6. Does it support dynamic load balancing?
Yes, the smart charging system supports dynamic load balancing to optimize power distribution across connected vehicles.
