New standards by advanced and patented drive system. The product features an extremely high number of cycles (> 400,000 cycles). The system enables contacting within five seconds and ensures that there is no loss of contact during the loading process.

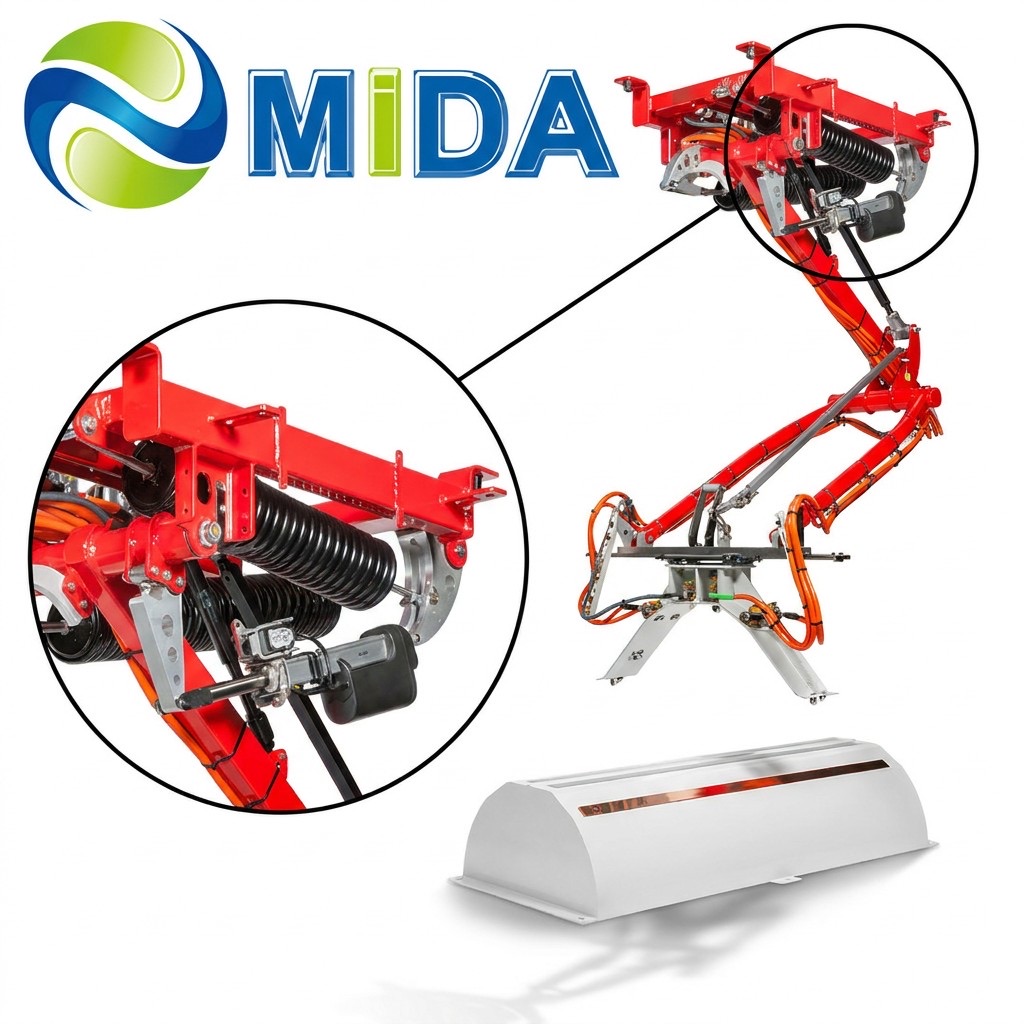

The combination of spring and drive system guarantees a constant contact force over the entire working range of the pantograph during the loading process. A built-in fail-safe function automatically returns the pantograph to the rest position in the event of a power failure or fault.
Electric bus Pantograph Up Main features:
600kW Electric bus pantograph for EV Charger Station
The system offers an ideal electric bus pantograph solution equipped with a roof-mounted pantograph. This allows for charging larger fleets of electric buses overnight (50-150 kW) and during the day (150-600 kW) for opportunity charging.

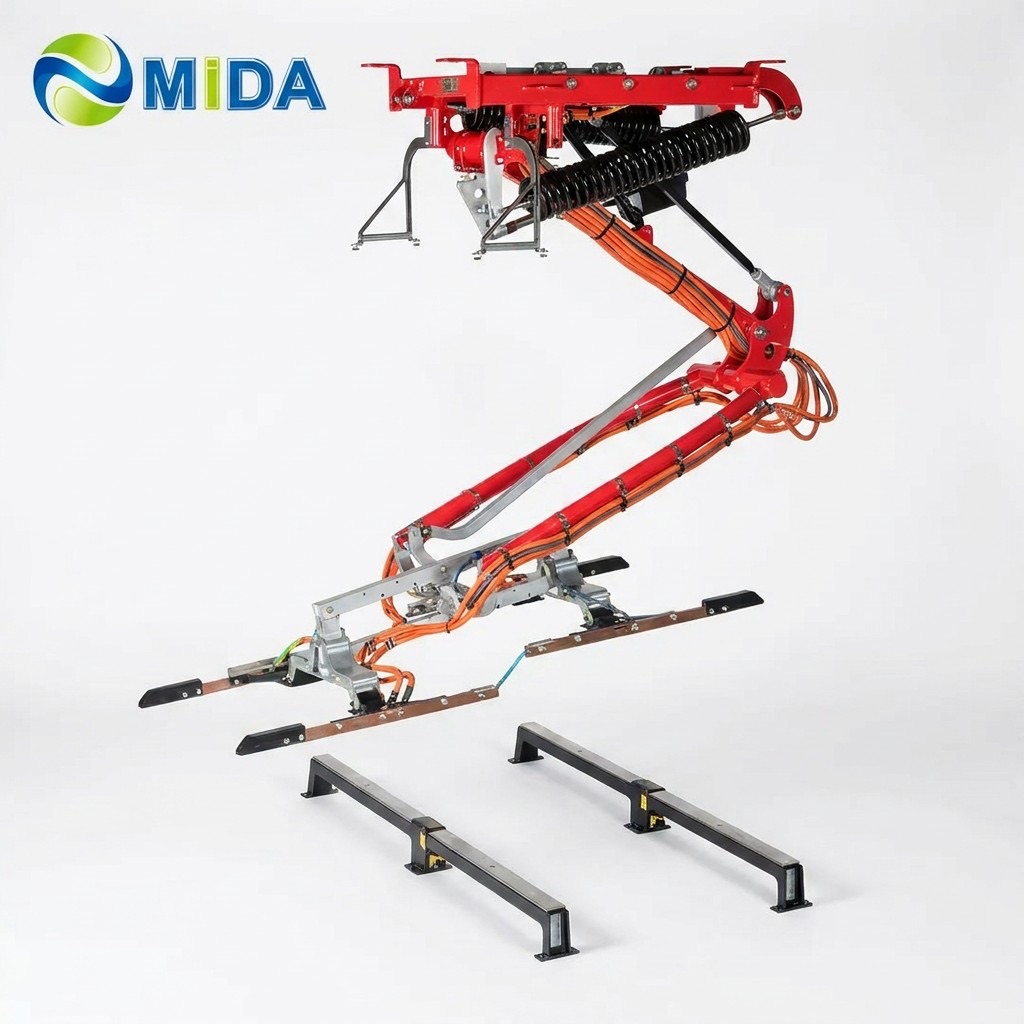

High-Power Inverted Pantograph Charging System:
Smart Charging System is a mature and reliable high-performance conductive charging system designed for buses, trucks, and industrial vehicles. With fast connection speeds and charging capacities up to 1 MW, these systems ensure safe, high-speed charging without human intervention.
The charging element is located in the infrastructure. Perfect for central charging points and confined depot environments.
The system supports scalable power outputs, ranging from 50 kW for overnight depot charging up to 600 kW for high-speed opportunity charging.
The advanced drive system enables secure electrical contact within five seconds, optimizing efficiency for flash or opportunity charging sessions.
The system includes a built-in fail-safe function that automatically returns the pantograph to its rest position if a power failure or fault occurs.
Yes, the system is designed following international standards and undergoes comprehensive interoperability testing to ensure it can charge buses from various manufacturers.
The system is engineered for high-frequency use, featuring a patented drive system tested for an extremely high number of cycles, exceeding 400,000.

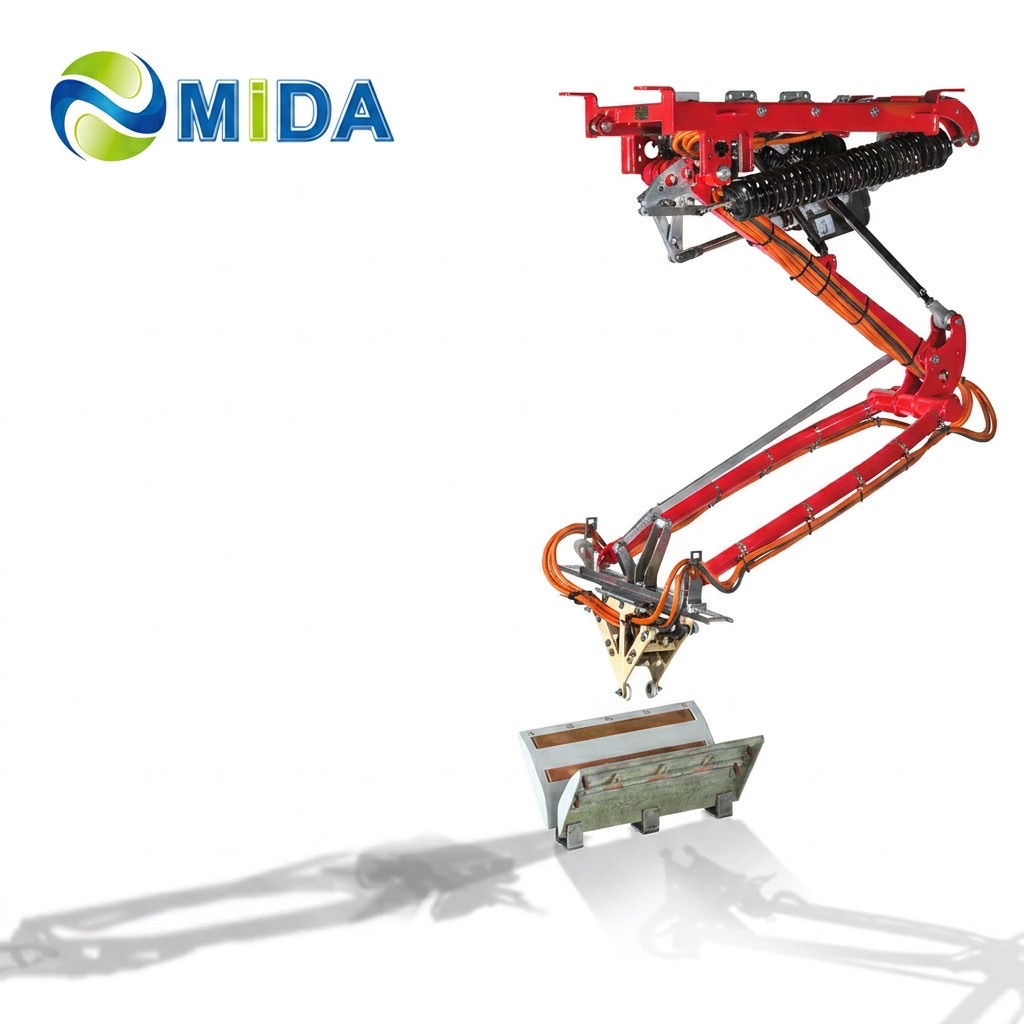

The inverted pantograph (top-down) model provides a significant vertical range of up to 2.3 meters, making it ideal for depots with varying vehicle heights.
