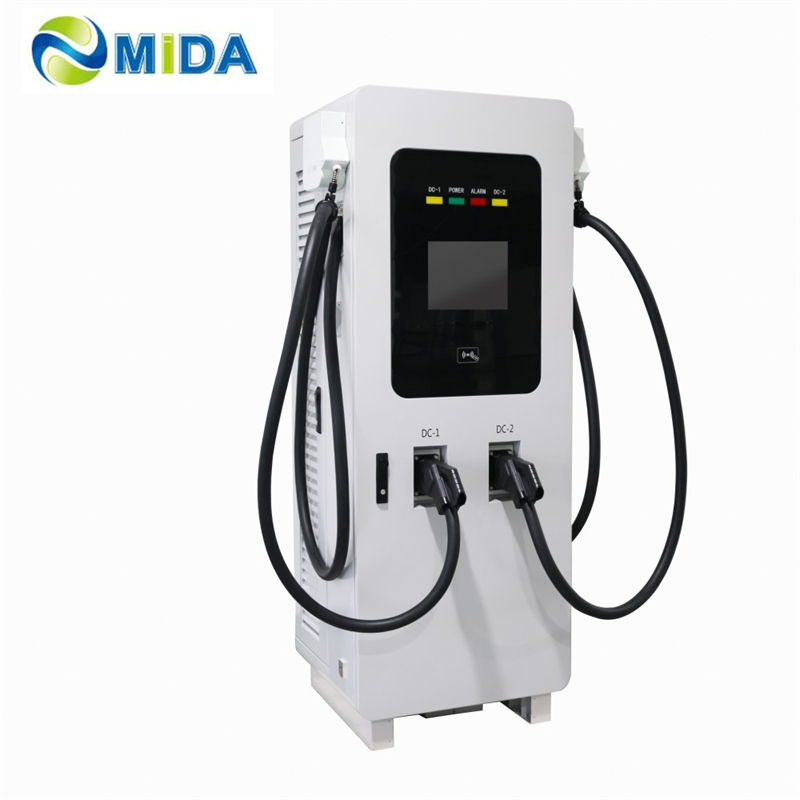

| Item | PowerDC 60kW; AC 22kW/44kW | DC 90kW; AC 22kW/44kW | DC 120kW; AC 22kW/44kW |
|---|---|---|---|
| Input | Input Voltage | 3-phase 400V ±15% AC | |
| Input Voltage Type | TN-S (Three Phase Five Wire) | ||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||
| Output | Rated Voltage | DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V | |
| Max. Output Current | DC - CHAdeMO 125A; CCS 200A; GBT 250A; | AC - Type-2 63A; GBT 32A | |
| Interface | Display | 8'' LCD Touchscreen | |
| Language | Chinese, English, French, German, Spanish, Russian, etc. | ||
| Payment | Mobile APP/RFID/POS | ||
| Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
| Communication Protocols | OCPP1.6J or OCPP2.0 | ||
| Working Environment | Working Temperature | -30°C ~ +55°C | |
| Storage Temperature | -35°C ~ +55°C | ||
| Operating Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension(W x D x H) | 700*1900*650mm | |
| No. of Charging Cable | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | CE/IEC61851-1/IEC61851-23/IEC61851-21-2 | |
Simultaneously charging up to 3 EVs
This station is multi-standard and supports CCS, CHAdeMO, GB/T, and Type 2 AC connectors, allowing compatibility with a wide range of electric vehicles globally.
Yes, it features triple outlet ports (two DC cables, one AC cable, and an optional 3.6kW schuko output) allowing it to charge up to 3 vehicles simultaneously.
We offer highly flexible power configurations to suit different location needs, including 60kW, 80kW, 100kW, 120kW, 160kW, 180kW, and 240kW outputs.
The charging station supports multiple convenient payment and access methods, including Mobile APP, RFID cards, POS terminals, and optional Plug & Charge functionality.
It supports standard OCPP 1.6J and OCPP 2.0 protocols for smart backend integration, and connects via Ethernet, Wi-Fi, or 4G (GSM or CDMA) networks.
Yes, it has an IP54 protection level, is designed to operate in temperatures ranging from -30°C to +55°C, and uses forced air-cooling for reliable outdoor use.
