| Item | 240kW DC Charger | 320kW / 480kW DC Charger | |
| Input | Input Voltage | 3-phase 400V ±15% AC | |
| Input Voltage Type | TN-S (Three Phase Five Wire) | ||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||
| Output | Rated Voltage | DC: CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC: Type-2 400V; GBT 400V | |
| Max. Output Current | DC: CHAdeMO 125A; CCS 200A; GBT 250A | AC: Type-2 63A; GBT 32A | |
| Interface | Display | 8'' LCD Touchscreen | |
| Language | English, French, German, Spanish, Russian, Chinese, etc. | ||
| Payment | Mobile APP / RFID / POS | ||
| Communication | Network Connection | 4G (GSM or CDMA) / Ethernet | |
| Protocols | OCPP 1.6J or OCPP 2.0 | ||
| Environment | Working Temp | -30°C ~ +55°C | |
| Storage Temp | -35°C ~ +55°C | ||
| Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension | 700*1900*650mm | |
| Charging Cable | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | CE / IEC61851-1 / IEC61851-23 / IEC61851-21-2 | |

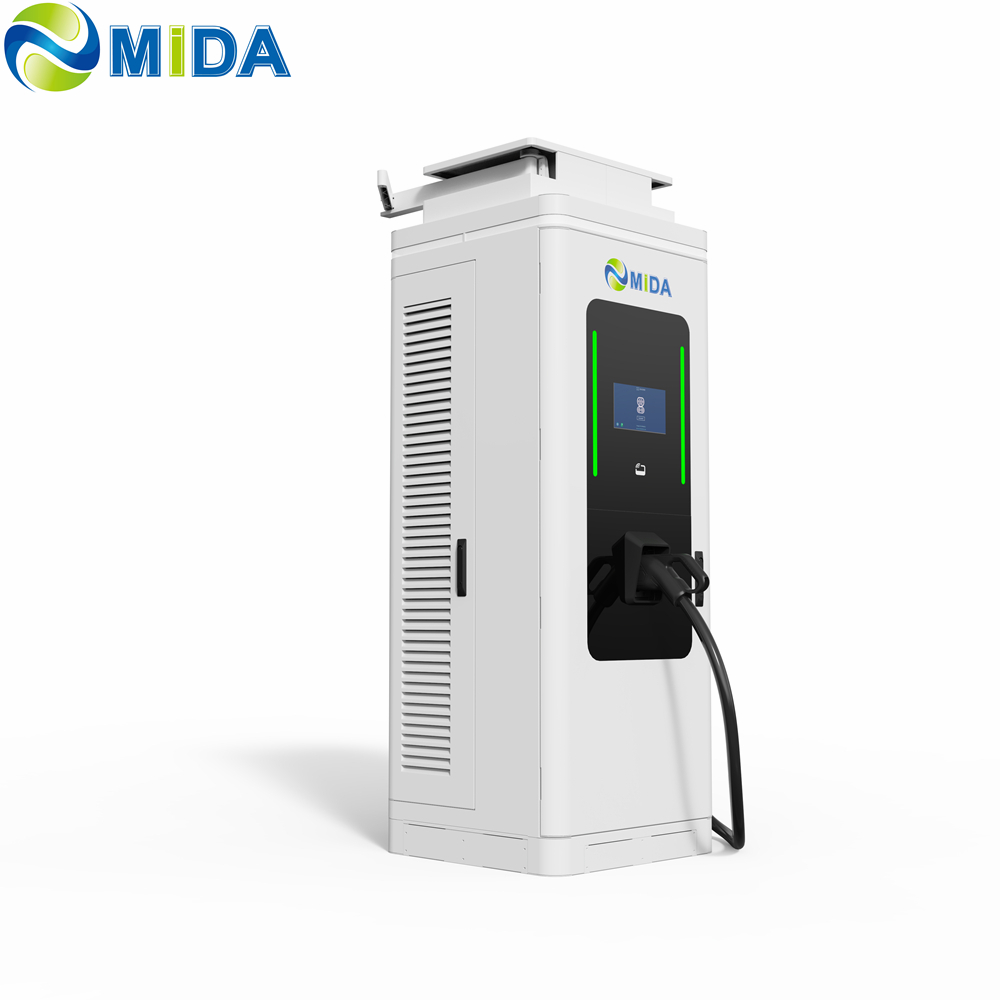

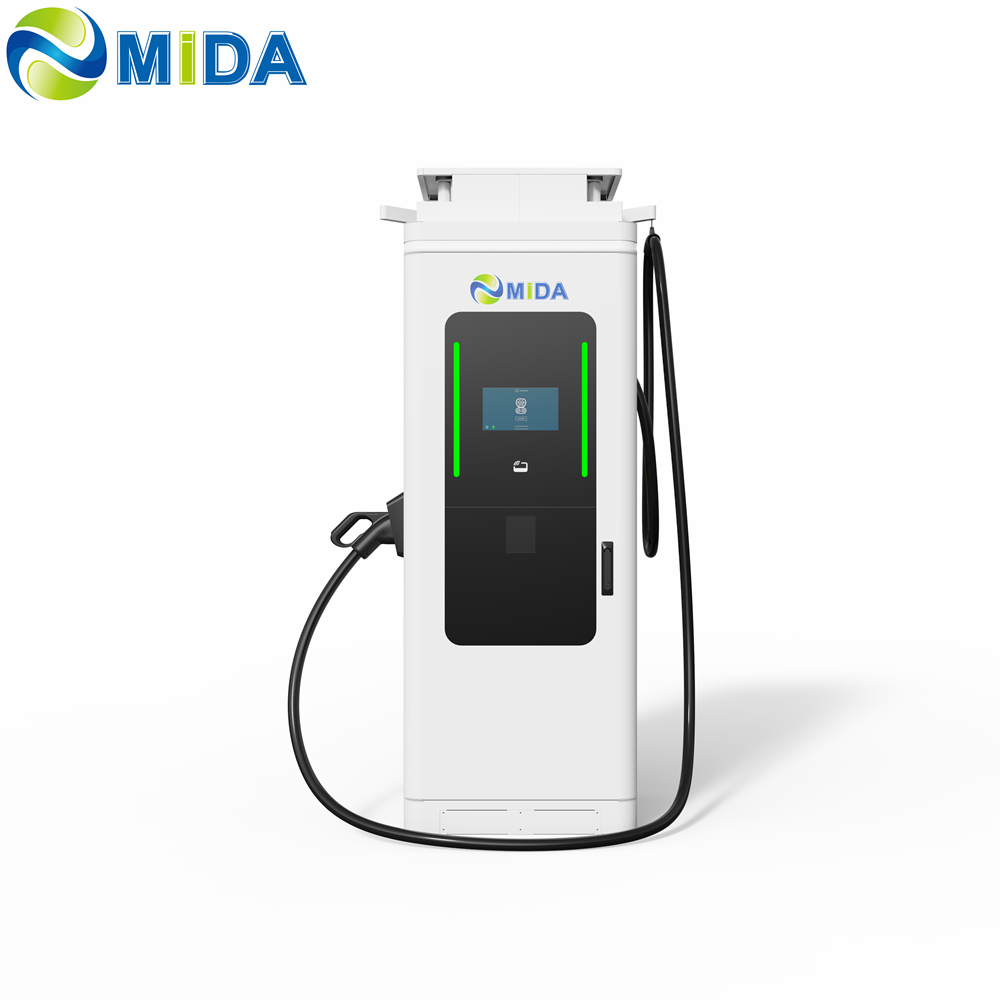

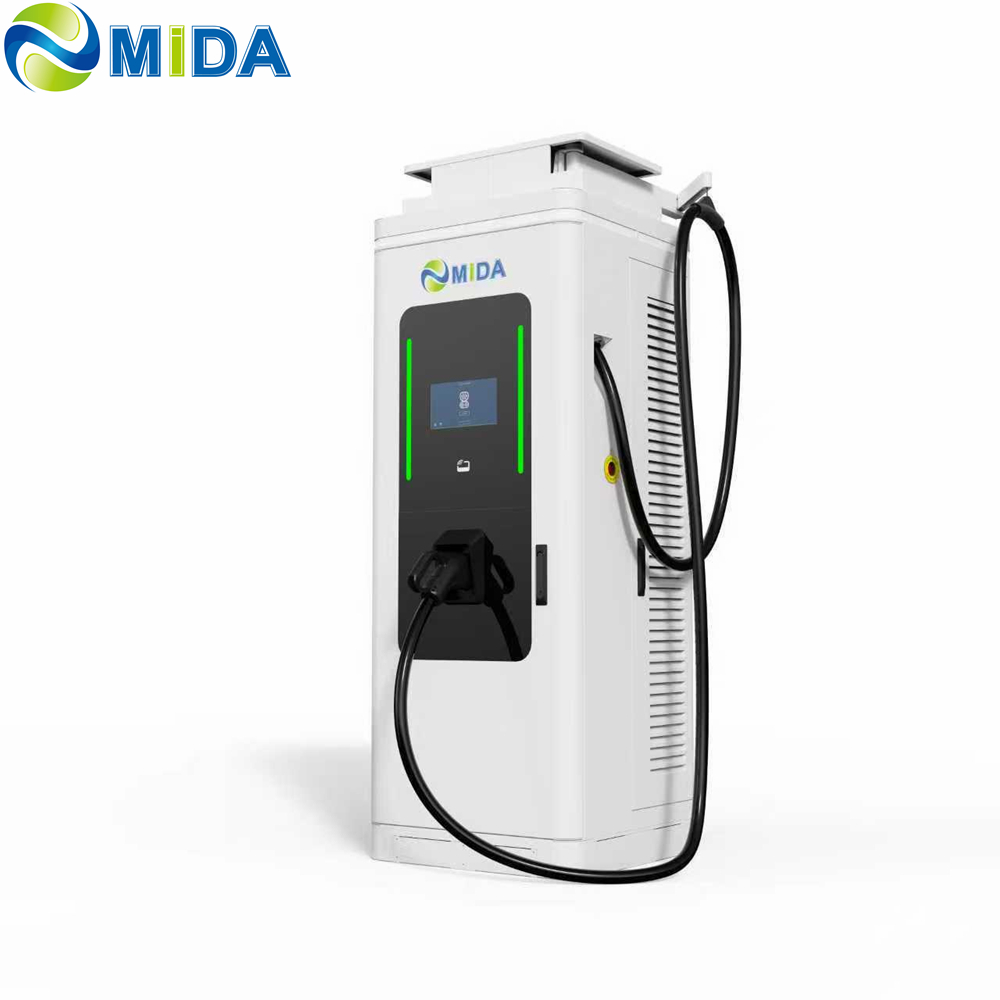

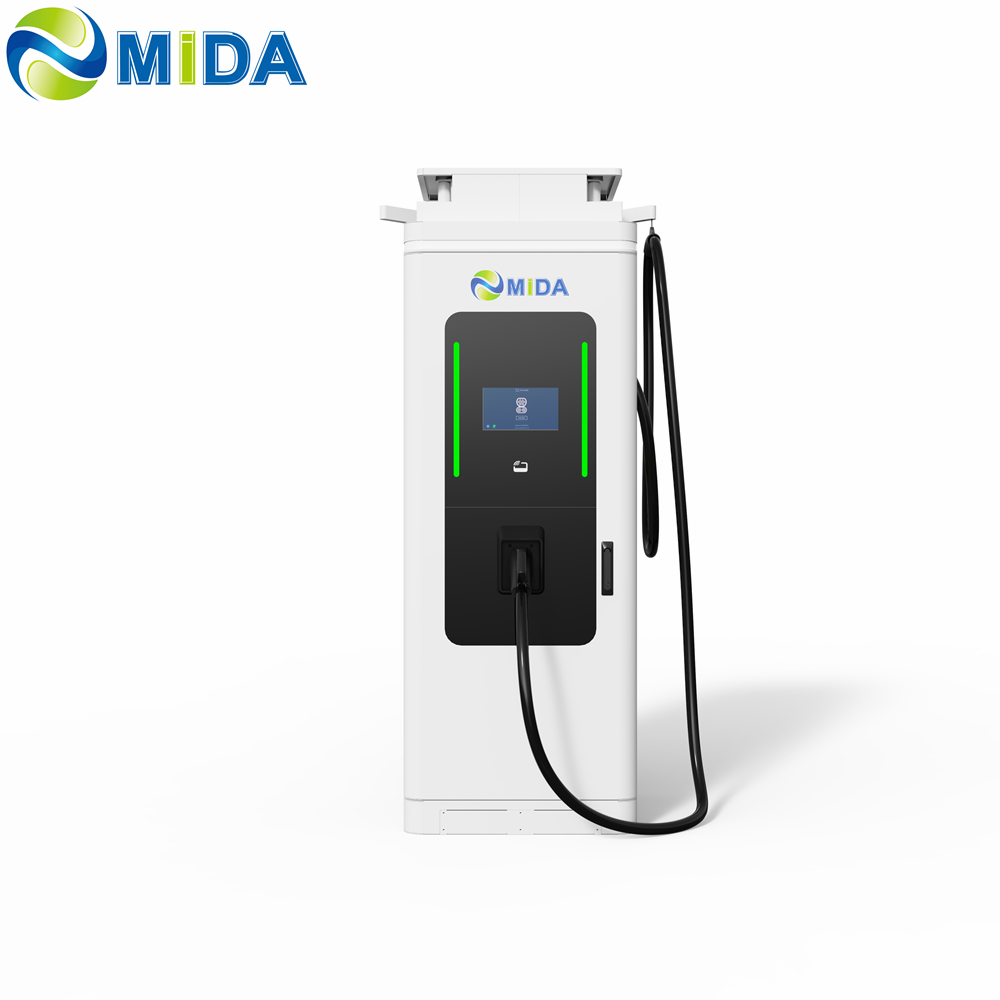

Rapid Charger 200 kW Ultra Charging Station and HPC 300kw EV Charging Station DC Fast Charger Piles. Designed for commercial and public locations to significantly reduce waiting times.
The Integrated DC charger provides a complete solution including charging modules, control, energy metering, and communication.
The 150kW to 200kW Fast Chargers are specifically designed for electric vehicles (EVs) to deliver high power output, significantly reducing charging times compared to Level 2 AC chargers. These units are ideal for public stations, commercial areas, and highway stops. Compatible with CCS and CHAdeMO, they support a wide range of electric vehicles.
High Efficiency: Features a high-efficiency design to minimize energy loss during the charging process.
Wide Application: Ideal for retail stores, fleet parking garages, and public infrastructure where fast turnaround is critical.
