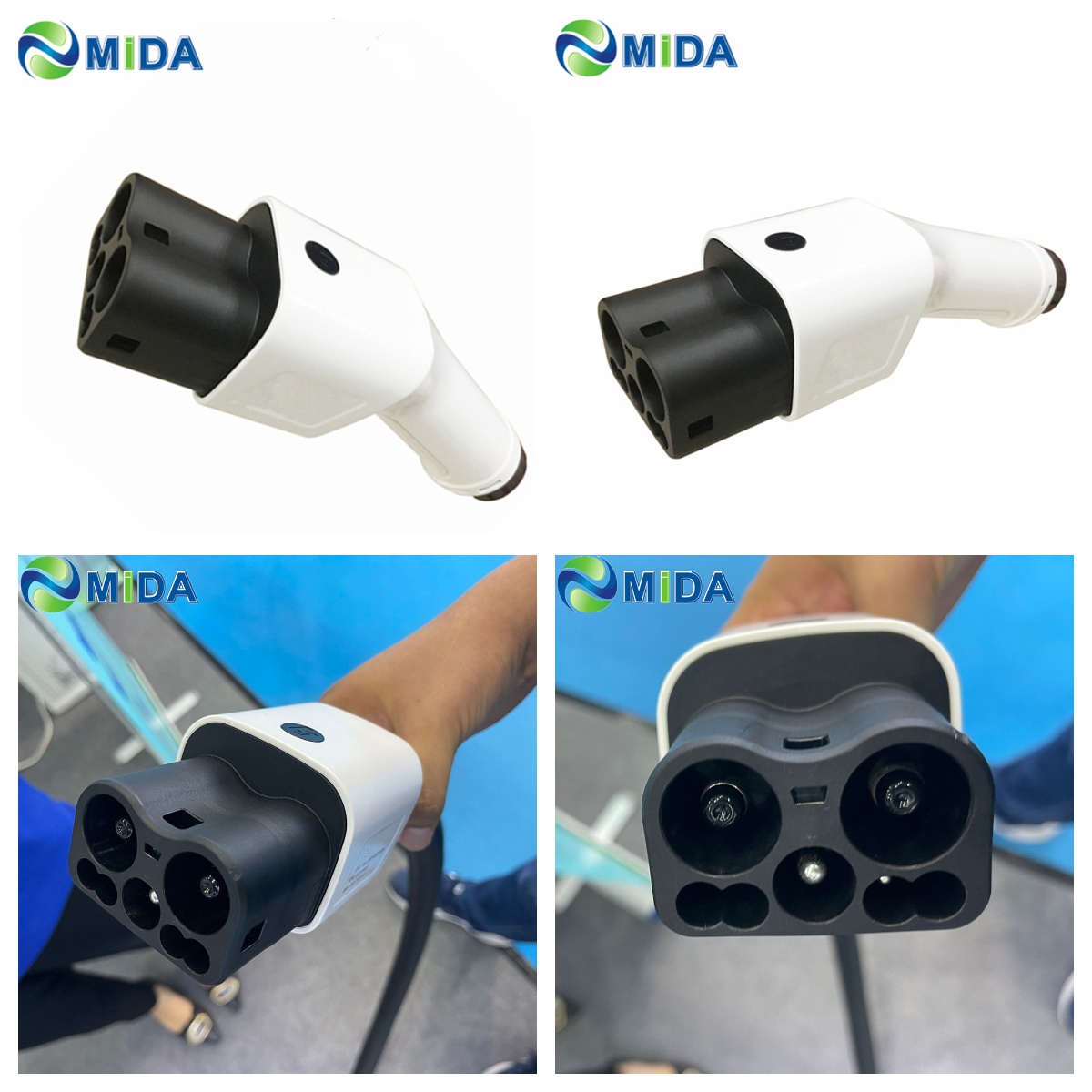

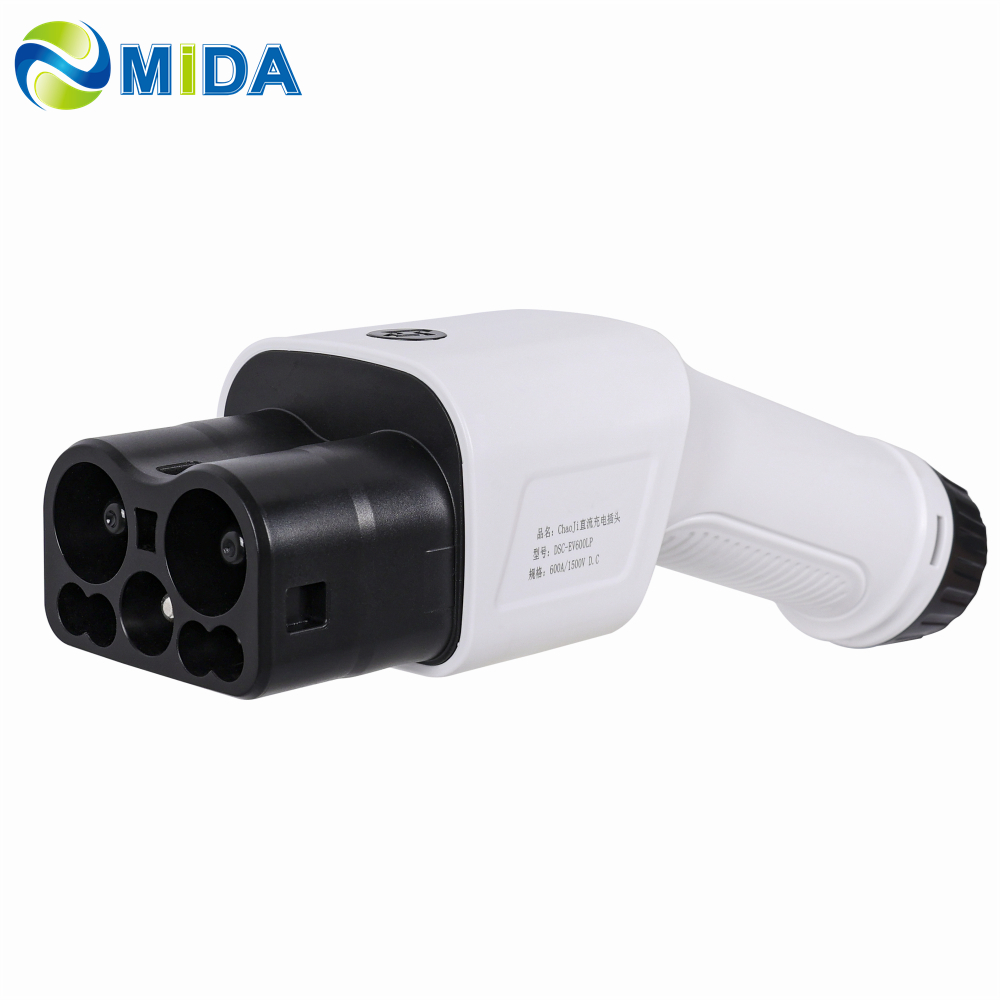

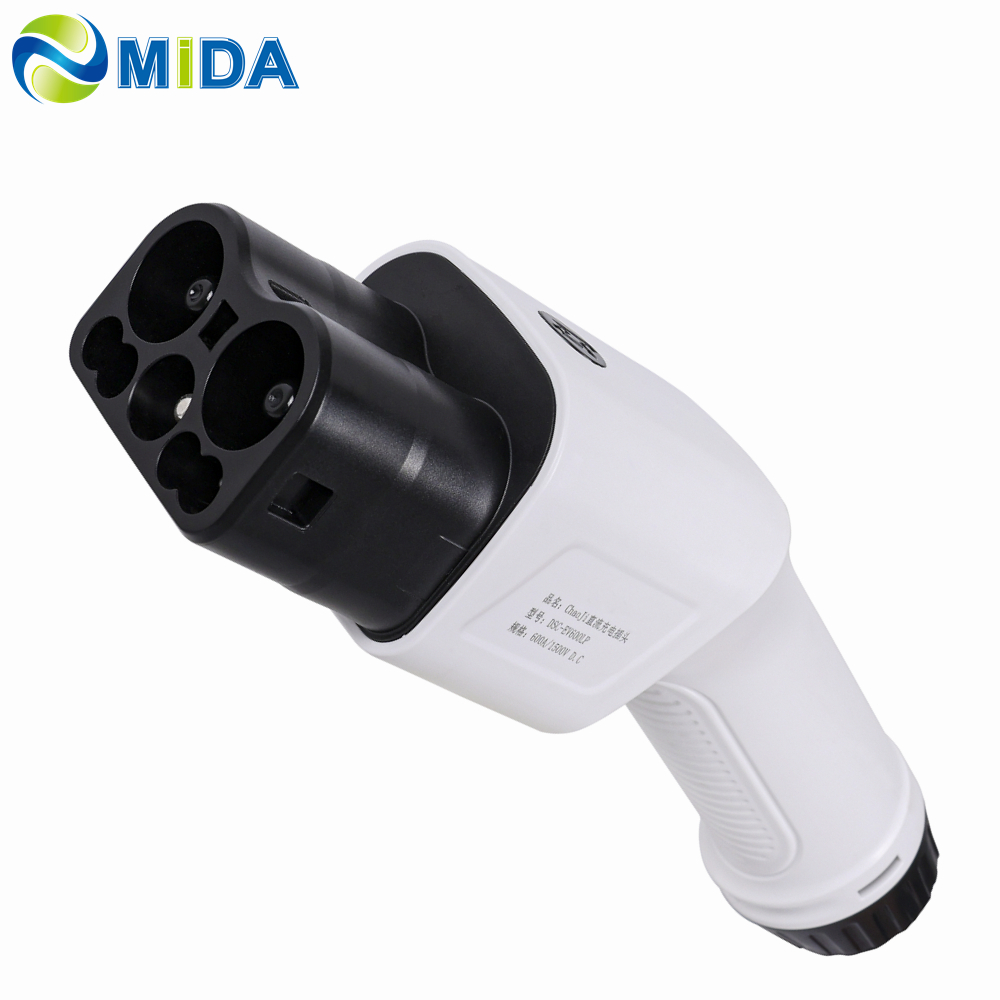

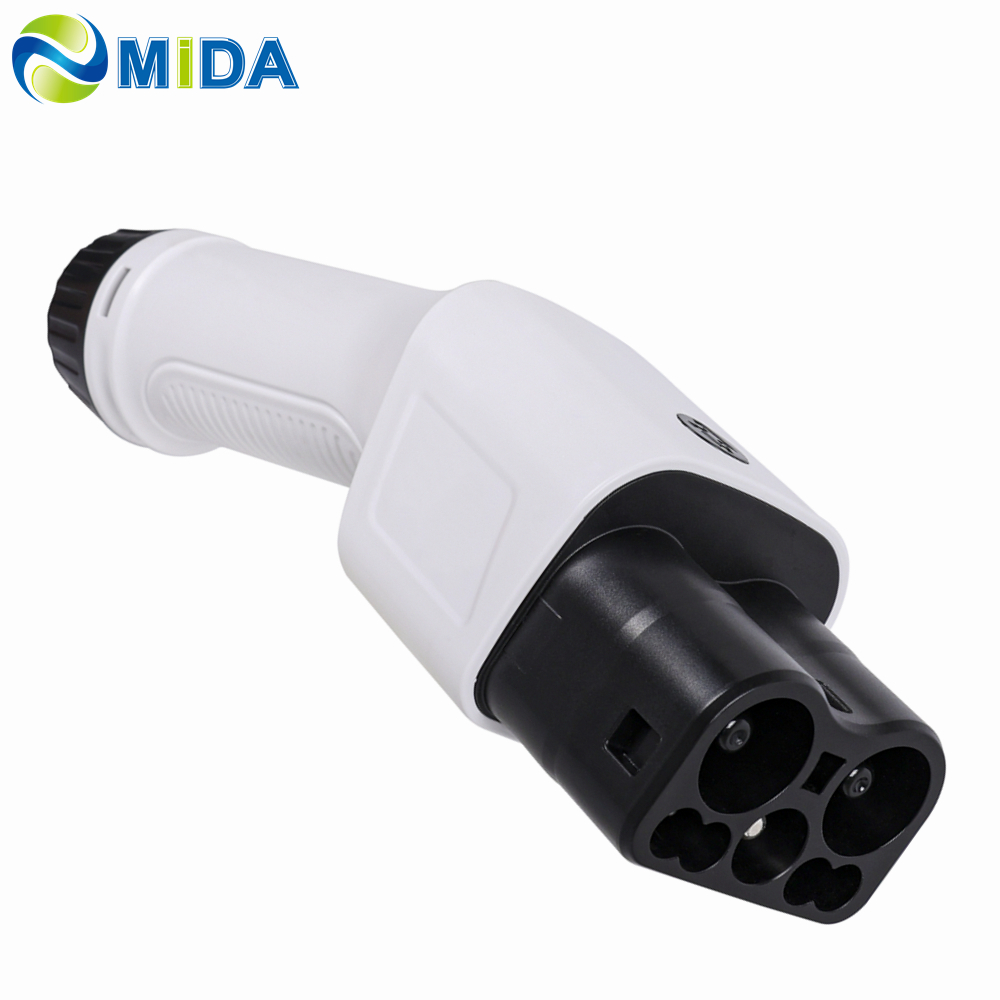

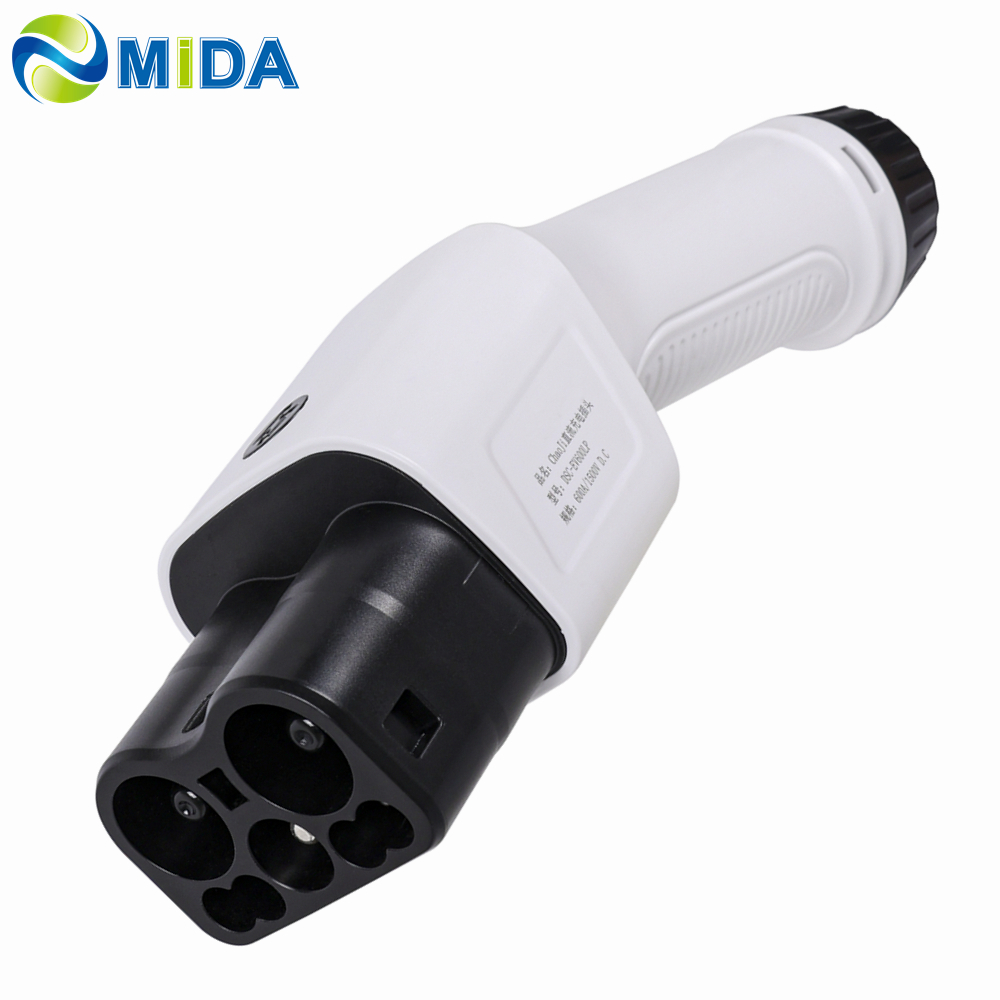

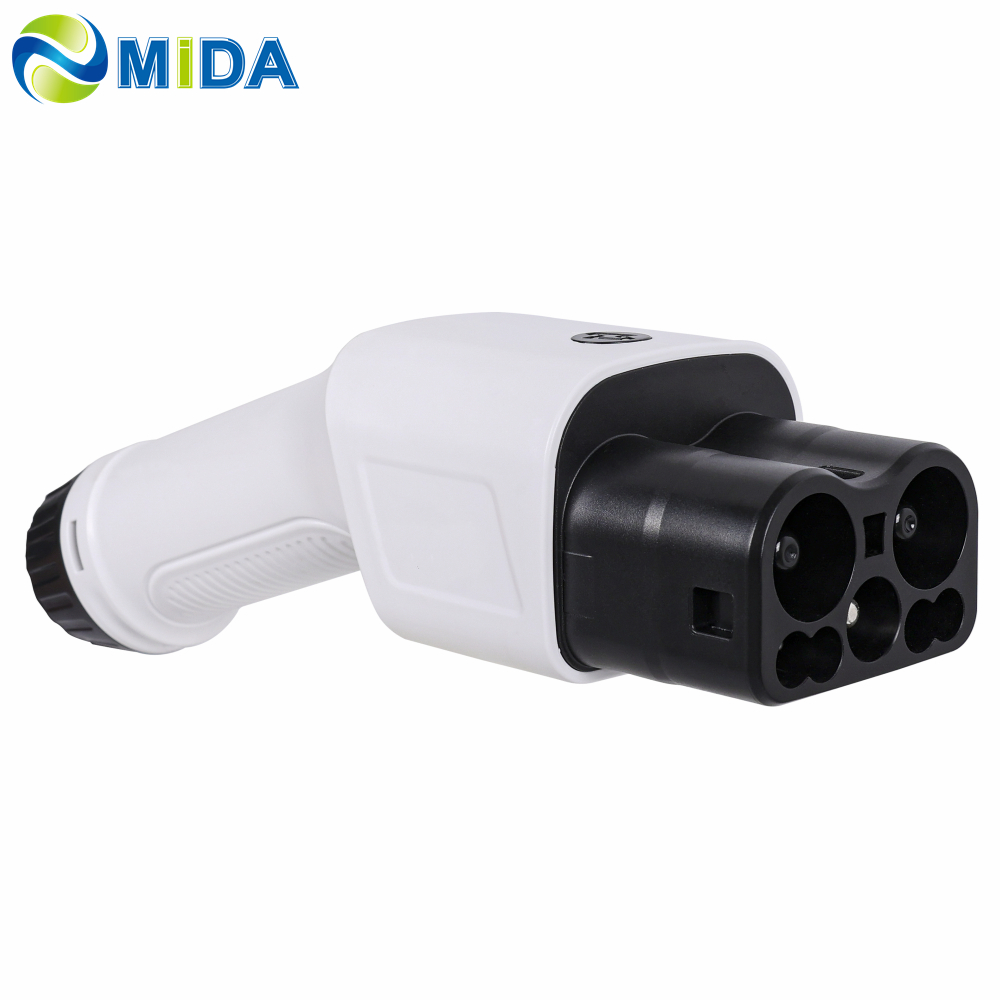

1. 600A Chaoji EV plug. It’s used in DC fast charging & comply with IEC PAS 63454 ED1.
2. 600A Chaoji Connector HPC 600kW Chaoji Plug DC Charging Cable.
1. 600A HPC Chaoji Plug allows for convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.
2. The 600A Chaoji Gun design for Combined Charging System applications utilizes proprietary silver-plated contacts for long-life durability. It supports AC & DC Charging standards across Europe, Asia, Australia, and increasingly global markets.
3. Available in Air Cooling and Liquid Cooling HPC CHAOJI Gun 600A configurations.
4. Liquid Cooling CHAOJI Plug 400A 500A HPC CHAOJI Gun features a terminal quick-change system for DC High Power EV Charging.
| Category | Specifications |
|---|---|
| Features | 1. Meet IEC PAS 63454 ED1 standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP55 | |
| 4. Max charging power: 600kW | |
| 5. AC Max charging power: 45.36kW | |
| Mechanical Properties | 1. Mechanical life: no-load plug in/pull out > 10000 times |
| 2. Impact of external force: can afford 1m drop and 2t vehicle run over pressure | |
| Electrical Performance | 1. DC input: 600A 1000V DC MAX |
| 2. AC input: 16A 32A 63A 240/415V AC MAX | |
| 3. Insulation resistance: > 2000MΩ (DC1000V) | |
| 4. Terminal temperature rise: < 50K | |
| 5. Withstand Voltage: 3200V | |
| 6. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| 2. Pin: Copper alloy, silver + thermoplastic on the top | |
| Environment | 1. Operating temperature: -30°C ~ +50°C |
The 600A CHAOJI Gun is an EV connector that complies with the IEC PAS 63454 ED1 standard. The connector is compatible with DC Charging Plugs, using separate pins for each mode.
This technology ensures the resistance of the EV tends toward zero during charging, significantly reducing heat generation during high-current DC charging processes.
With a 1,000-volt DC maximum voltage rating, the 600A Chaoji connector is ideal for fast and efficient electric vehicle charging.
Equipped with multiple safety features including short circuit protection, ground fault detection, and temperature monitoring to protect against overvoltage and overcurrent.
The Liquid-Cooled HPC Plugs can withstand more than 10,000 plugging cycles. They are designed for durability, wear resistance, and long-term power supply safety, reducing maintenance costs for charging operators.
The 600A CHAOJI Gun supports LOGO customization and full-range appearance/functional customization, backed by professional technical support for brand agencies.
Designed to handle currents of 500A and 600A, these connectors ensure ultra-fast DC charging speeds, minimizing time spent at charging stations.
Compatible with all HPC CHAOJI EV models, ranging from compact electric cars and SUVs to heavy trucks, buses, and commercial electric vehicles.
