| Item | Specifications | DC 120kW | DC 180kW |
|---|---|---|---|
| Input | Input Voltage | 400V ±15% AC | |
| Input Voltage Type | TN-S (Three Phase Five Wire) | ||
| Working Frequency | 45~65Hz | ||
| Power Factor | ≥0.99 | ||
| Efficiency | ≥94% | ||
| Output | Rated Voltage | DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V, Tesla NACS DC 1000V | |
| Max. Output Current | DC - CHAdeMO 125A; CCS 200A; GBT 250A; | AC - Type-2 63A; GBT 32A | |
| Interface | Display | 8'' LCD Touchscreen | |
| Language | Chinese, English, French, German, Spanish, Russian, etc. | ||
| Payment | Mobile APP/RFID/POS | ||
| Communication | Network Connection | 4G(GSM or CDMA)/Ethernet | |
| Communication Protocols | OCPP1.6J or OCPP2.0 | ||
| Working Environment | Working Temperature | -30°C ~ +55°C | |
| Storage Temperature | -35°C ~ +55°C | ||
| Operating Humidity | ≤95% Non-Condensing | ||
| Protection | IP54 | ||
| Acoustic Noise | <60dB | ||
| Cooling Method | Forced Air-Cooling | ||
| Mechanical | Dimension(W x D x H) | 700*1900*650mm | |
| No. of Charging Cable | Single | Dual | |
| Cable Length | 5m or 7m | ||
| Regulation | Certificate | ETL / Energy Star / FCC certificate UL223-1, UL2231-1-2, UL 2202, CSA, C22.2 | |
Supports Tesla NACS, CCS, CHAdeMO, GB/T, and AC connectors. This UL/ETL Listed Commercial DC Charging Station allows for charging up to 3 vehicles at the same time.
Capable of simultaneously charging up to 3 EVs with high-efficiency output.
How fast does a 50kW CHAdeMO fast charger charge?
A 50kW CHAdeMO fast charger can add approximately 87-145 miles of range in one hour, or charge a mid-range electric vehicle to 80% in 30-60 minutes. The first-generation CHAdeMO connector delivers up to 62.5 kW of power at 500 V, 125 A DC.

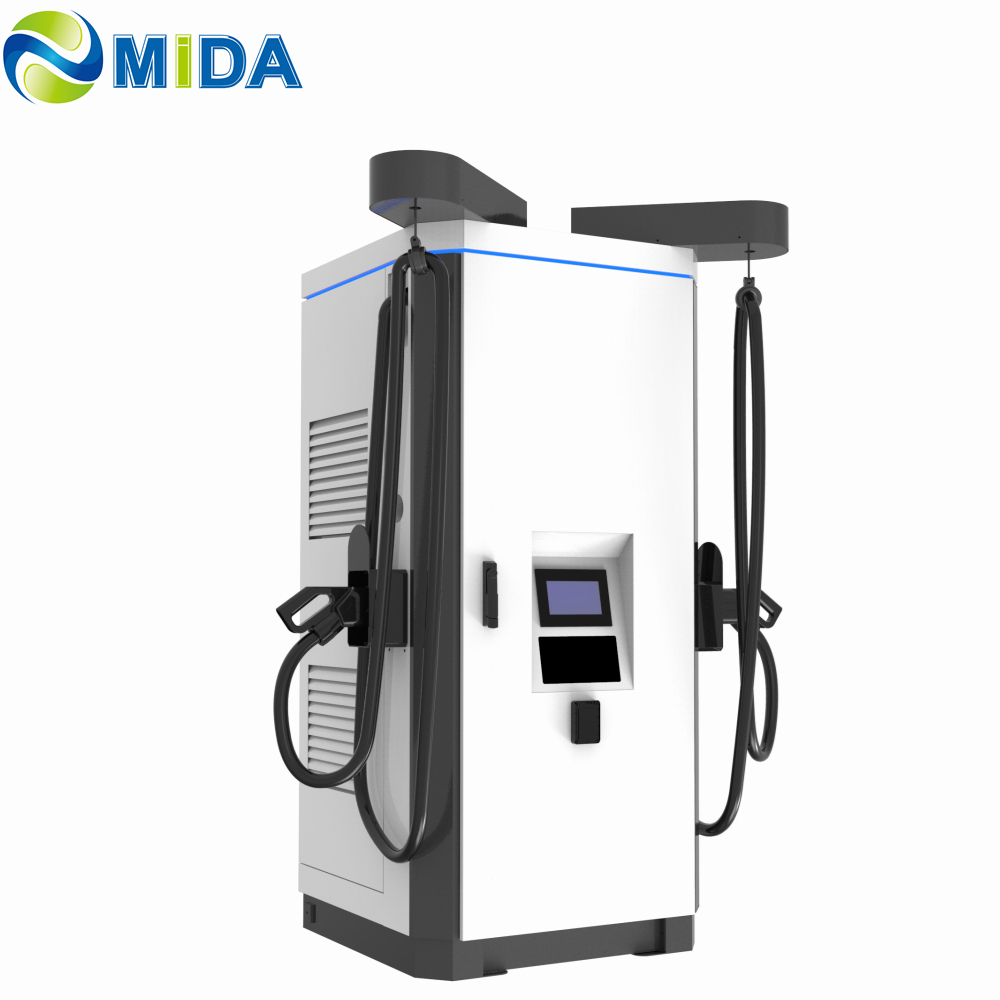

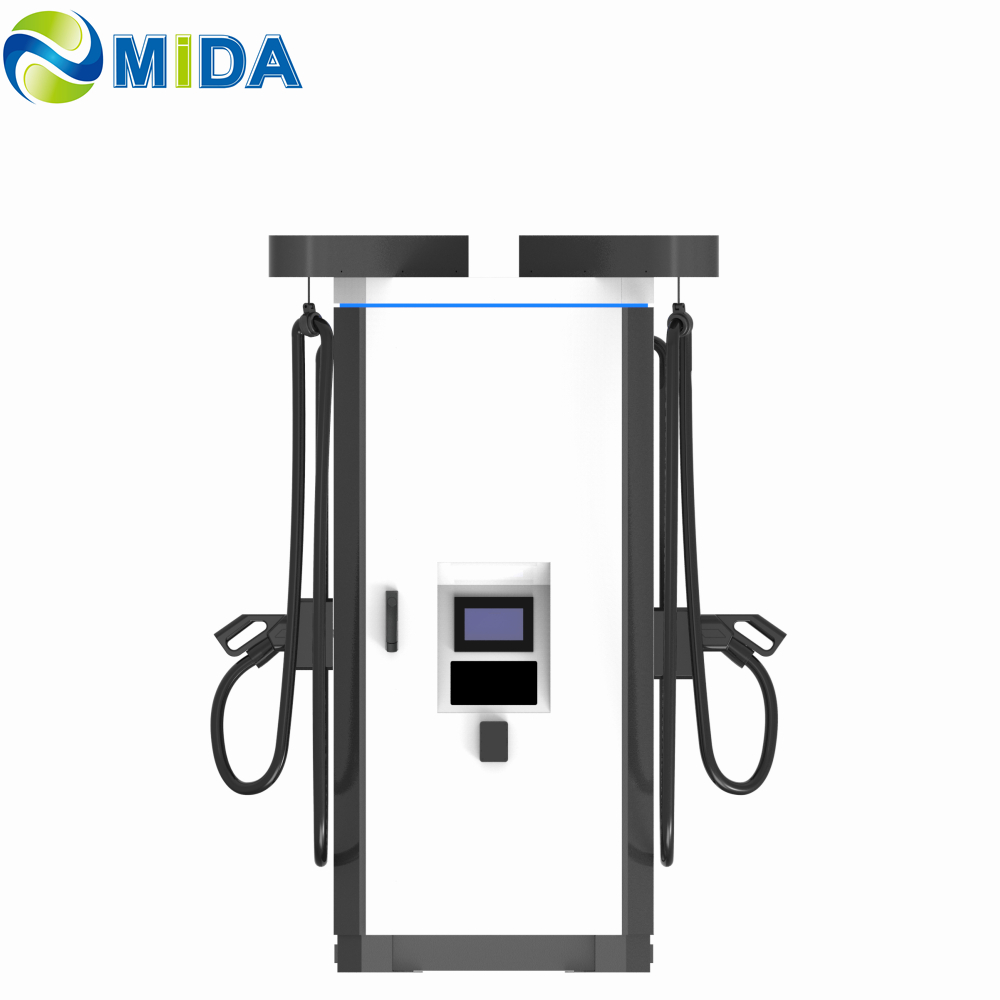

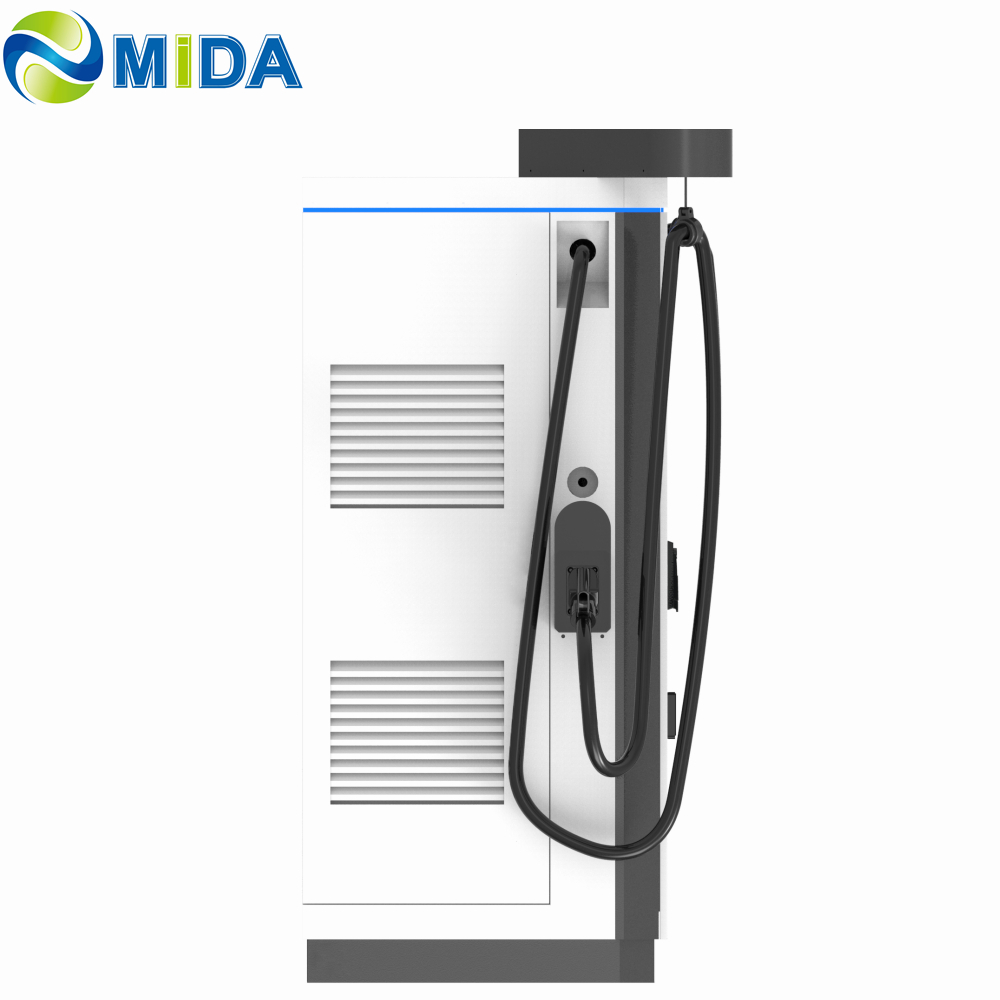

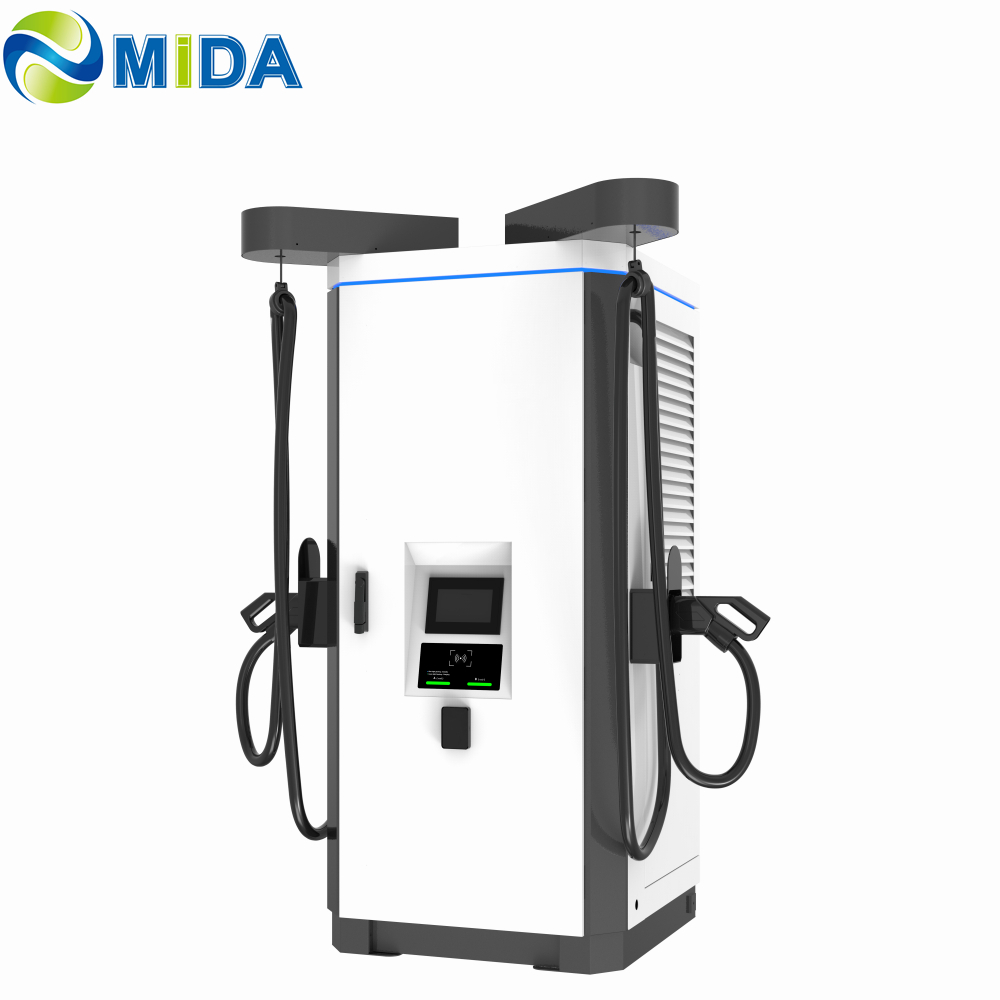

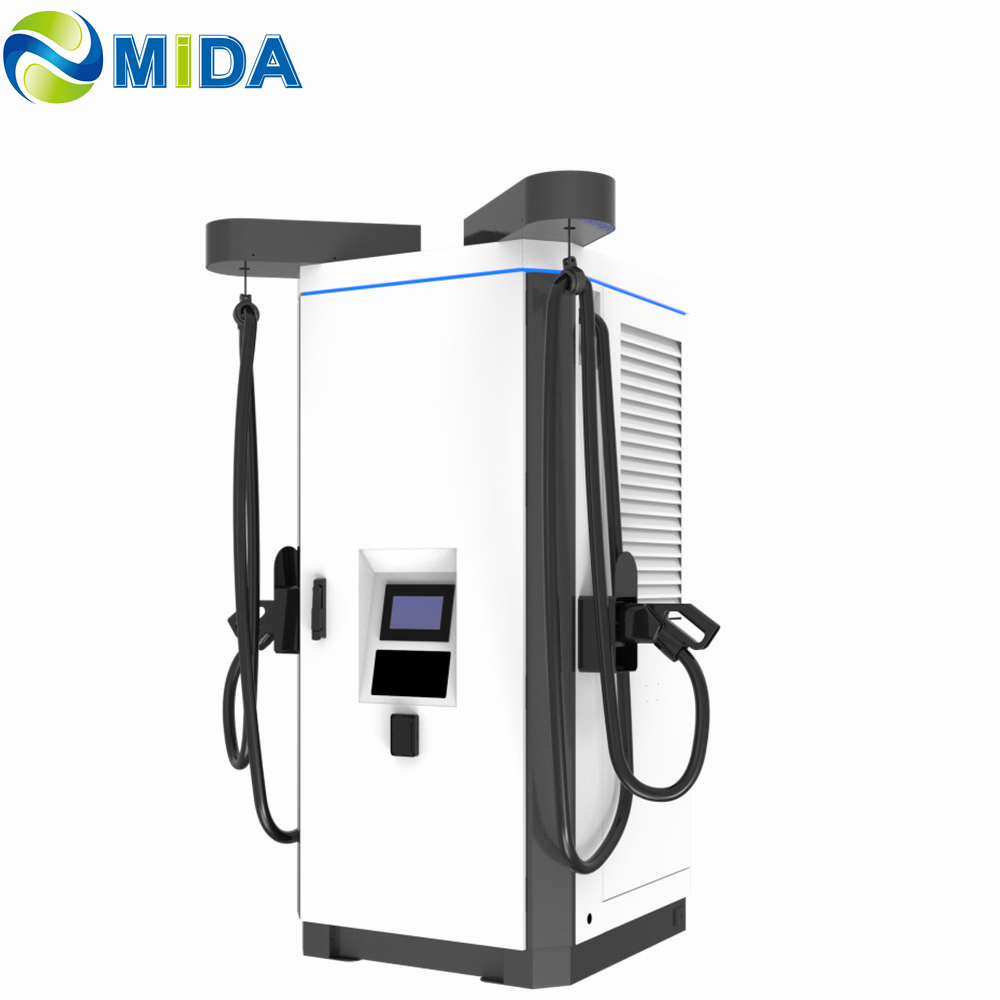

CHAdeMO 100kW Electric Vehicle Fast Charging Station
A 100kW CHAdeMO charger can charge an electric vehicle to 80% in approximately 30-40 minutes, adding about 150 miles of range in just half an hour. The 50kW - 100kW range supports five major global interface standards including CCS, CHAdeMO, and GB/T.
