As CHAdeMO was created by Nissan, Mitsubishi, Toyota, Fuki and Tokyo Electric Power Company, Japanese carmakers were some of the biggest adopters of CHAdeMO technology. In the UK, the cars that can be rapid charged with a CHAdeMO connector include the Nissan Leaf, Lexus UX 300e, Mitsubishi Outlander PHEV, now-discontinued Toyota Prius Plug-In, Tesla Model S (when fitted with an adapter), Nissan e-NV200, Kia Soul EV Mk1, Citroen Berlingo Electric Mk1 and the platform-sharing Mitsubishi i-MiEV, Peugeot iOn and Citroen C-Zero. A CHAdeMO charging port is also available as an optional extra on the LEVC London Taxi.
Technical Parameters
| Model |
CHAdeMO socket |
| Rated current |
DC+/DC-: 125A, 150A, 200A; PP/CP: 2A |
| Wire Diameter |
125A/35mm2, 150A/50mm2, 200A/70mm2 |
| Rated voltage |
DC+/DC-: 600V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage |
3000V AC / 1min. (DC + DC- PE) |
| Insulation resistance |
≥ 100mΩ 600V DC (DC + / DC- / PE) |
| Electronic locks |
12V / 24V optional |
| Mechanical life |
10,000 times |
| Ambient temperature |
-40℃~50℃ |
| Degree of Protection |
IP55 (When not mated), IP44 (After mated) |
| Main Material |
| Shell |
PA |
| Insulation part |
PA |
| Sealing part |
Silicone Rubber |
| Contact part |
Copper alloy |

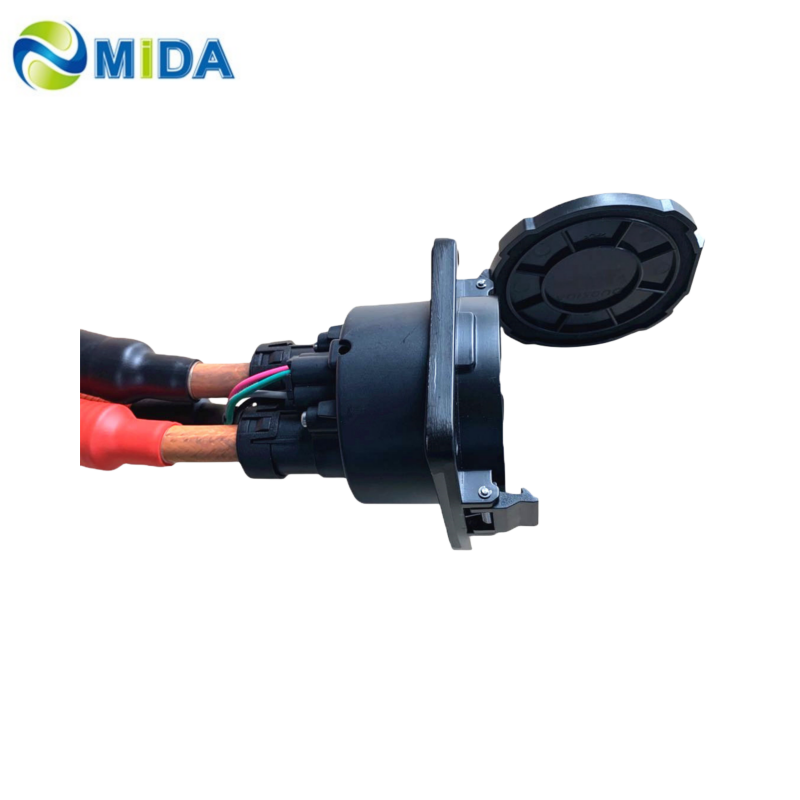

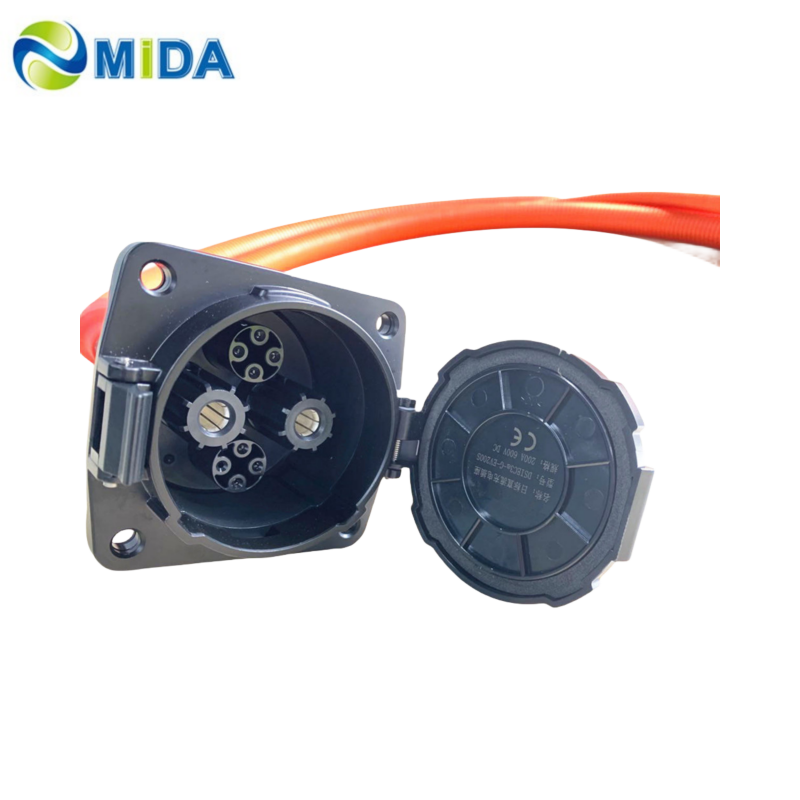

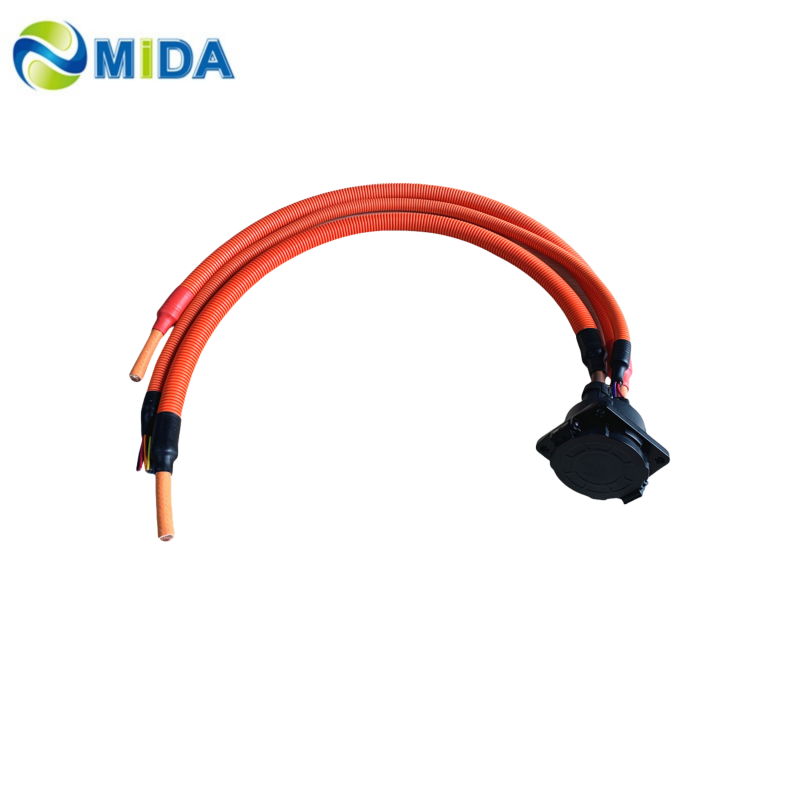

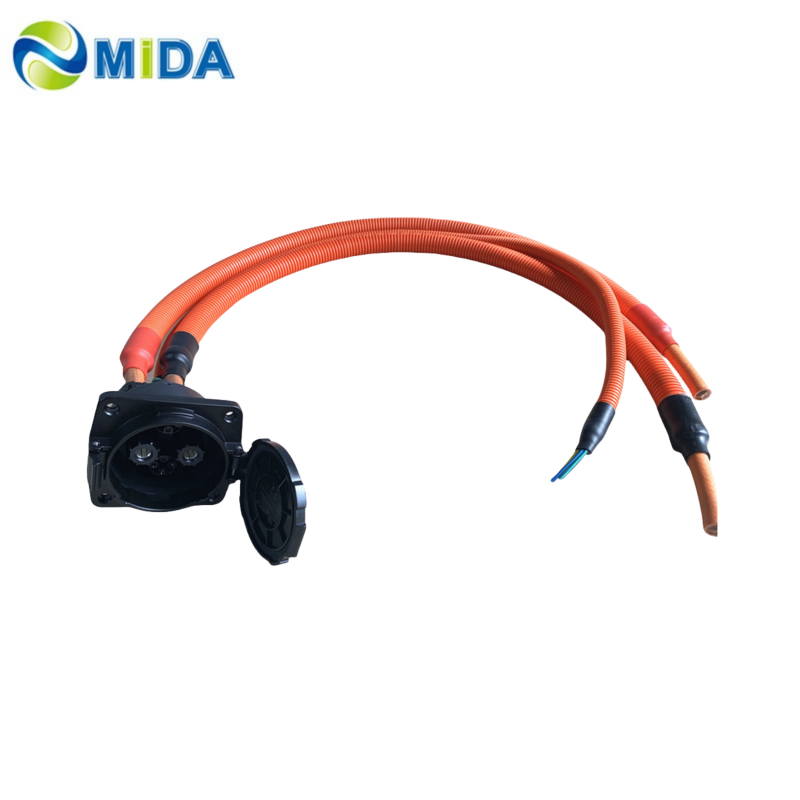

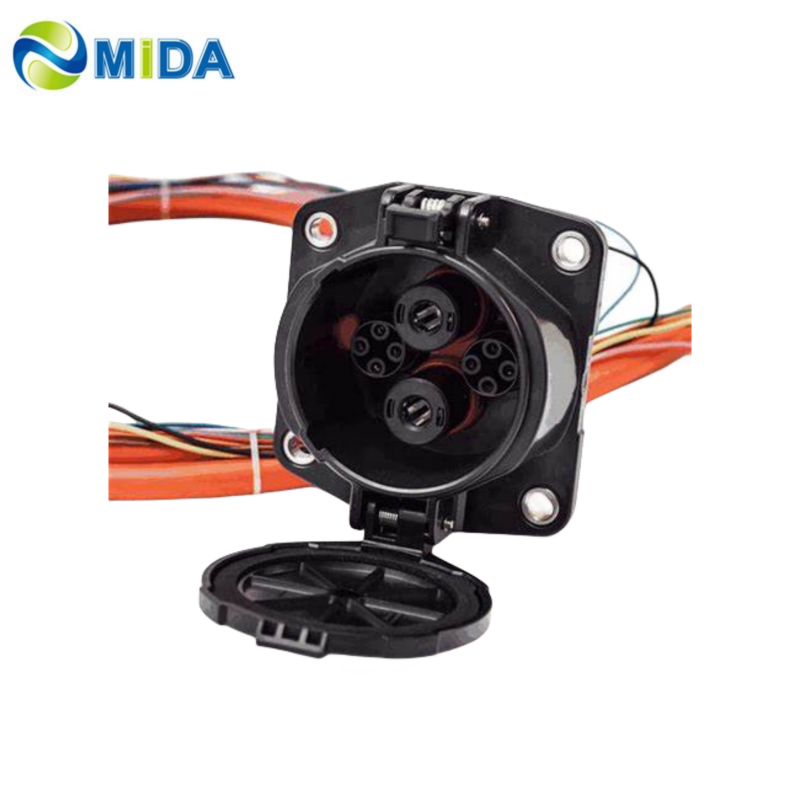

Product Presentation
⚡ Alternating Current & Charging
If you’ve got a slightly older electric car like a Nissan Leaf there are still charging points out there with CHAdeMO connectors. You’ll find CHAdeMO connectors on a lot of DC rapid chargers capable of 50kW charging speeds or faster like those operated by InstaVolt, Gridserve and Osprey, among others.
🛡️ Safe Charging Design
CHAdeMO EV sockets are designed with safety insulation on their pinheads to prevent accidental direct contact with human hands. This insulation is meant to ensure the highest level of safety when handling the sockets, protecting the user from potential electric shock.
Key Features
- Comply with IEC 62196.3-2022 standards
- Rated voltage: 600V; Rated current: DC 200A
- 12V/24V electronic lock optional for secure charging
- Meet TUV/CE/UL certification requirements
- Equipped with anti-straight plug dust cover
- 10,000 times of plugging and unplugging cycles with stable temperature rise
- High-quality construction for better durability and performance
📈 Investment Value
This advanced charging system is also built to last, with a robust construction that ensures reliability and longevity. The CHAdeMO socket is designed to outlast its competitors, making it an excellent long-term investment for EV owners. Its multi-available current rating and easy installation make it a great choice for both residential and commercial applications.
🌍 Market Analysis
The socket is designed to be used with CHAdeMO charging connectors, which are becoming increasingly commonplace across the world. This makes it an ideal choice for those who want to charge their electric vehicles without having to worry about compatibility issues.
Frequently Asked Questions
Q1: Which car models are compatible with this CHAdeMO inlet?
Compatible models include the Nissan Leaf, Lexus UX 300e, Mitsubishi Outlander PHEV, Tesla Model S (with adapter), Nissan e-NV200, Kia Soul EV, and various Citroen/Peugeot electric models.
Q2: What is the maximum current and voltage supported?
The inlet supports a rated current up to 200A (options for 125A and 150A) and a rated voltage of 600V DC.
Q3: What is the protection rating (IP rating) of this socket?
It features an IP55 protection rating when not mated and IP44 after it is mated, ensuring safety against dust and water splashes.
Q4: Does the socket include an electronic locking mechanism?
Yes, it comes with an optional 12V or 24V electronic lock to ensure the charging process is secure and prevents unauthorized disconnection.
Q5: How durable is the CHAdeMO socket for long-term use?
The socket is designed for a mechanical life of over 10,000 plugging and unplugging cycles, using high-quality materials like copper alloy and silicone rubber.
Q6: Does it comply with international safety standards?
Yes, the product complies with IEC 62196.3-2022 and meets the requirements for TUV, CE, and UL certifications.
