| Product Name | CCS GBT Ev Charger Adapter |
| Rated Voltage | 1000V DC |
| Rated Current | 250A |
| Application | For Cars with Chademo inlet to charge on CCS2 Superchargers |
| Terminal Temperature Rise | <50K |
| Insulation Resistance | >1000MΩ (DC500V) |
| Withstand Voltage | 3200Vac |
| Contact Impedance | 0.5mΩ Max |
| Mechanical Life | No-load plug in/pull out >10000 times |
| Operating Temperature | -30°C ~ +50°C |

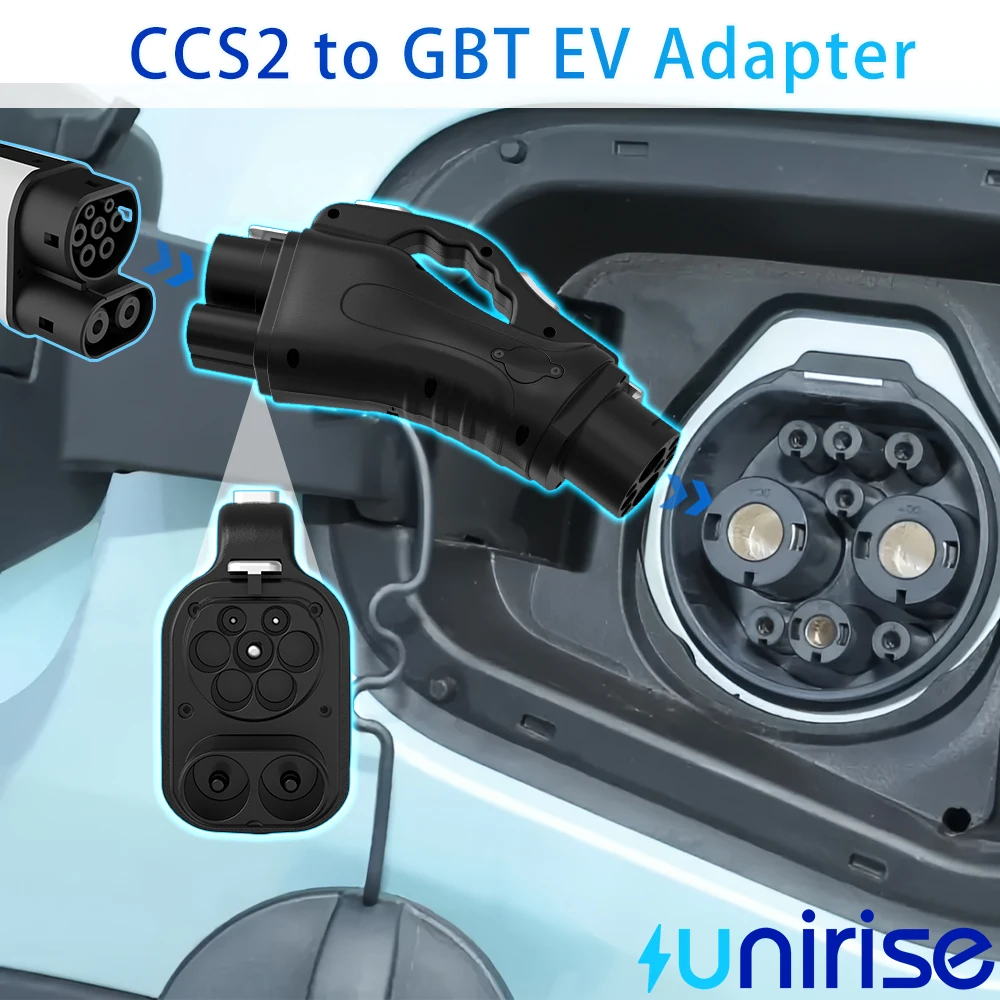

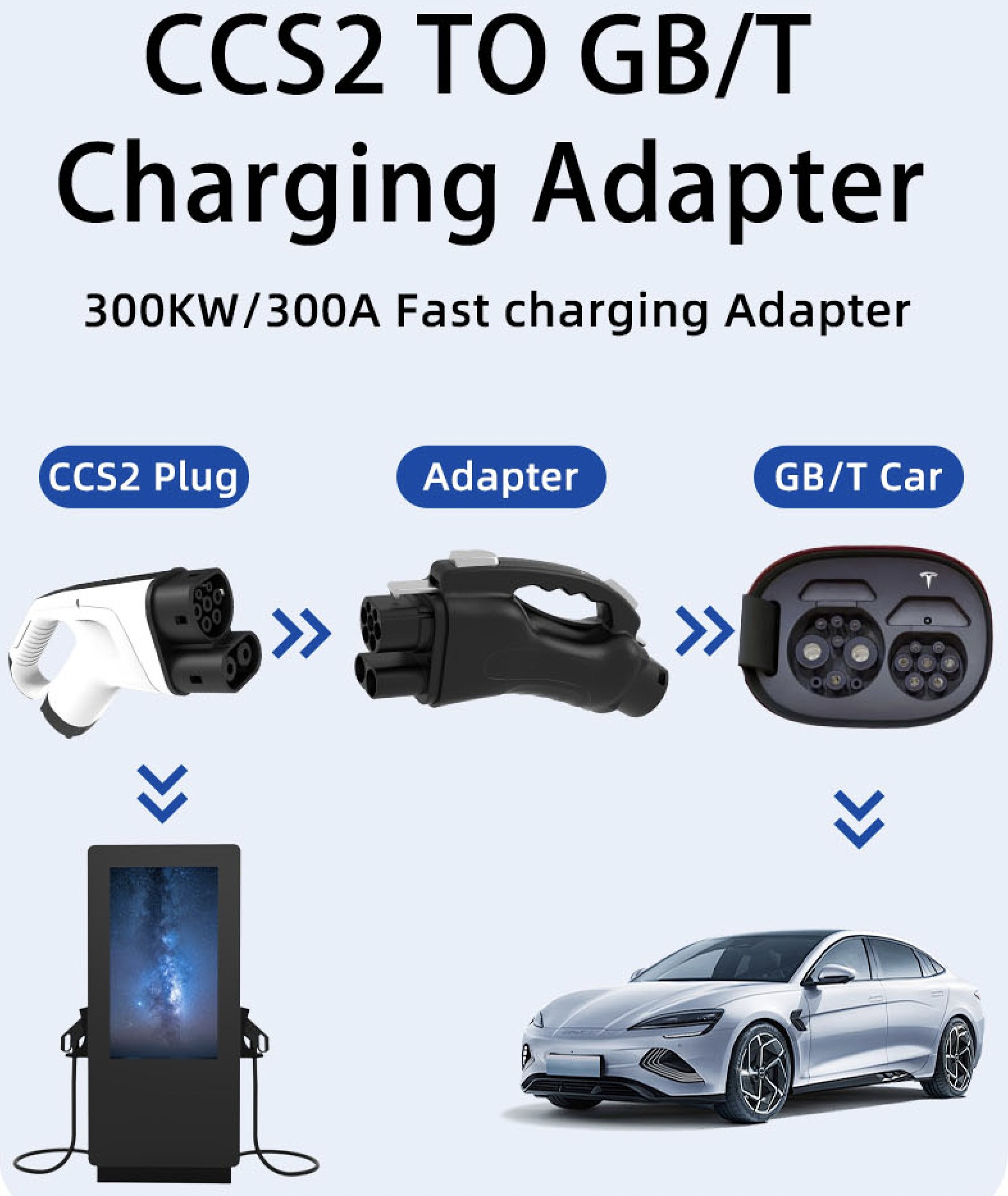

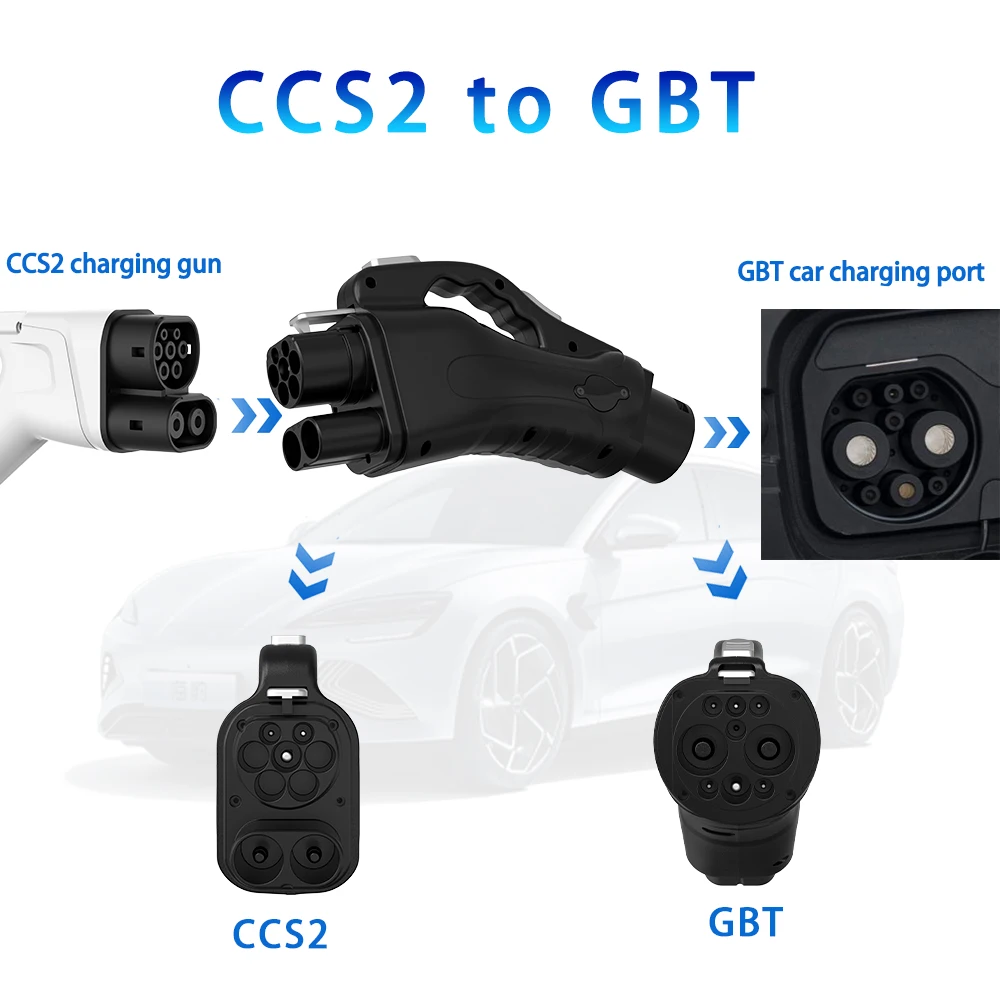

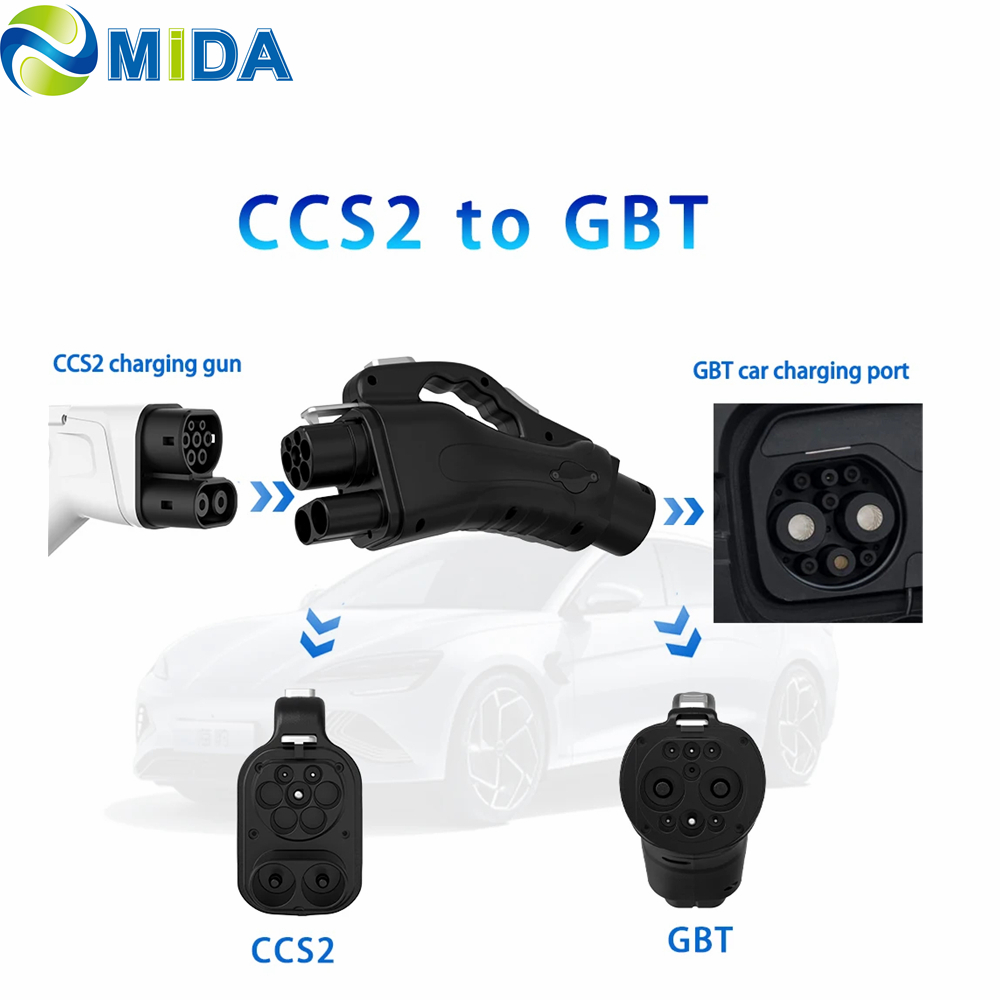

A CCS2 to GBT adapter is a specialized charging interface device that allows an electric vehicle (EV) with a GBT charging port (China’s GB/T standard) to be charged using a CCS2 (Combined Charging System Type 2) DC fast charger standard used in Europe, parts of the Middle East, and Australia.
Bridging Standards: Different regions have adopted different standards. GB/T is the national charging standard for EVs in China, while CCS2 is common in Europe and Australia. This adapter enables cross-regional charging, giving drivers access to a much wider network of stations.
1. Wide Compatibility: Seamlessly works with Chinese EVs using national standard DC charging ports, including BYD, Volkswagen ID.4/ID.6, ROX, Cheetah, Avatar, Xpeng Motors, NIO, and others.
2. Global Charging: Use CCS2 DC fast chargers in the UAE, the Middle East, and other locations, easily enabling fast charging overseas.
3. High Power Performance: Delivers up to 300kW of DC power, supports voltages from 150V to 1000V, and handles up to 300A for fast and reliable charging.
4. Rugged and Secure Design: Features an IP54 waterproof rating, UL94 V-0 flame-retardant housing, silver-plated copper connectors, and built-in short-circuit protection.
