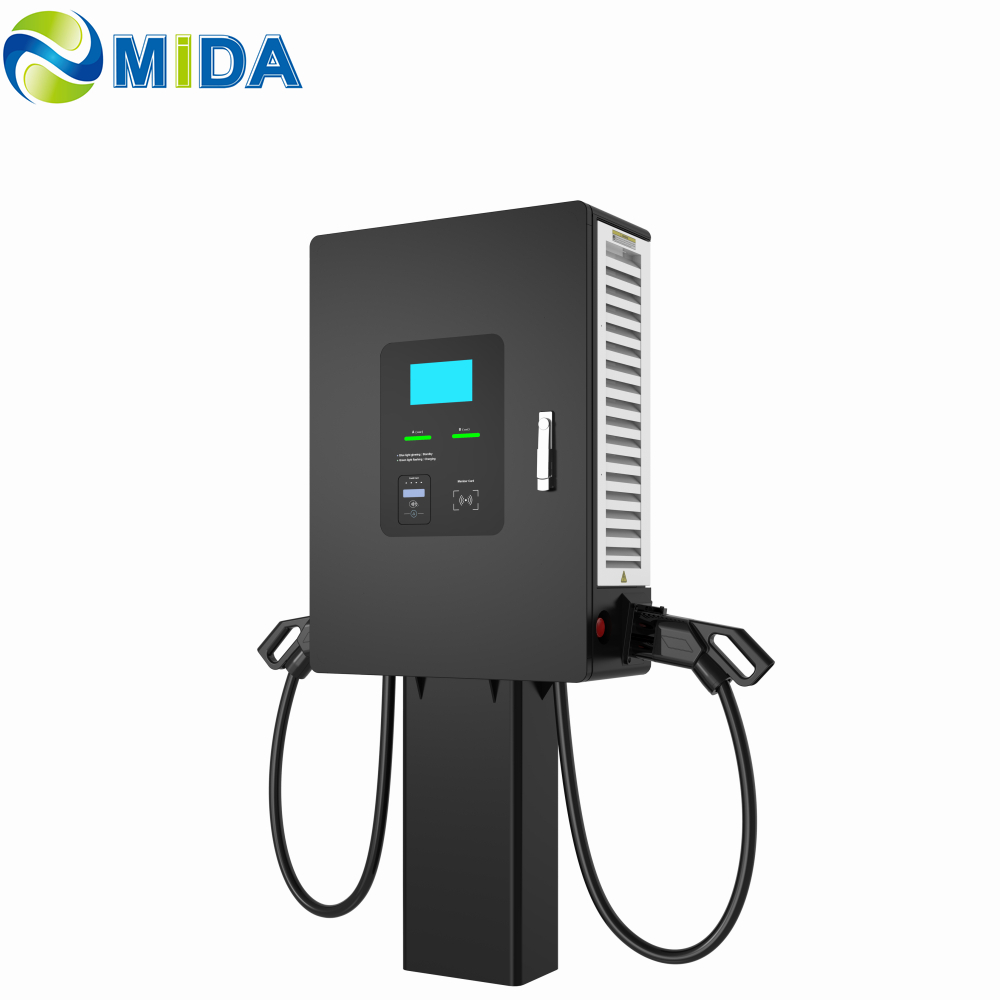

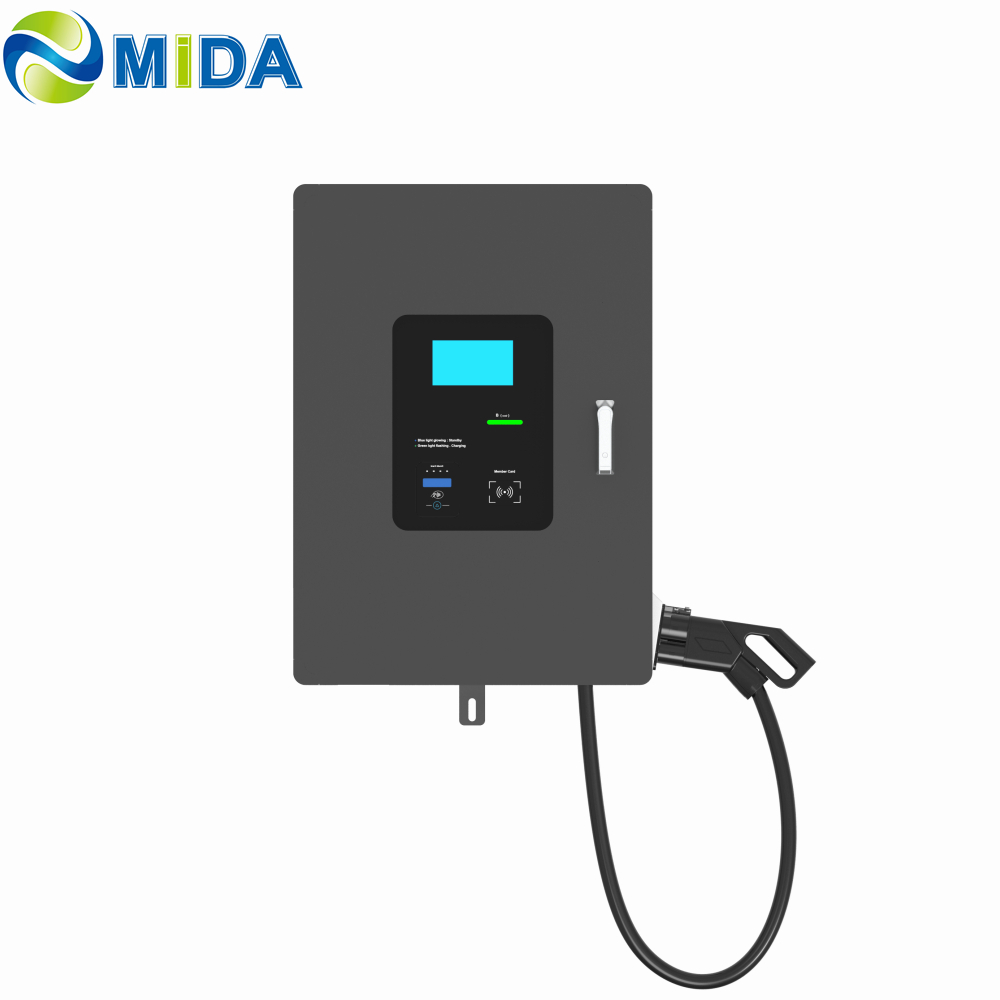

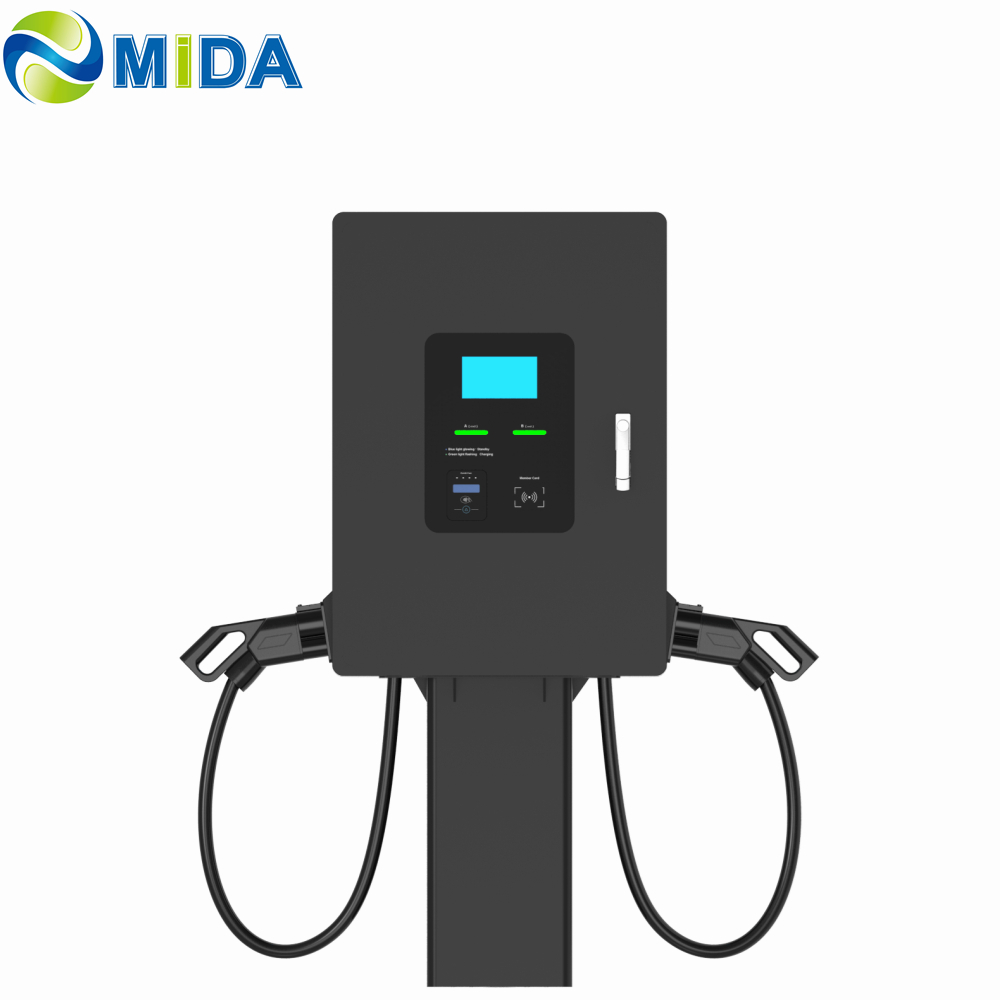

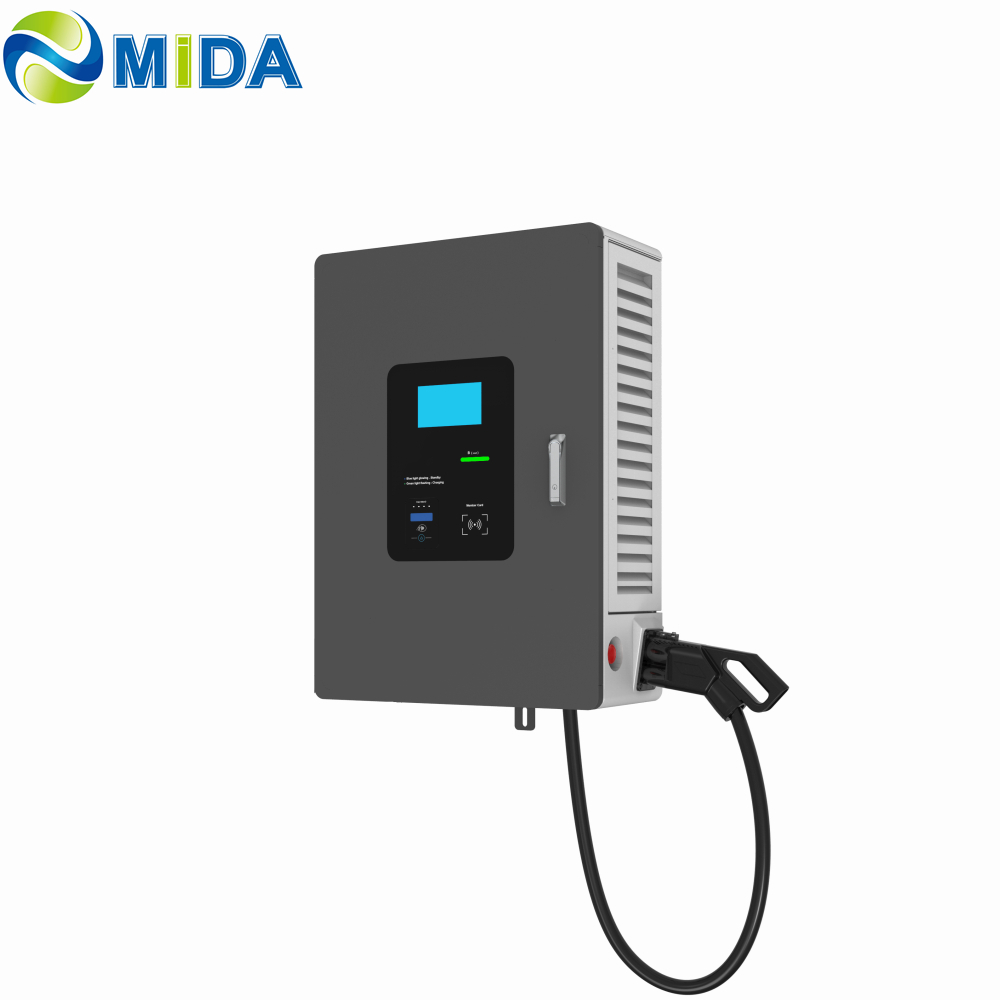

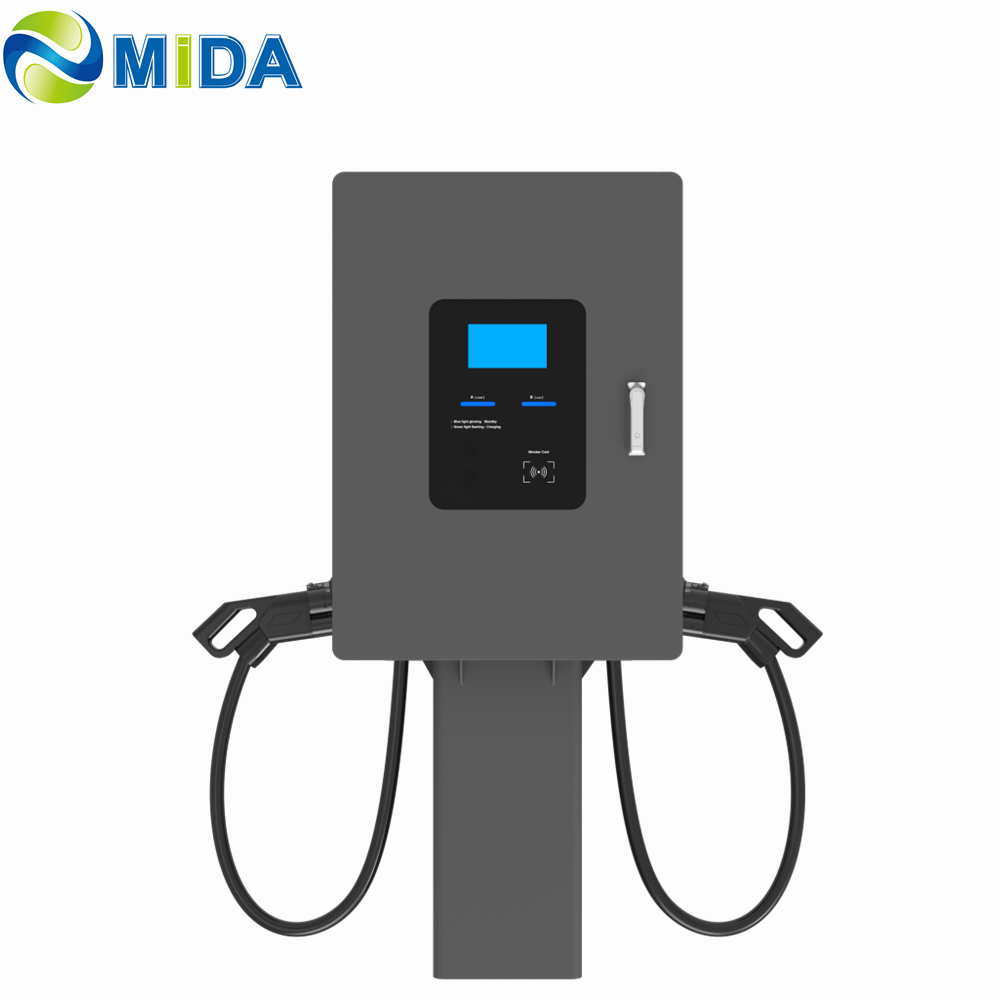

20kw 30kw 40kw Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module. This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.
| AC Input | 1. Input Rating: 400Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) | |
| 3. Max. Input Current: 50A | |
| 4. Efficiency: 95% | |
| DC Output | 1. Output Voltage Range: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc (GB/T) |
| 2. Max. Output Power: 20KW, 30kW, 40kw | |
| 3. Max. Output Current: 100A@500V | |
| User Interface | 1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop | |
| 3. Interface: USB, RJ45 | |
| Packing | 1. Dimension: 630*230*632mm |
| 2. Weight: 35KGS | |
| Environment | 1. Operating Temperature: -20°C ~ +50°C (power derating above +50°C) |
| 2. Humidity: 5% ~ 90% RH, non-condensing | |
| 3. Altitude: 2000m | |
| 4. IP Level: IP23 | |
| Regulation | 1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS | |
| 3. Charging protocol: CHAdeMO 2.0/DIN 70121/ISO15118/IEC61851-23 |
