| Parameter Item | Specifications |
|---|---|
| Model | CCS 2 socket |
| Rated current | DC+: 80A, 125A, 150A, 200A, 250A, 300A, 400A; L1/L2/L3/N: 32A; PP/CP: 2A |
| Wire Diameter | 80A/16mm², 125A/35mm², 150A/50mm², 200A/70mm², 250A/95mm², 300A/95mm², 400A/120mm² |
| Rated voltage | DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC |
| Withstand voltage | 3000V AC / 1min. (DC+ / DC- / PE) |
| Insulation resistance | ≥ 100mΩ 1000V DC (DC+ / DC- / PE) |
| Electronic locks | 12V / 24V optional |
| Mechanical life | 10,000 times |
| Ambient temperature | -40℃ ~ 50℃ |
| Degree of Protection | IP55 (When not mated); IP44 (After mated) |
| Main Material | |
| Shell | PA |
| Insulation part | PA |
| Sealing part | Silicone Rubber |
| Contact part | Copper alloy |

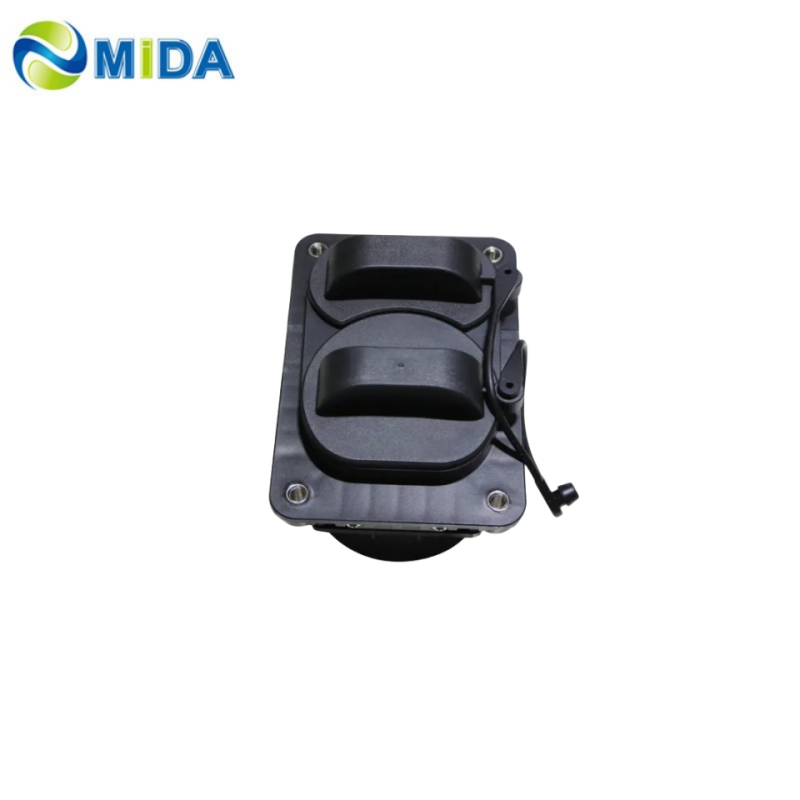

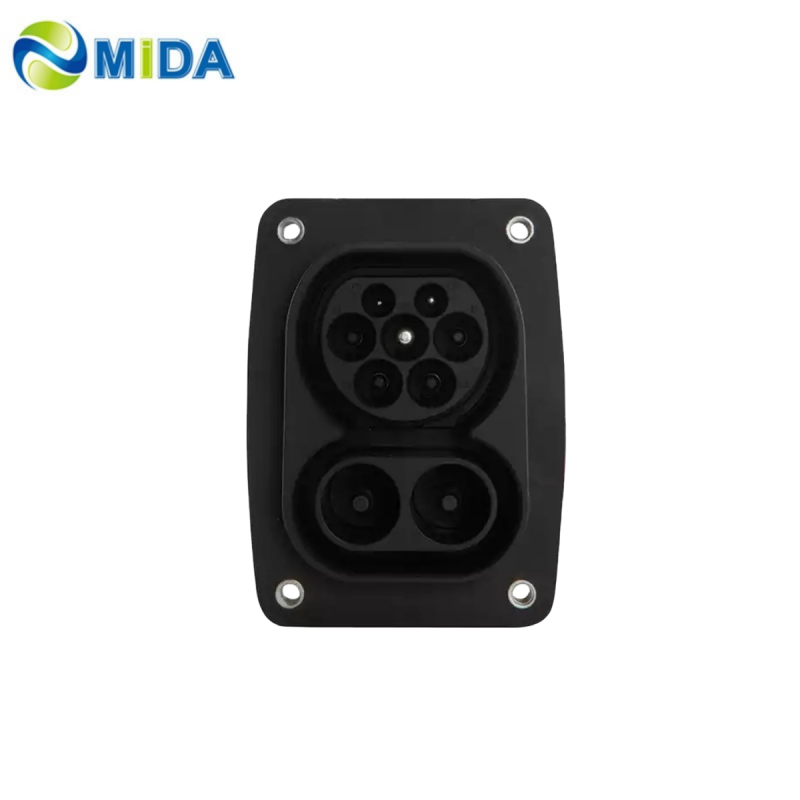

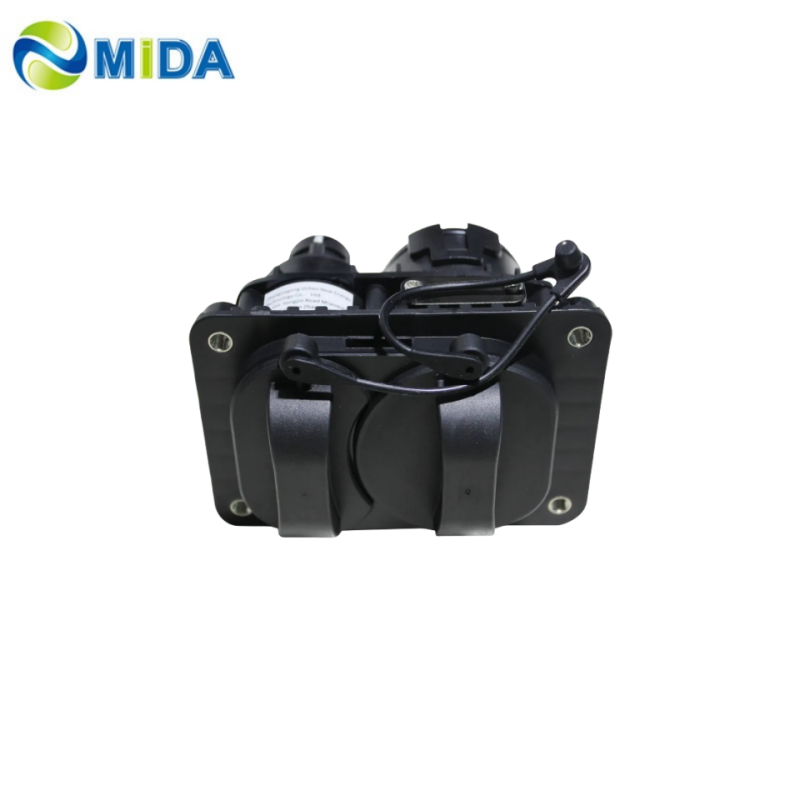

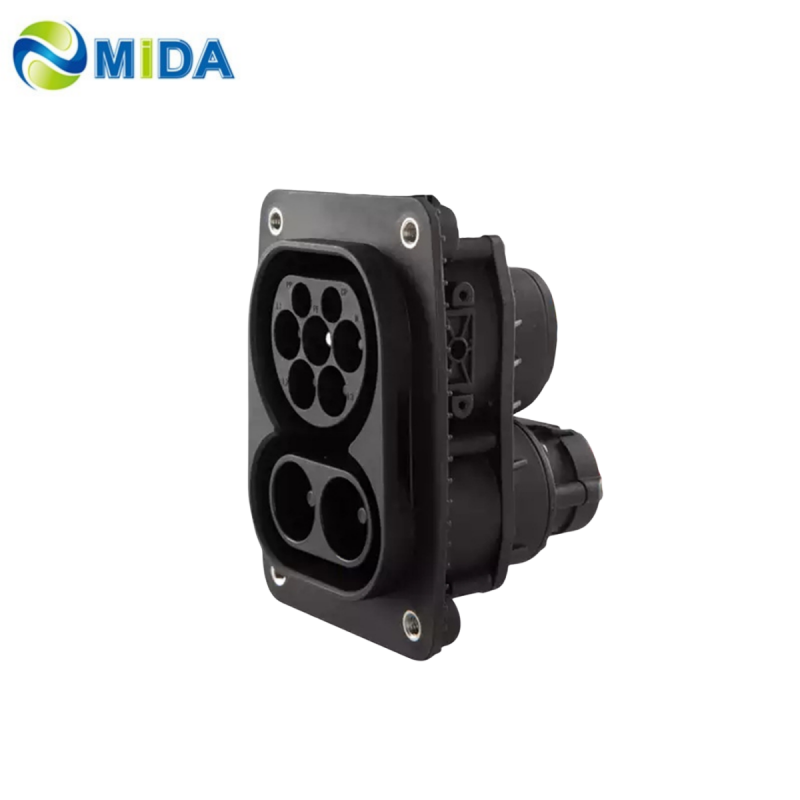

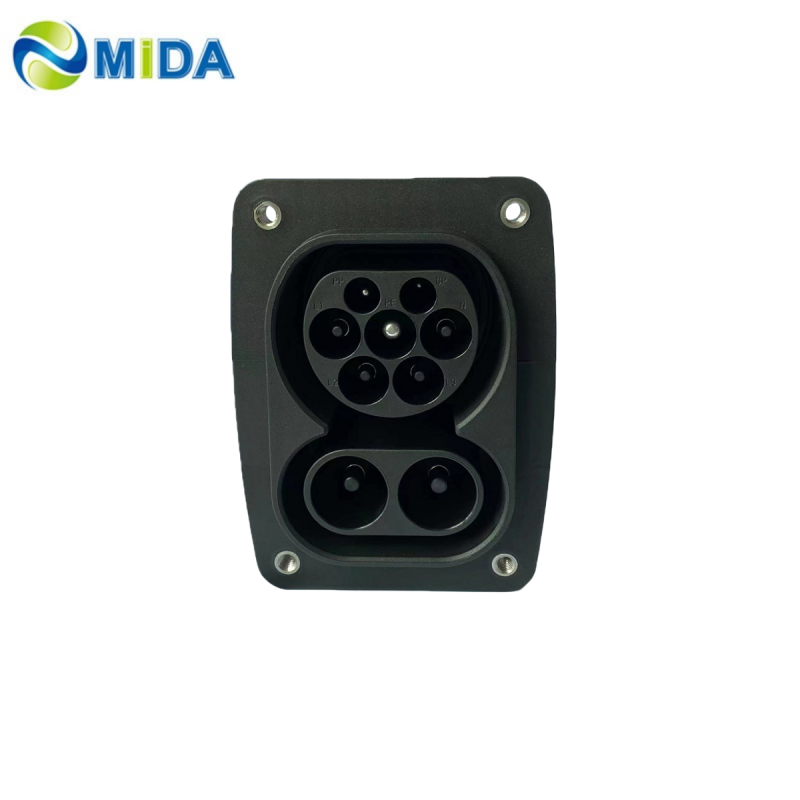

The Combo CCS2 charging socket is available in 300A. It combines alternating current (AC) Type 2 charging and direct current (DC) CCS fast charge in one inlet.
Designed with safety insulation on pinheads to prevent accidental direct contact. Ensures highest level of safety and protection from potential electric shock.
Built to last with robust construction. Designed to outlast competitors, making it an excellent long-term investment for residential and commercial applications.
Compatible with type 2 charging connectors increasingly common across Europe. Ideal for universal charging without compatibility worries.
