Best 300A 350A 400A CCS2 Combo 2 Connector DC Inlet CCS2 Charging Socket Supplier, Suppliers
The 250A 300A 350A 400A 500A IEC62196-3 CCS2 charging socket is a newer version of the CCS2 and is the preferred connector for European and American automakers. It features a combined inlet design that makes it more convenient and easier to use for EV drivers. The CCS2 sockets combines the inlets for both AC and DC charging.
European standard 250A 300A 350A 400A 500A CCS 2 sockets are specifically designed for installation on electric vehicles. As a core component of the Combined Charging System, this CCS type 2 inlet enables high-power DC charging when paired with CCS combo 2 DC charging cables. All units fully comply with the stringent IEC 62196.3-2022 and RoHS environmental requirements.
Introduction to CCS2 EV Charging Sockets
The Combined Charging System (CCS) socket is the universal industry standard for electric vehicle charging, offering seamless support for both AC and DC fast charging. The CCS2 standard is the primary European Electric Vehicle Supply Equipment (EVSE) regulation, developed to standardize DC fast charging for Battery Electric Vehicles (BEVs) and Plug-in Hybrid Electric Vehicles (PHEVs).
The 300A to 500A CCS2 connector features a sophisticated 9-pin configuration, consisting of Type 2 AC charging pins and dedicated DC charging pins. With a maximum rated current of 500 amperes and voltage capacity up to 1000 volts, it is compatible with all vehicles supporting the CCS standard and works efficiently with portable Level 2 chargers.
DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP: 30V DC
Withstand Voltage
3000V AC / 1min. (DC + DC- PE)
Insulation Resistance
≥ 100mΩ 1000V DC (DC + / DC- / PE)
Electronic Locks
12V / 24V Optional
Mechanical Life
> 10,000 mating cycles
Ambient Temperature
-40℃ to 50℃
Degree of Protection
IP55 (Unmated) / IP44 (Mated)
Material Construction
Shell & Insulation
PA (Polyamide)
Sealing Part
Silicone Rubber
Contact Part
Copper Alloy

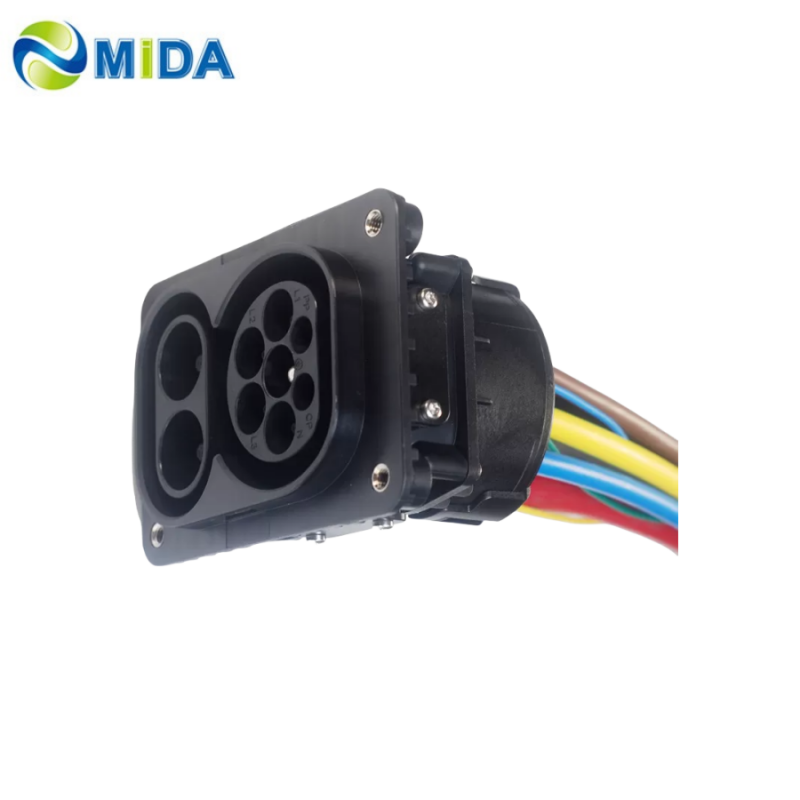

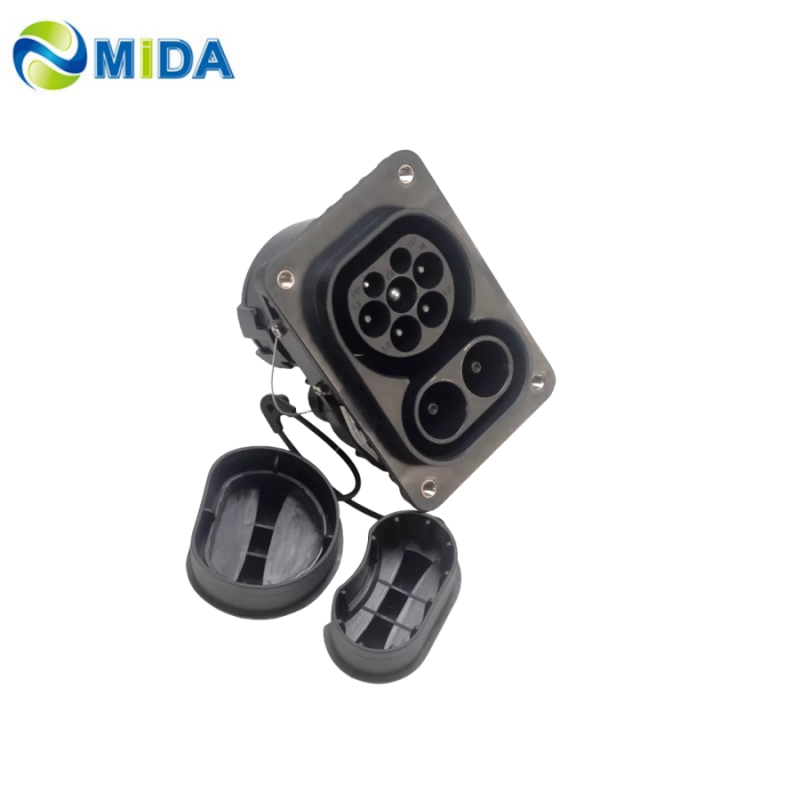

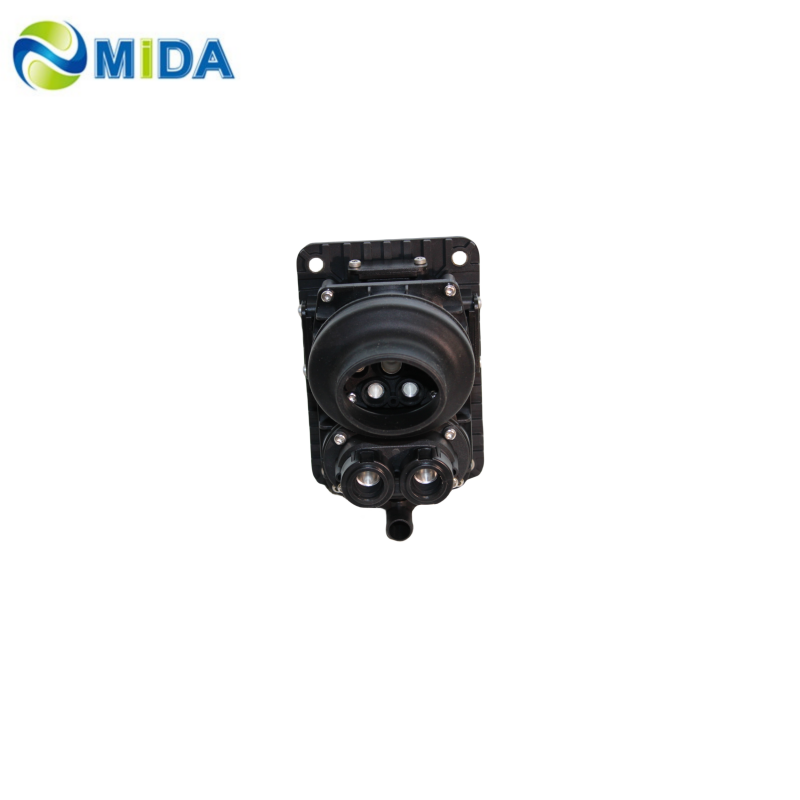

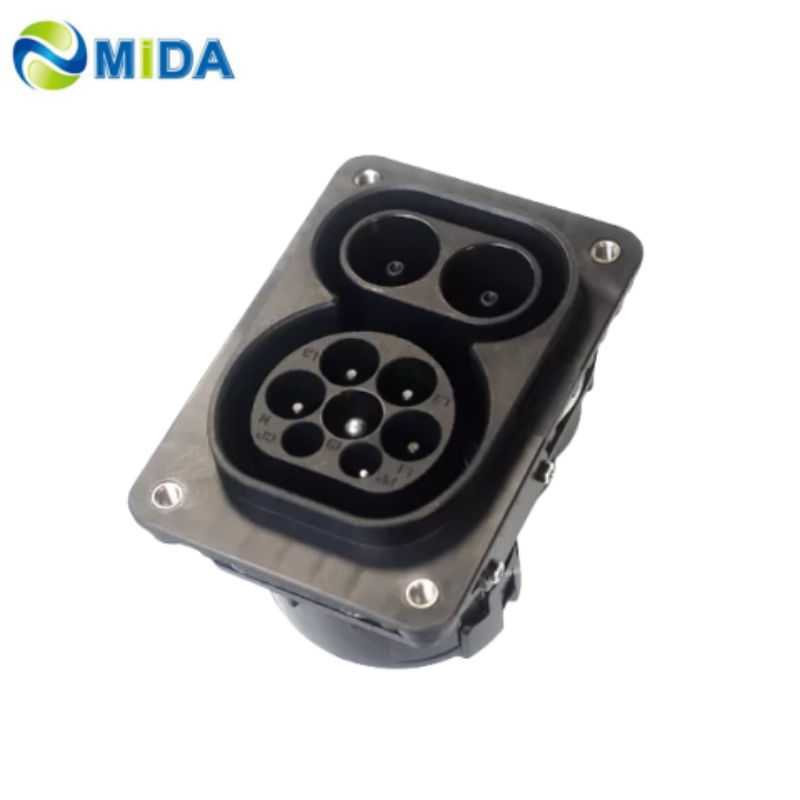

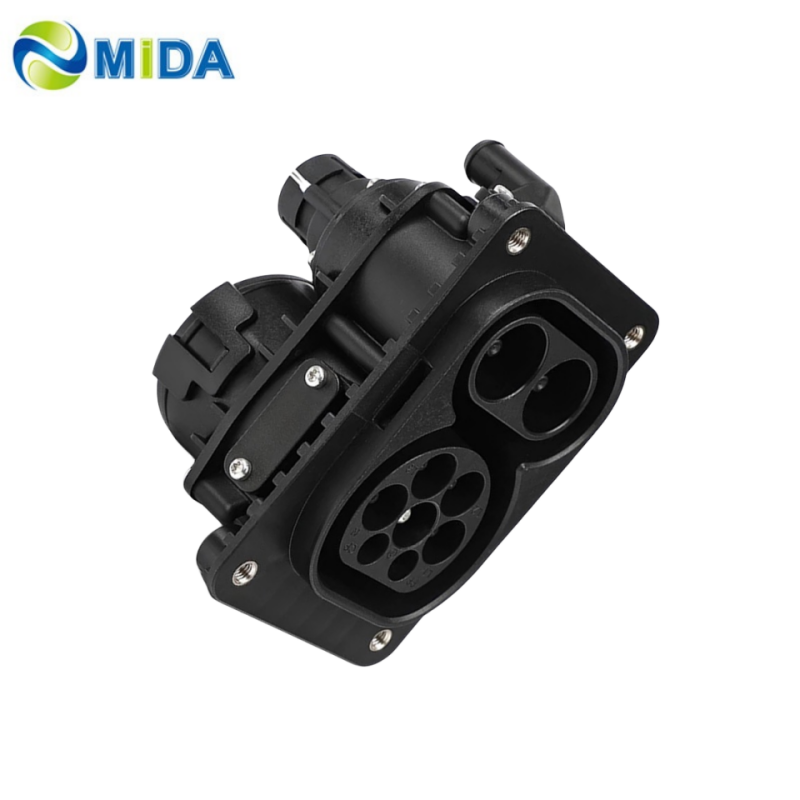

Product Gallery
Core Features & Benefits
Dual Charging Mode
The Combo CCS2 charging socket supports 350A and combines AC Type 2 and DC CCS fast charging in a single, compact inlet for maximum versatility.
Enhanced Safety
Designed with high-grade safety insulation on pinheads to prevent accidental direct contact, ensuring user protection against electric shock.
High Durability
Built with robust materials to ensure longevity, making it a reliable long-term investment for both residential and commercial EV infrastructure.
Market Compatibility
Fully compatible with Type 2 charging connectors, the standard across Europe, eliminating interoperability concerns for EV owners.
Technical Highlights
Full compliance with IEC 62196.3-2022 standards.
High voltage capacity: Rated up to 1000V.
Optional DC current ratings from 80A up to 400A.
Supports AC 16A, 32A, 63A (1/3 phase).
Integrated 12V/24V electronic lock for secure charging.
TUV and CE certification for international quality assurance.
Anti-straight plug dust cover for environmental protection.
Stable temperature rise over 10,000 plug cycles.
Frequently Asked Questions (FAQ)
Q1: What charging standards does this CCS2 socket comply with?A: The socket fully complies with the IEC 62196.3-2022 standard, which is the primary regulatory requirement for European electric vehicle charging systems.
Q2: Can I use this socket for both AC and DC charging?A: Yes, the CCS2 (Combined Charging System) design integrates both Type 2 AC charging and high-speed DC fast charging into a single inlet.
Q3: What is the maximum current rating available for this inlet?A: We offer multiple configurations ranging from 80A to 400A, with the ability to handle peak performance up to 500A depending on the specific model and cooling setup.
Q4: How durable is the CCS2 socket for long-term use?A: The socket is tested for over 10,000 plugging and unplugging cycles, featuring a stable temperature rise and high-quality copper alloy contacts for maximum longevity.
Q5: Does the socket include safety features to prevent electric shock?A: Yes, it is designed with safety-insulated pinheads to prevent accidental direct contact and includes an optional electronic lock (12V/24V) to secure the connection during charging.
Q6: What is the environmental protection rating of the socket?A: The socket provides IP55 protection when not mated (with the dust cover) and IP44 protection when mated with a charging cable, ensuring reliable operation in various weather conditions.
