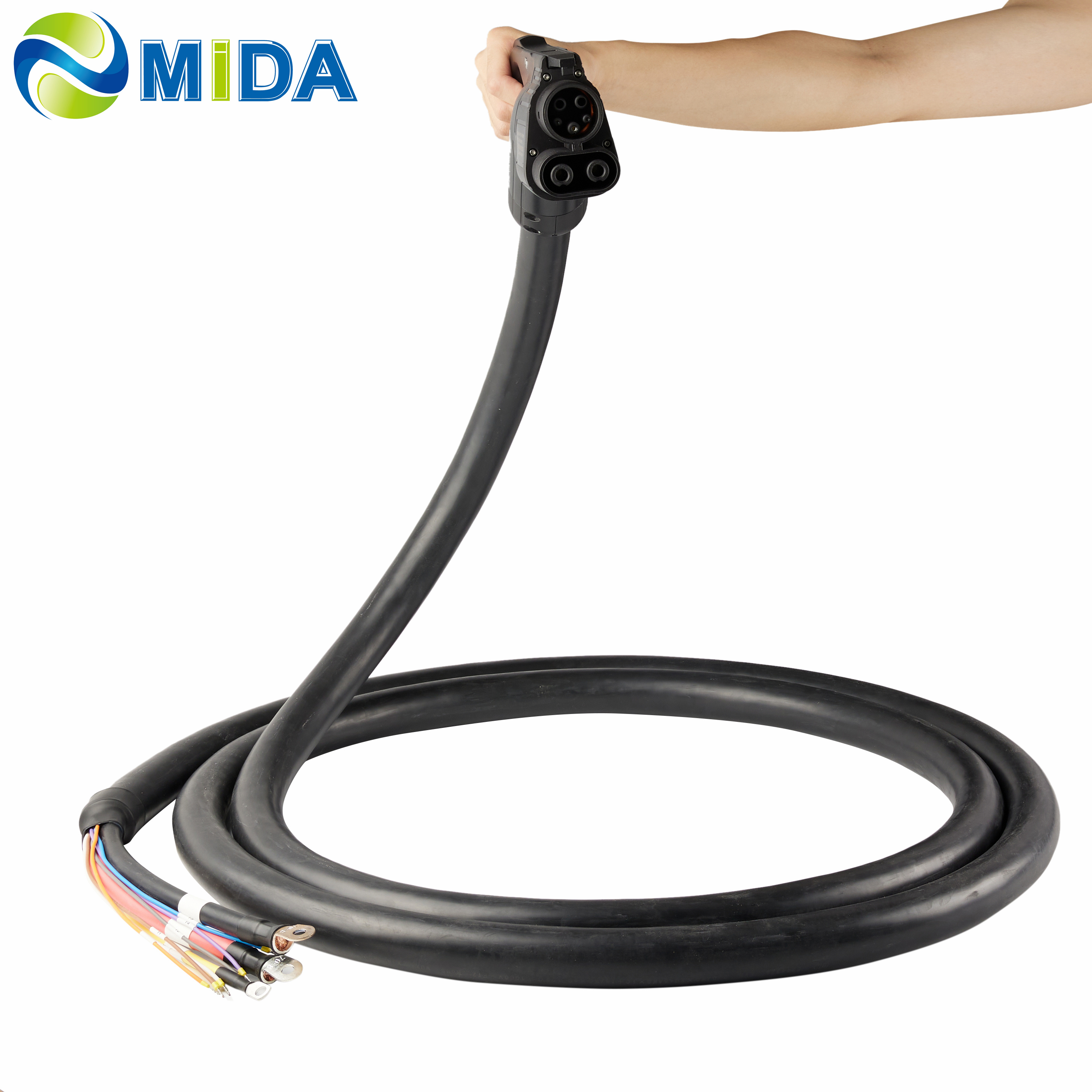

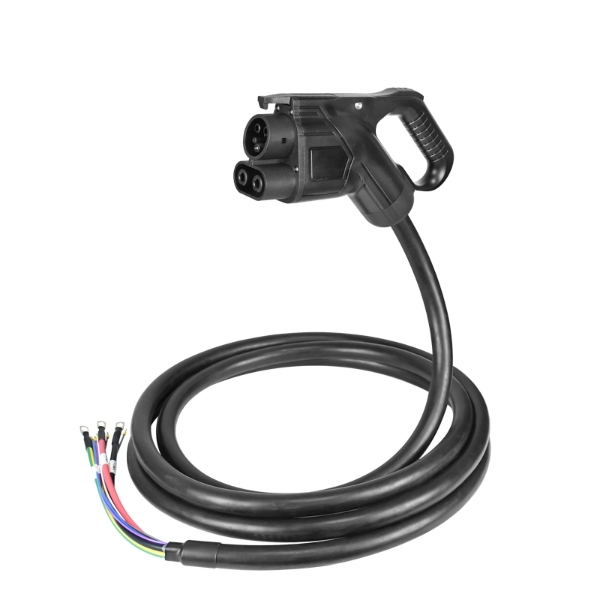

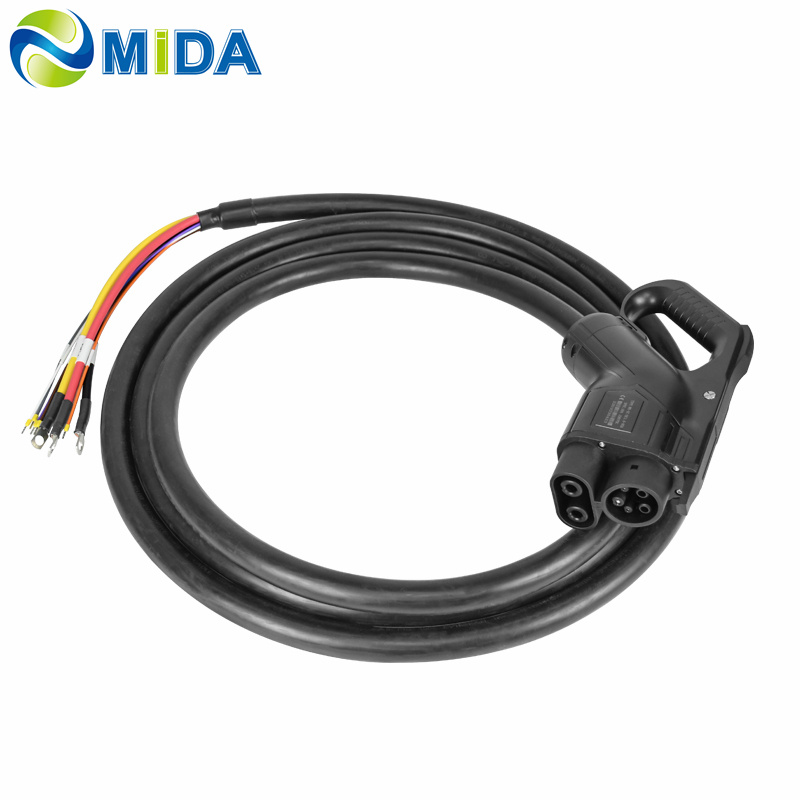

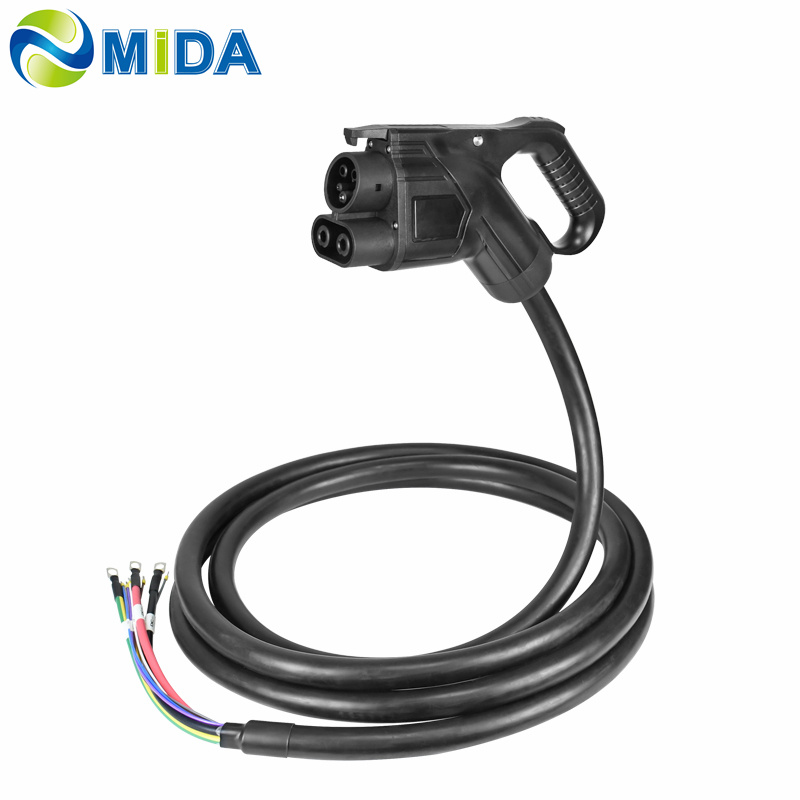

Product Introduction: CCS1 EV plugs are available in 80A to 250A. It’s used in DC fast charging & comply with IEC 62196-3. Combined Charging System (CCS1) is based on open and universal standards for electric vehicles. Our CCS1 plug is used for direct-current charging at a maximum of 250 kW. Universally compatible, high-quality CCS1 Gun EV plugs designed for 10000+ charging cycles.
CCS1 Connector electric car charging plugs integrated temperature sensors (2pcs PT1000) for monitoring the temperature change at the power contacts (between DC+ and DC- terminals). Universally compatible, high-quality CCS1 Gun designed for 10000+ charging cycles. CCS1 Connector is Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard. 80A CCS1 Gun, 125A CCS1 Plug, 200A CCS1 Plug, 250A CCS1 Connector.
1. CCS1 Plug is convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.
2. CCS1 Gun design for use in Combined Charging System applications utilizes proprietary silver-plated contacts for long-life durability supporting AC & DC Charging standards of North America, Asia, Australia and increasingly global standards.
3. 250A CCS1 Gun Terminal Quick-Change DC High Power EV Charging CCS1 UL Rated Connector With UL EV Cable.
4. This CCS1 charging connector can be installed on the DC EV fast charging station as an electric outlet to charge the electric vehicles.
| Features | 1. Meet IEC 62196-3 standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP65 | |
| 4. Max charging power: 150kW, 200KW | |
| Mechanical Properties | 1. Mechanical life: no-load plug in/pull out > 10000 times |
| 2. Impact of external force: can afford 1m drop and 2t vehicle run over pressure | |
| Electrical Performance | 1. DC input: 150A/200A 1000V DC MAX |
| 2. Insulation resistance: > 2000MΩ (DC1000V) | |
| 3. Terminal temperature rise: < 50K | |
| 4. Withstand Voltage: 3200V | |
| 5. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| 2. Pin: Copper alloy, silver + thermoplastic on the top | |
| Environmental | Operating temperature: -30°C ~ +50°C |
Physical Design: CCS1 DC charging connector is the industrial standard interface for fast charging of EV (Electric Vehicle) with charging station. Complying with UL 2251, the CCS1 DC charging connector offers a reliable and user-friendly high-power solution for EV DC fast charging.
Ultrasonic Welding Technology: This technology can make the resistance of the EV tend to zero during the charging process, and reduce the phenomenon of heating up during the DC charging process of the EV.
Voltage Rating: The 80A, 125A, 150A, 200A, 250A CCS1 connector can be used to charge electric vehicles quickly, thanks to its 1,000-volt DC maximum voltage rating. The CCS1 Combo1 connector is the ideal choice for efficient high-speed charging.
Safe Features: The CCS1 connector includes features that protect against overvoltage and overcurrent, short circuit protection, ground fault detection, and integrated temperature monitoring.
Quality Assurance: Designed to withstand more than 10,000 times of plugging and unplugging, ensuring long-term power supply safety. It is solid, durable, and wear-resistant, reducing maintenance costs.
OEM & ODM: Supports simple LOGO customization as well as customization of the entire function and appearance with professional technical support.
High Power Ratings: Designed to handle high currents (80A to 250A), ensuring ultra-fast DC charging speeds significantly reducing the time spent at charging stations.
Versatility and Compatibility: Compatible with all CCS1 EV models on the market, from compact electric cars and SUVs to heavy trucks, buses, and commercial vehicles.
A1: The CCS1 plug complies with IEC 62196-3 and UL 2251 standards, making it suitable for DC fast charging in North America and other global markets.
A2: It supports a maximum charging power of up to 250kW with a voltage rating of 1,000V DC.
A3: The connector features 2pcs PT1000 integrated temperature sensors that monitor temperature changes at the power contacts to ensure safe operation.
A4: The CCS1 Gun is designed for durability, capable of exceeding 10,000 cycles of no-load plugging and unplugging.
A5: Yes, we provide OEM and ODM services, supporting simple logo customization as well as full appearance and functional customization.
A6: The case is made of thermoplastic (UL94 V-0 flame retardant), and the pins are made of copper alloy with silver plating and thermoplastic on the top.
