Product Introduction
Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module. This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.

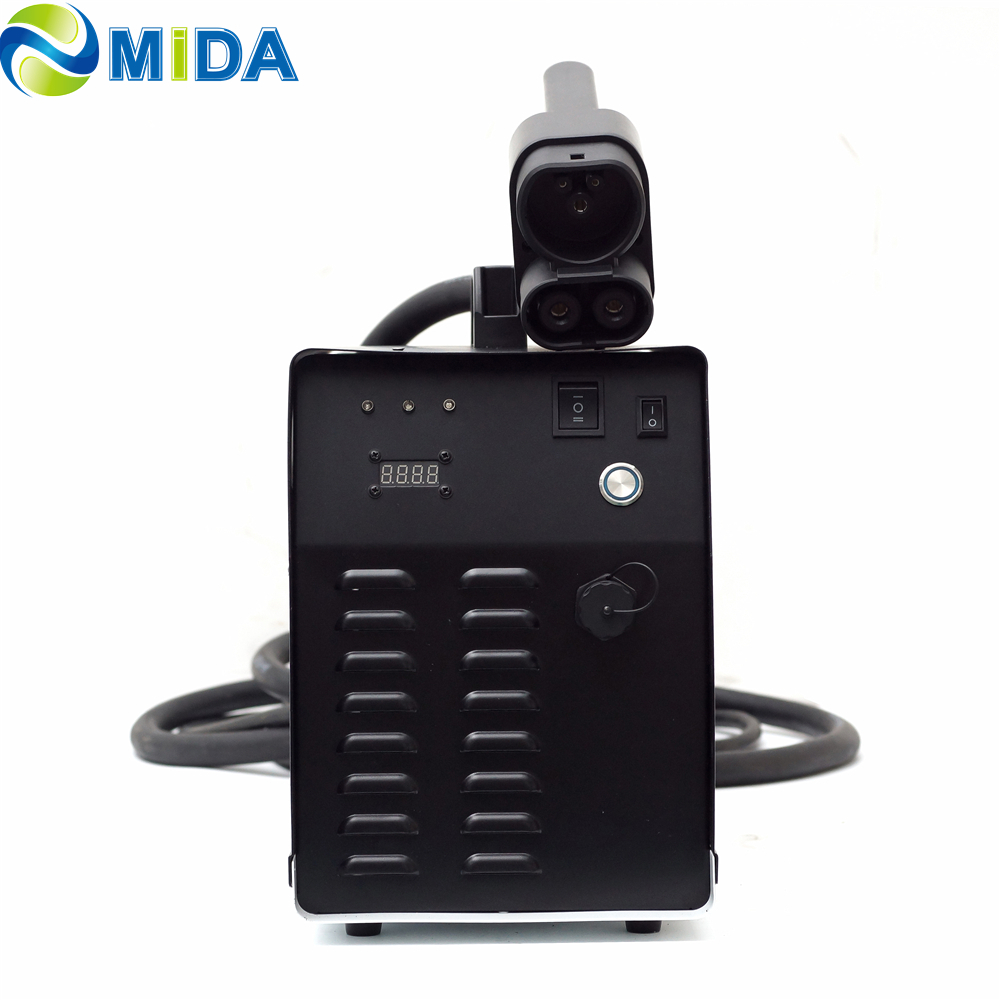

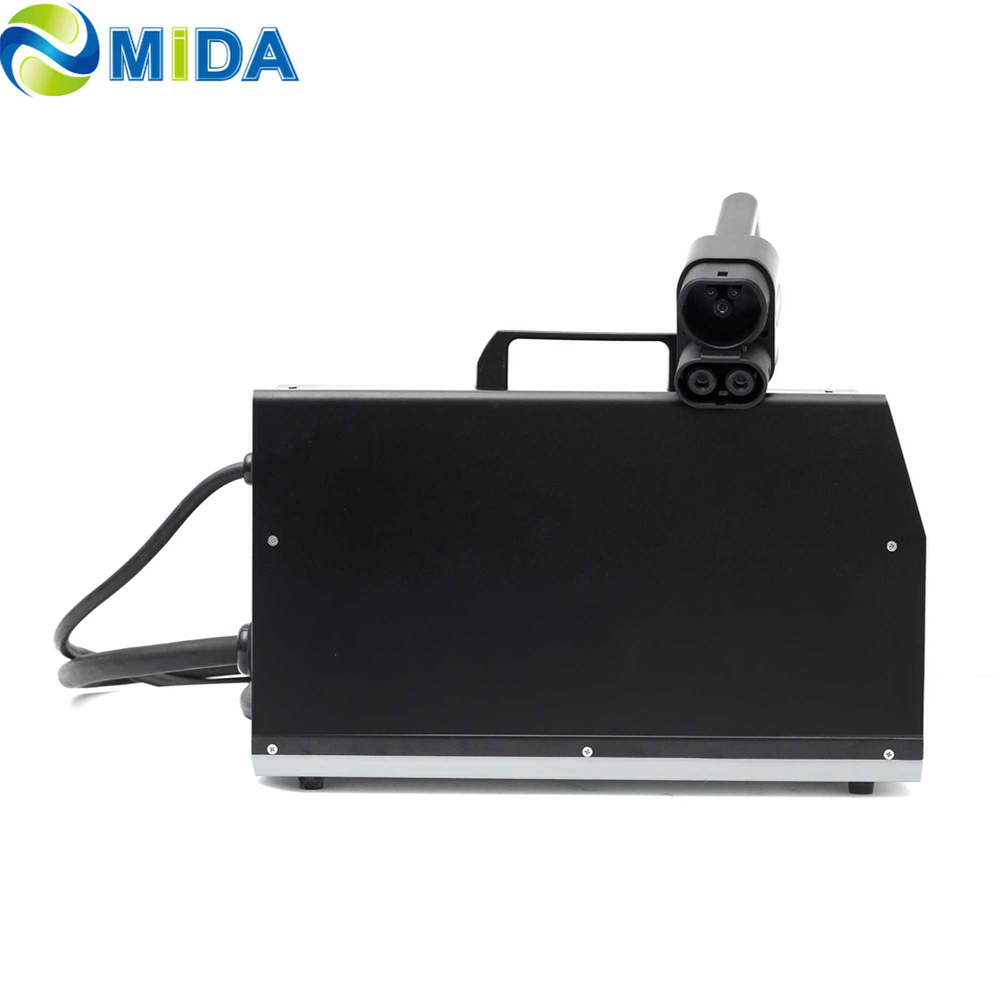

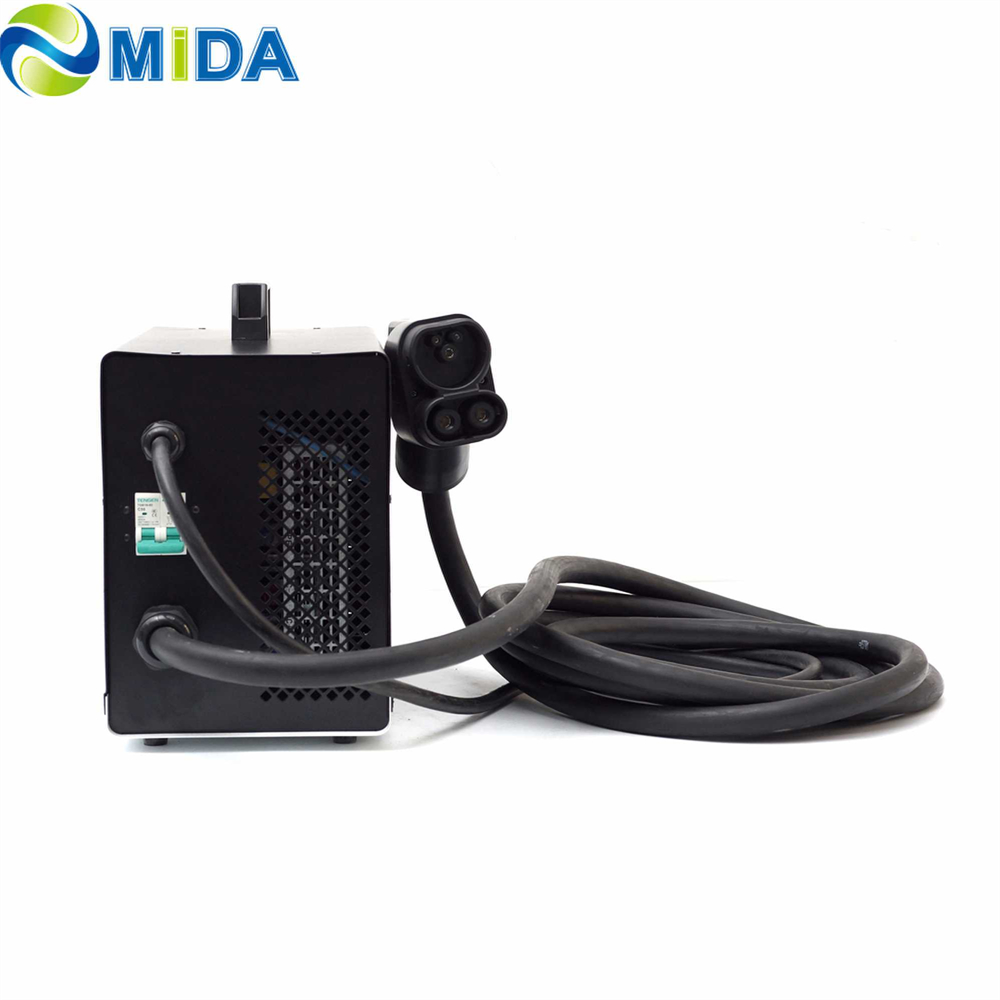

Product Pictures
Product Features
✓
Small size and compact design, easy for portable
✓
It is supporting CCS and CHAdeMO connector
✓
Certification: CE/IEC/ROHS
✓
Protection Degree: IP54
✓
Open door design, it is very convenient to replace power module.
Specification
| 1. Input Rating: 380Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) |
| 3. Max. Input Current: 100A |
| 4. Efficiency: 95% |
| 1. Output Voltage Range: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T) |
| 2. Max. Output Power: 7KW |
| 3. Max. Output Current: 150A@400V, 120A@500V, 80A@750V |
| 1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop |
| 3. Interface: USB, RJ45 |
| 1. Dimension: 690*680*300mm |
| 2. Weight: 20KGS |
| 1. Operating Temperature: -20°C ~ +50°C, power derating from +50°C and above |
| 2. Humidity: 5% ~ 90% RH, non-condensing |
| 3. Altitude: 2000m |
| 4. IP Level: IP23 |
| 1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS |
| 3. Charging protocol: CHAdeMO 2.0/DIN 70121/ISO15118/IEC61851-23 |
Professional Support & Services
1
Warranty: 12 months comprehensive warranty.
2
Trade Assurance: Secure transactions ensuring quality and service standards.
3
Pre-sales Service: Professional advice for generator set choice, configurations, and installation.
4
Production Tracking: Full visibility into the production progress of your order.
5
Customization: Support for customized design, samples, and packing based on requirements.
6
After-sales Support: Free instructions for installation and troubleshooting; free parts available within warranty.
Frequently Asked Questions
Q1: Which EV connectors does this portable charger support?
A: This portable quick charger supports both CCS and CHAdeMO connectors, which can be switched simply by replacing the cable.
Q2: Can I update the firmware of the charger?
A: Yes, the device includes a USB port for firmware updates and an optional RJ45 port for internet connectivity.
Q3: Is the charger easy to maintain?
A: Absolutely. The charger features an open-door design, making it very convenient to access and replace power modules if necessary.
Q4: What are the main protection ratings for this device?
A: The charger is designed with a protection degree of IP54 for general housing and IP23 for specific environmental regulations, ensuring safety in various conditions.
Q5: What is the warranty period and what does it cover?
A: We provide a 12-month warranty. During this time, free instructions for installation, troubleshooting, and free replacement parts are available.
Q6: Does the charger support customized branding?
A: Yes, we support customized designs, samples, and packing according to specific client requirements.
