Product Introduction
Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module. This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.

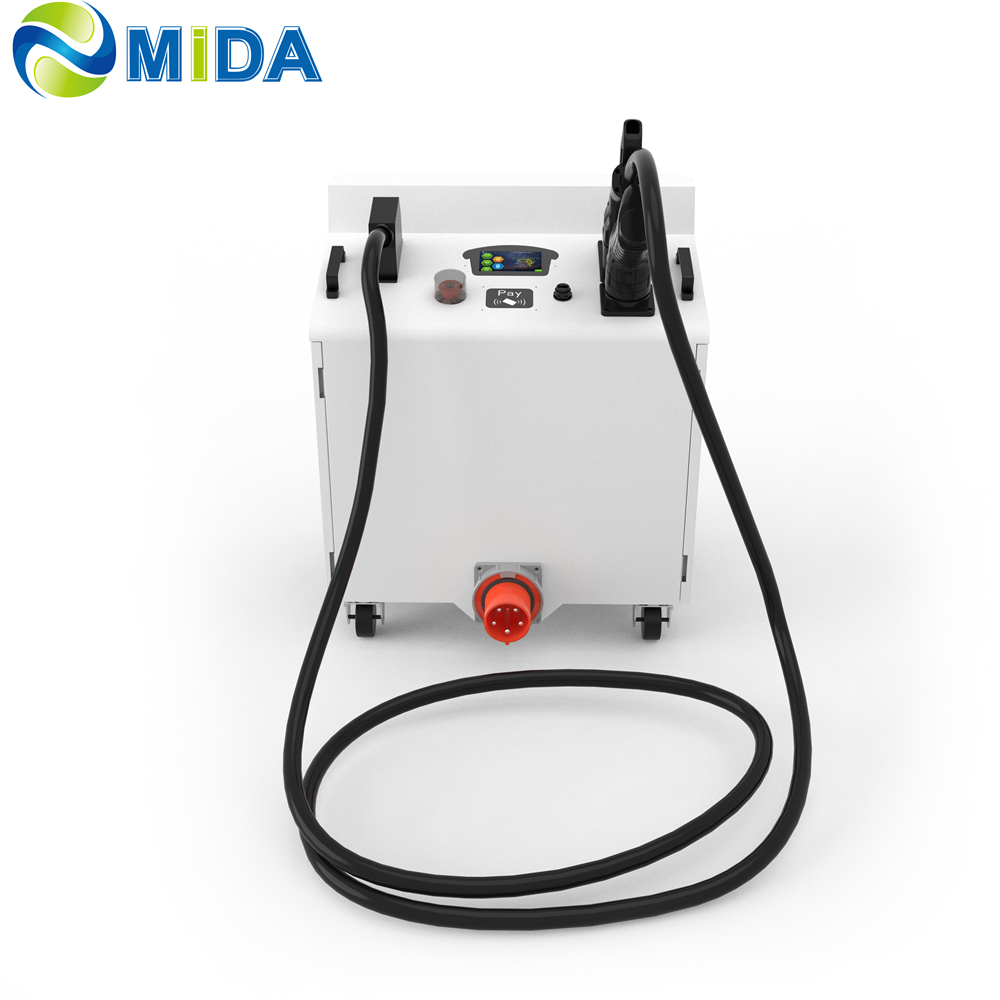

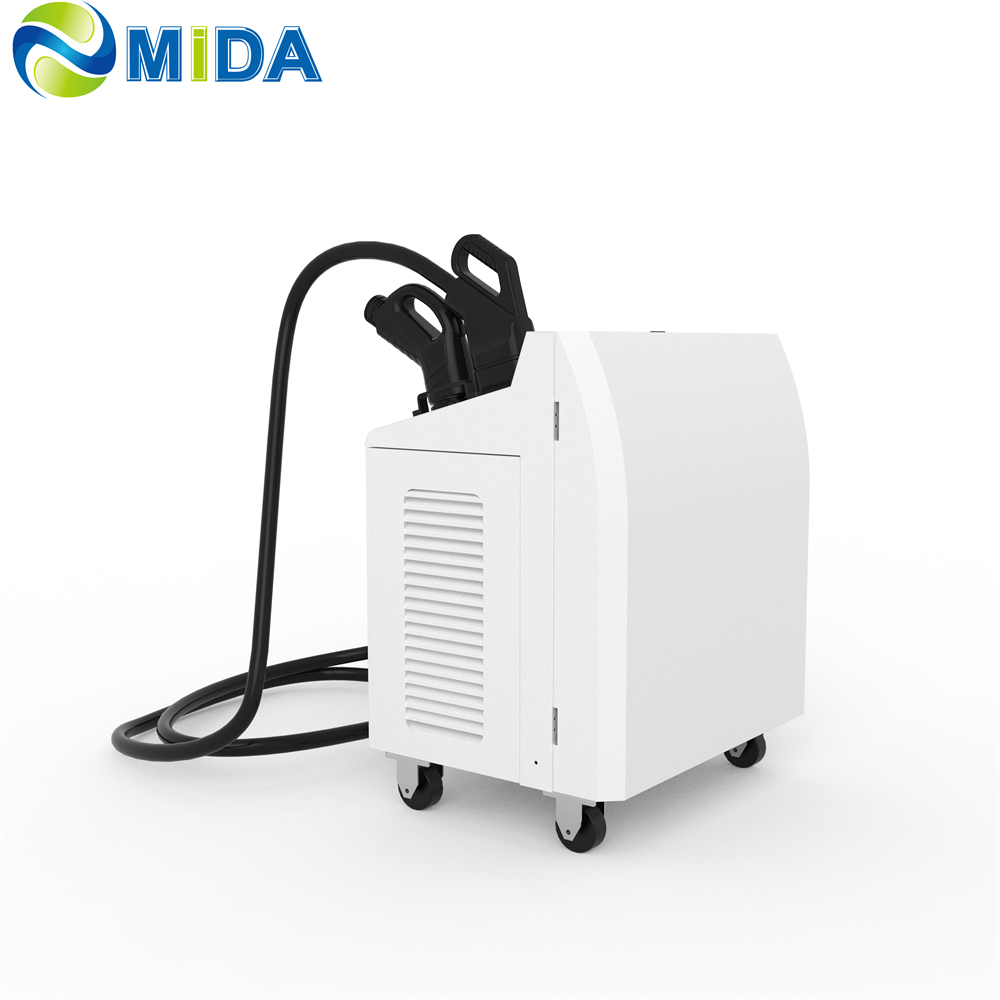

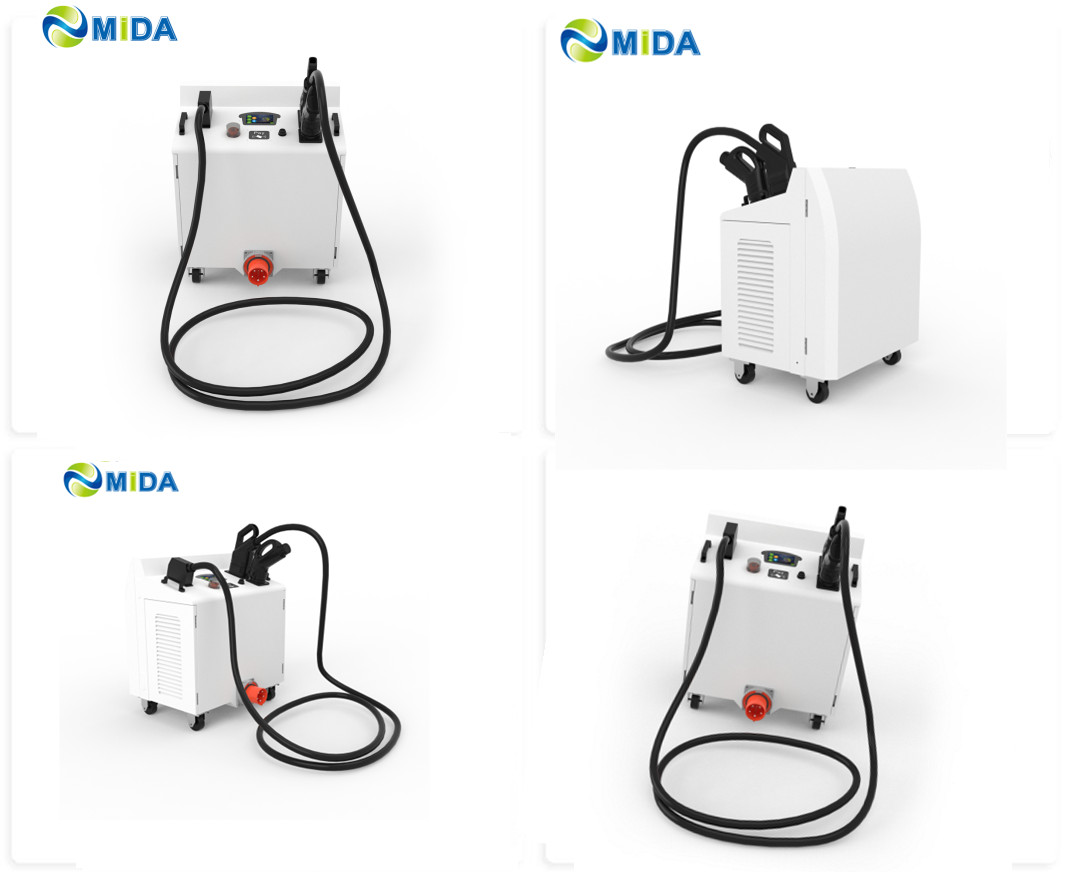

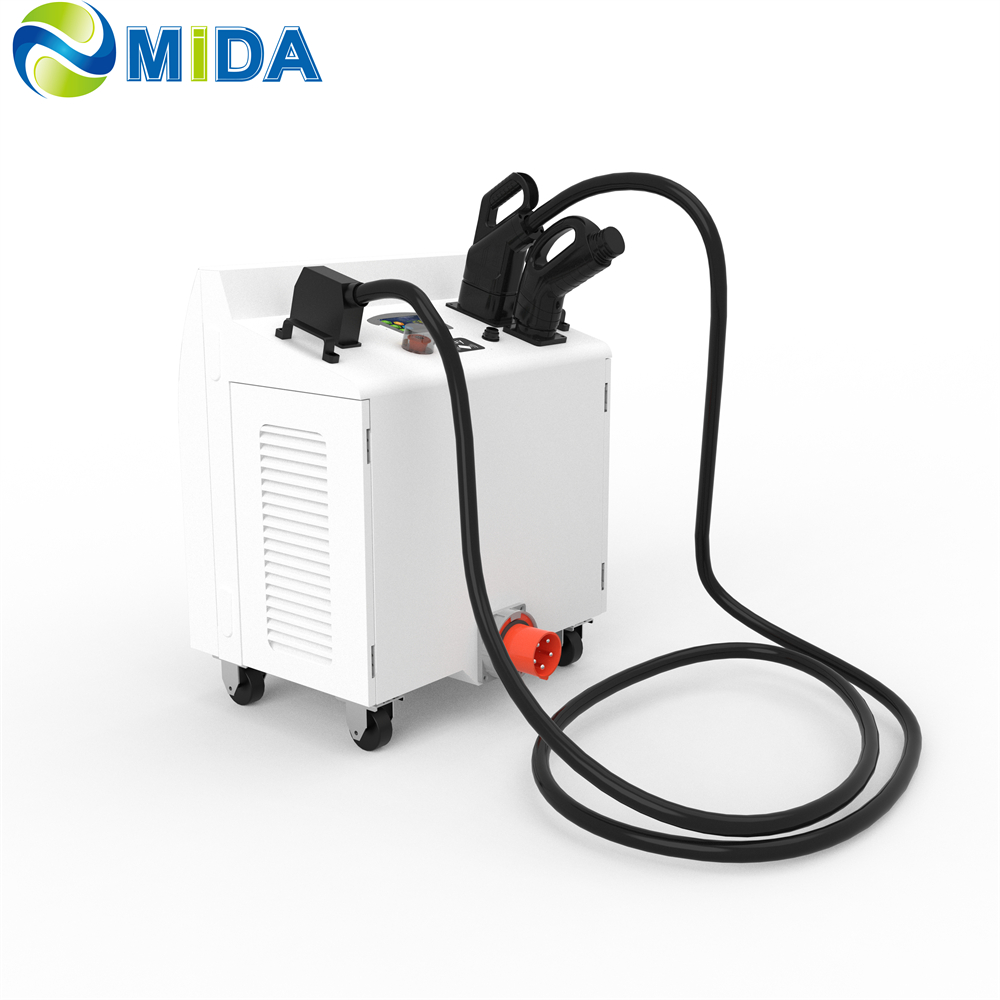

Product Pictures
Product Features
✔️
Small size and compact design, easy for portable
✔️
It is supporting CCS and CHAdeMO connector
✔️
Certification: CE / IEC / ROHS
✔️
Protection Degree: IP54
✔️
Open door design, it is very convenient to replace power module.
Specification
| AC Input |
1. Input Rating: 380Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) |
| 3. Max. Input Current: 70A |
| 4. Efficiency: 95% |
| DC Output |
1. Output Voltage Range: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T) |
| 2. Max. Output Power: 45KW |
| 3. Max. Output Current: 90A@500V |
| User Interface |
1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop |
| 3. Interface: USB, RJ45 |
| Packing |
1. Dimension: 600*600*240mm |
| 2. Weight: 55KGS |
| Environment |
1. Operating Temperature: -20°C ~ +50°C (derating above +50°C) |
| 2. Humidity: 5% ~ 90% RH, non-condensing |
| 3. Altitude: 2000m |
| 4. IP Level: IP23 |
| Regulation |
1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS |
| 3. Charging protocol: CHAdeMO 2.0 / DIN 70121 / ISO15118 / IEC61851-23 |
Our Service Commitment
01
Warranty: 12 months comprehensive warranty time.
02
Trade Assurance: Safe deals guaranteed for money, quality, and service.
03
Pre-sales Service: Professional advice on generator sets, configurations, and installation.
04
Production Service: Real-time tracking of production progress for full transparency.
05
After-sales Service: Free installation instructions, troubleshooting, and free parts within warranty.
06
Customization: Support for customized designs, samples, and packing per requirements.
Frequently Asked Questions
What charging standards does this portable charger support?
It supports CCS, CHAdeMO, and GB/T standards. You can switch between CCS and CHAdeMO simply by replacing the cable.
What is the maximum output power and efficiency?
The maximum output power is 45KW with an impressive efficiency rating of 95%.
Is the charger suitable for outdoor use?
The unit features an IP54 protection degree for the main components and an IP23 environment level, making it durable for various installation environments.
How can I update the charger's firmware?
The charger is equipped with a USB port for convenient firmware updates and an optional RJ45 port for internet connectivity.
What kind of after-sales support do you provide?
We offer a 12-month warranty, free installation instructions, troubleshooting support, and provide free replacement parts during the warranty period.
Can I customize the product packaging?
Yes, we support customized designs, samples, and specialized packing according to specific client requirements.
