Product Introduction

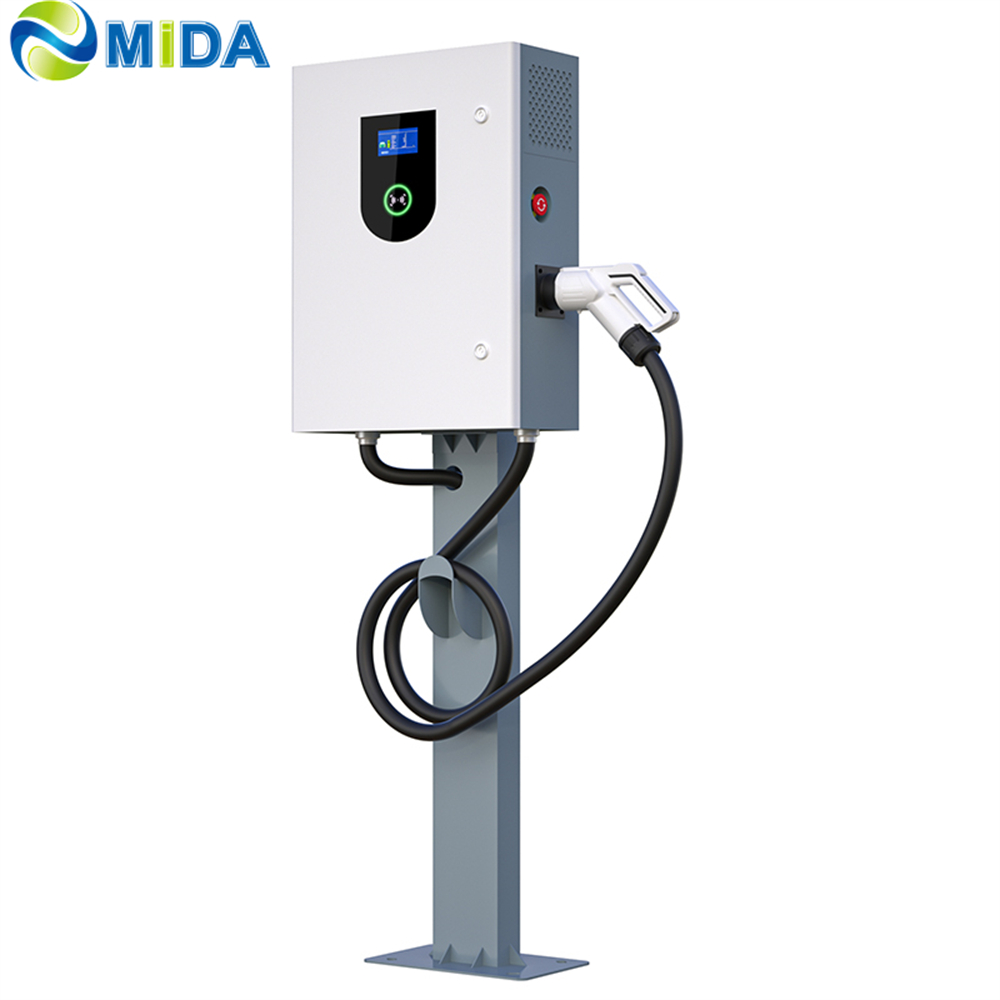

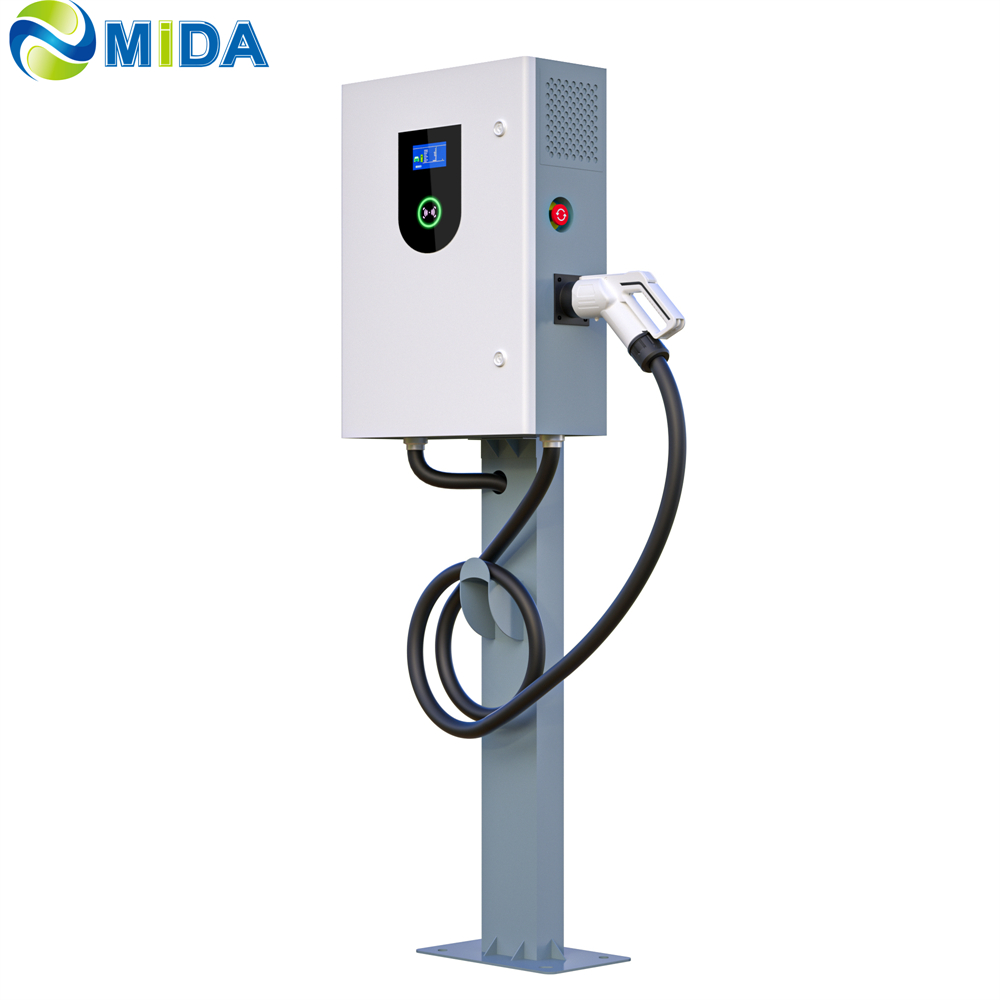

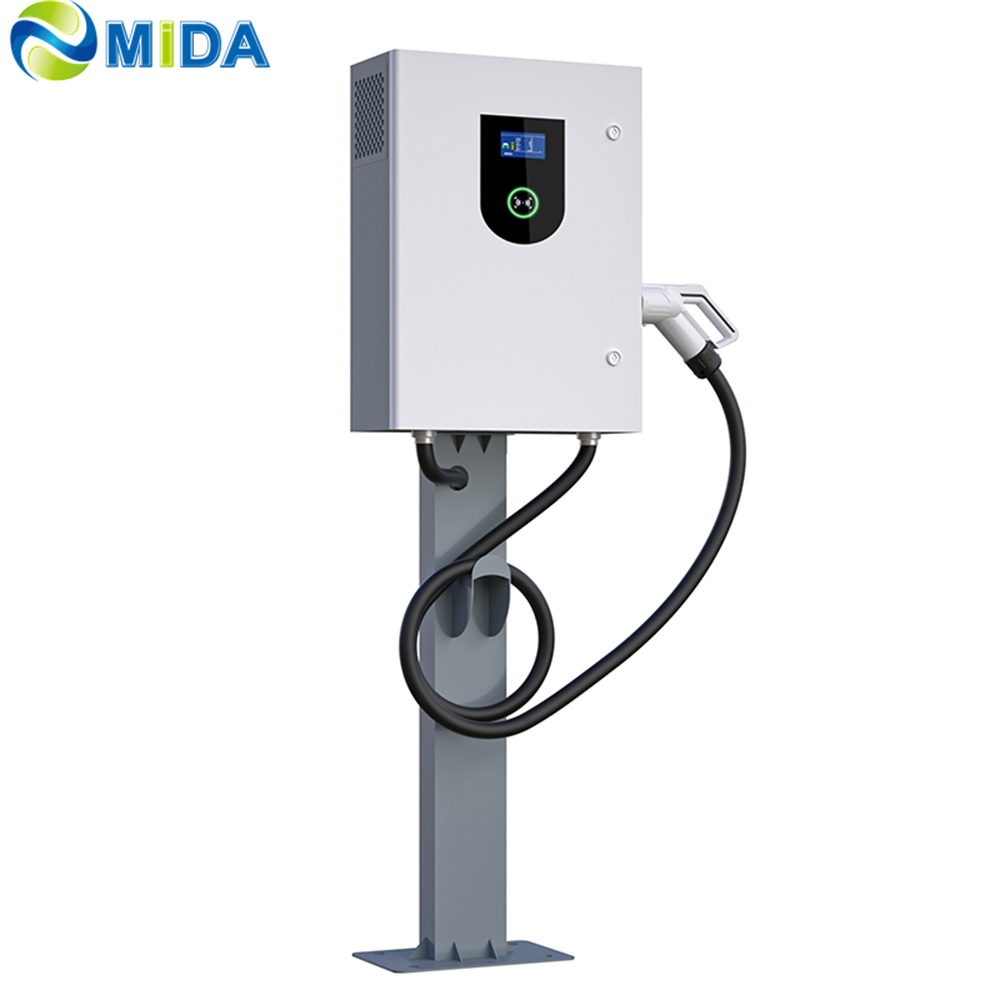

The Multiple output of 30KW Wall-mounted Fast Charger can choose different connectors, such as CCS1, CCS2, CHAdeMO, GB/T. It can Fast-charge any CCS, CHAdeMO, GB/T vehicle. With high charging efficiency, charging takes less than 1 hour. The charger is safe and intuitive to use with an emergency stop button. Optional network integration (OCPP or proprietary protocol) is available, providing maximum convenience for your charging needs.
Product Features
✓ Dynamic power share (only suitable for 40KW)
✓ Stand alone or network integrated charger
✓ Local or remote monitoring and control
✓ DC power up to 30KW
Technical Specification
| AC Input |
1. Input Rating: 380Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) |
| 3. Max. Input Current: 60A |
| 4. Efficiency: 96% |
| DC Output |
1. Output Voltage Range: 200V-750V |
| 2. Max. Output Power: 30KW |
| 3. Max. Output Current: 60A@350V, 28A@750V |
| User Interface |
1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop |
| 3. Communication: VPN/DNS/Cloud, WiFi, RJ45, 3/4G (GSM/CDMA), Modbus TCP, PLC |
| Packing |
1. Dimension: 645*220*450mm |
| 2. Weight: 240KGS |
| Environment |
1. Operating Temperature: -20°C ~ +50°C (power derating above +50°C) |
| 2. Humidity: 5% ~ 90% RH, non-condensing |
| 3. Altitude: 2000m |
| 4. IP Level: IP54 |
| Regulation |
1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS, TUV, CSA, UL, IEC |
| 3. Charging protocol: CHAdeMO 2.0 / DIN 70121 / OCPP 1.6 (JSON or SOAP) / ISO 15118 |
Our Support & Services
Warranty Period: 12 months comprehensive warranty.
Trade Assurance: Guaranteed deal security regarding payment, quality, and service.
Pre-sales Consultation: Professional advice for charger selection, configuration, and installation planning.
Production Tracking: Real-time progress monitoring during the manufacturing process.
After-sales Support: Free instructions for installation and troubleshooting; free replacement parts within warranty.
Customization: Support for customized designs, samples, and packaging based on specific requirements.
Frequently Asked Questions
Q1: Which EV standards does this 30KW charger support?
A: The charger is highly versatile and supports CCS1, CCS2, CHAdeMO, and GB/T connectors, making it compatible with almost all fast-charging electric vehicles.
Q2: How fast can it charge an electric vehicle?
A: With its 30KW DC fast-charging capability, most vehicles can reach a significant charge level in less than 1 hour, depending on the battery capacity.
Q3: Is the charger suitable for outdoor installation?
A: Yes, the charger has an IP54 protection rating, making it resistant to dust and water splashes, suitable for various environmental conditions.
Q4: Does the charger support remote management?
A: Yes, it supports OCPP 1.6 (JSON or SOAP) and features multiple communication options like WiFi, RJ45, and 3G/4G for local or remote monitoring.
Q5: What safety features are included?
A: The unit includes a prominent emergency stop button, meets IEC61851-1 regulations, and holds certifications such as CE, ROHS, TUV, and UL.
Q6: What kind of after-sales support do you provide?
A: We provide a 12-month warranty, free installation instructions, troubleshooting support, and free replacement parts during the warranty period.
