1. CCS2 EV plugs are available in 60A to 500A. It is used in DC fast charging and complies with IEC 62196-3 (EN 62196-3) standards.
2. Combined Charging System (CCS) is based on open and universal standards for electric vehicles. Our CCS Type 2 plug is used for direct-current charging at a maximum of 350 kW. Universally compatible, high-quality CCS2 Gun EV plugs are designed for 10,000+ charging cycles.
3. CCS 2 Connector electric car charging plugs feature integrated temperature sensors (2pcs PT1000) for monitoring temperature changes at the power contacts (between DC+ and DC- terminals). Developed and produced in accordance with IATF 16949 automotive and ISO 9001 standards. Options include 200A, 250A, 300A, and 350A CCS2 variants.
1. CCS2 Plug provides convenient charging for Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles (EV).
2. Designed for Combined Charging System applications using proprietary silver-plated contacts for long-life durability. Supports AC & DC charging standards across Europe, Asia, Australia, and global markets.
3. Available in Air Cooling and Liquid Cooling configurations for 250A, 300A, and 350A CCS2 EV plugs.
4. High-power Liquid Cooling CCS Combo 2 Plugs support 400A and 500A with quick-change DC terminals for ultra-high-speed charging.
| General Features | 1. Meet 62196-3 IEC 2011 SHEET 3-Im standard |
| 2. Concise appearance, support back installation | |
| 3. Back Protection class IP55 | |
| 4. Max DC charging power: 300kW | |
| 5. AC Max charging power: 45.36kW | |
| Mechanical Properties | 1. Mechanical life: no-load plug in/pull out > 10000 times |
| 2. Impact force resistance: 1m drop and 2t vehicle run-over pressure | |
| Electrical Performance | 1. DC input: 300A 1000V DC MAX |
| 2. AC input: 16A 32A 63A 240/415V AC MAX | |
| 3. Insulation resistance: > 2000MΩ (DC1000V) | |
| 4. Terminal temperature rise: < 50K | |
| 5. Withstand Voltage: 3200V | |
| 6. Contact resistance: 0.5mΩ Max | |
| Applied Materials | 1. Case Material: Thermoplastic, flame retardant grade UL94 V-0 |
| 2. Pin: Copper alloy, silver + thermoplastic on the top | |
| Environment | Operating temperature: -30°C to +50°C |

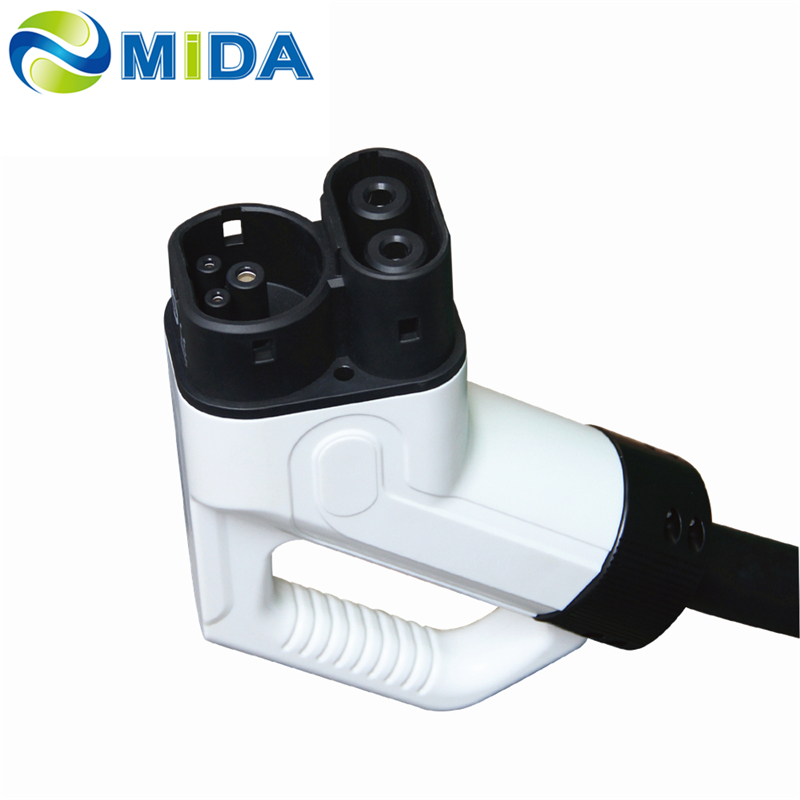

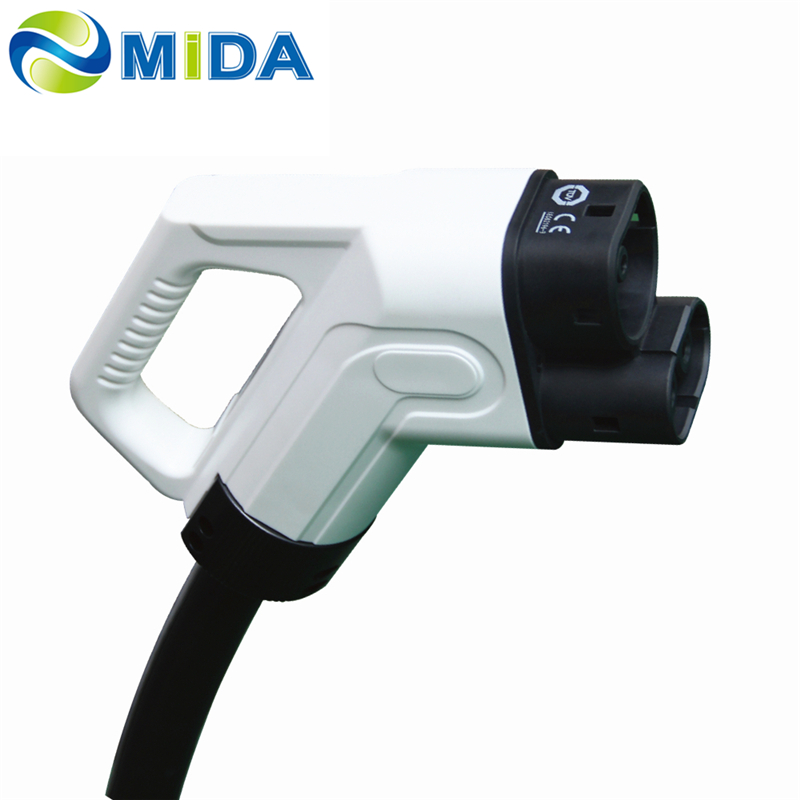

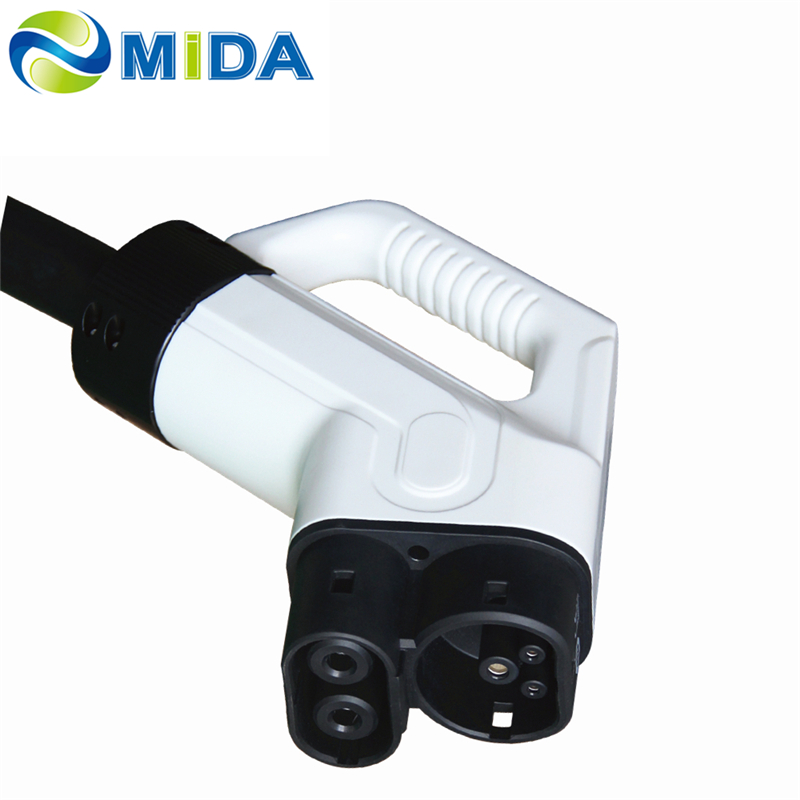

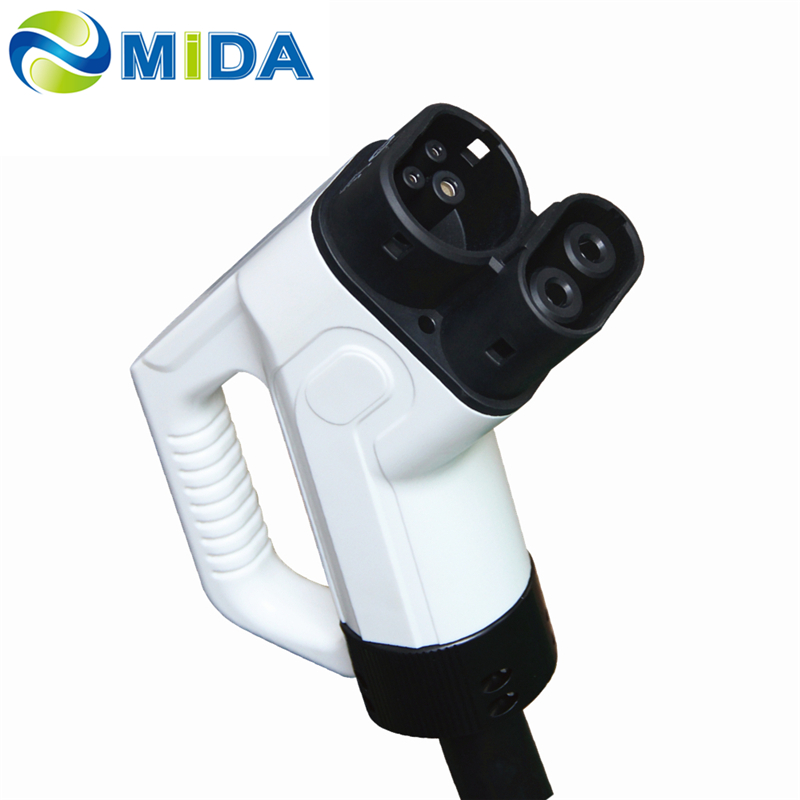

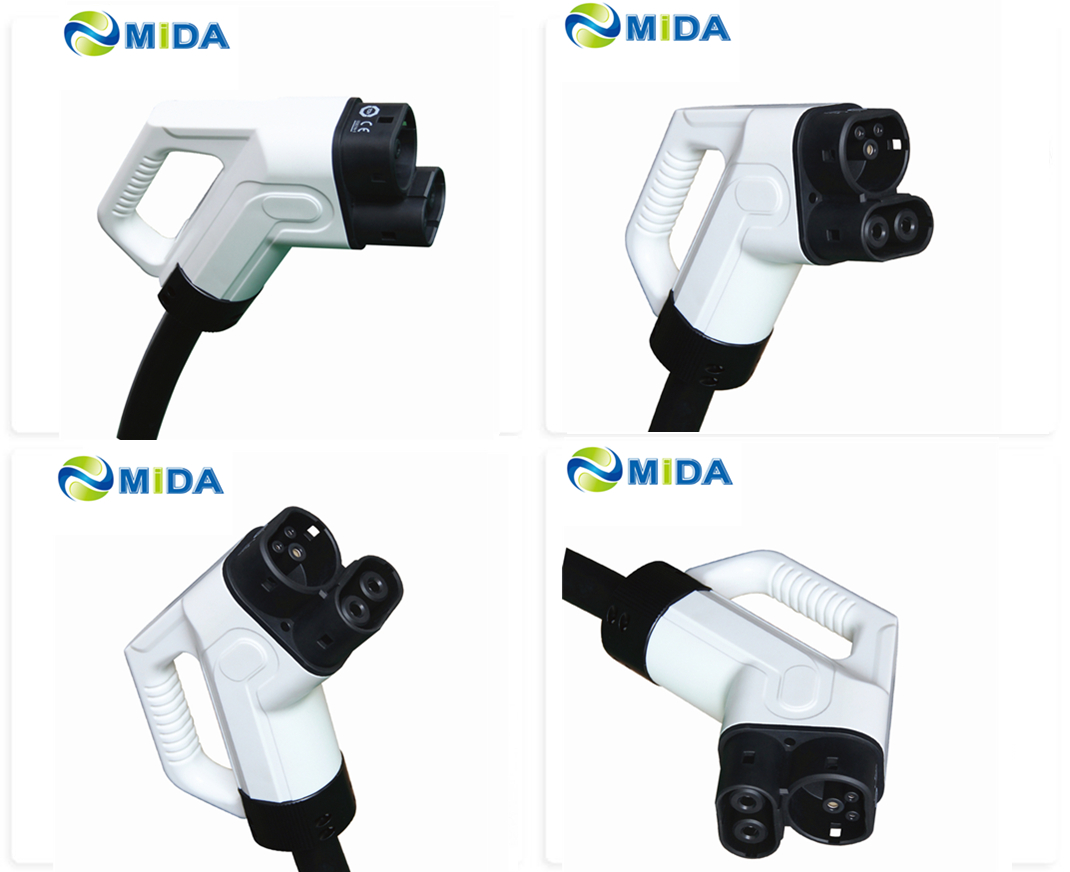

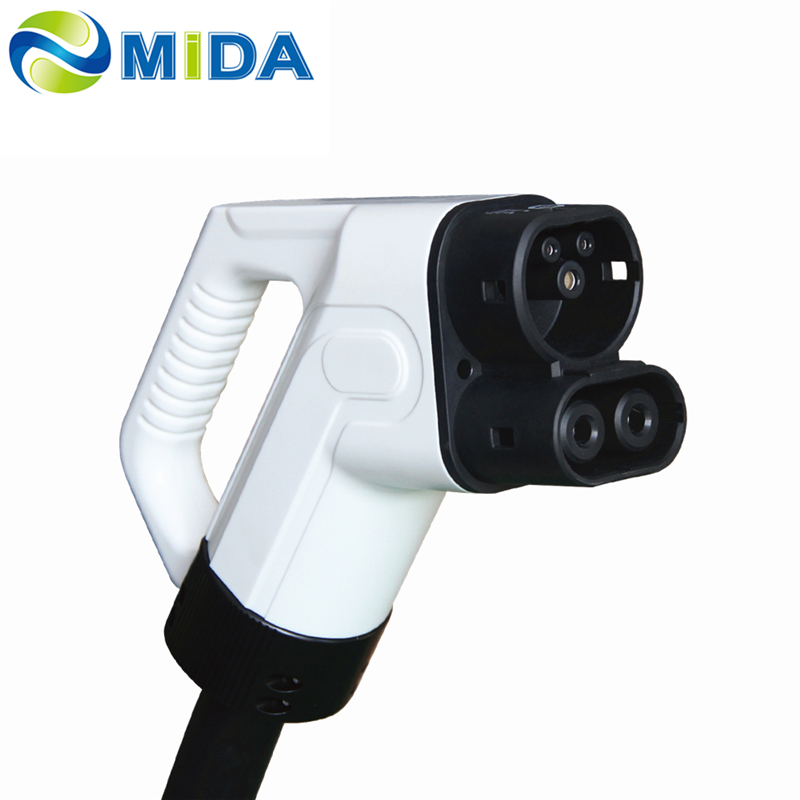

Physical Design: The CCS2 Gun is an EV connector complying with the IEC62196 standard. It is compatible with both AC and DC charging modes using dedicated pins for each.
Ultrasonic Welding Technology: This technology minimizes resistance during the charging process, significantly reducing heat buildup during high-power DC charging.
Voltage Rating: Rated for a maximum of 1,000 volts DC, the 250A to 350A connectors are ideal for fast and efficient electric vehicle charging.
Safe Features: Integrated safety systems protect against overvoltage, overcurrent, short circuits, and ground faults. Real-time temperature monitoring ensures operational safety.
Quality Assurance: Designed to withstand over 10,000 plugging cycles, these plugs offer durability and wear resistance, reducing long-term maintenance costs for charging operators.
OEM & ODM Services: We support logo customization as well as full appearance and functional customization tailored to your brand requirements.
High Power Ratings: Capable of handling 300A, 350A, 400A, and 500A, ensuring ultra-fast DC charging speeds to reduce station dwell time.
Versatility: Fully compatible with all CCS2 EV models on the market, from compact cars and SUVs to heavy trucks and buses.
