Product Introduction

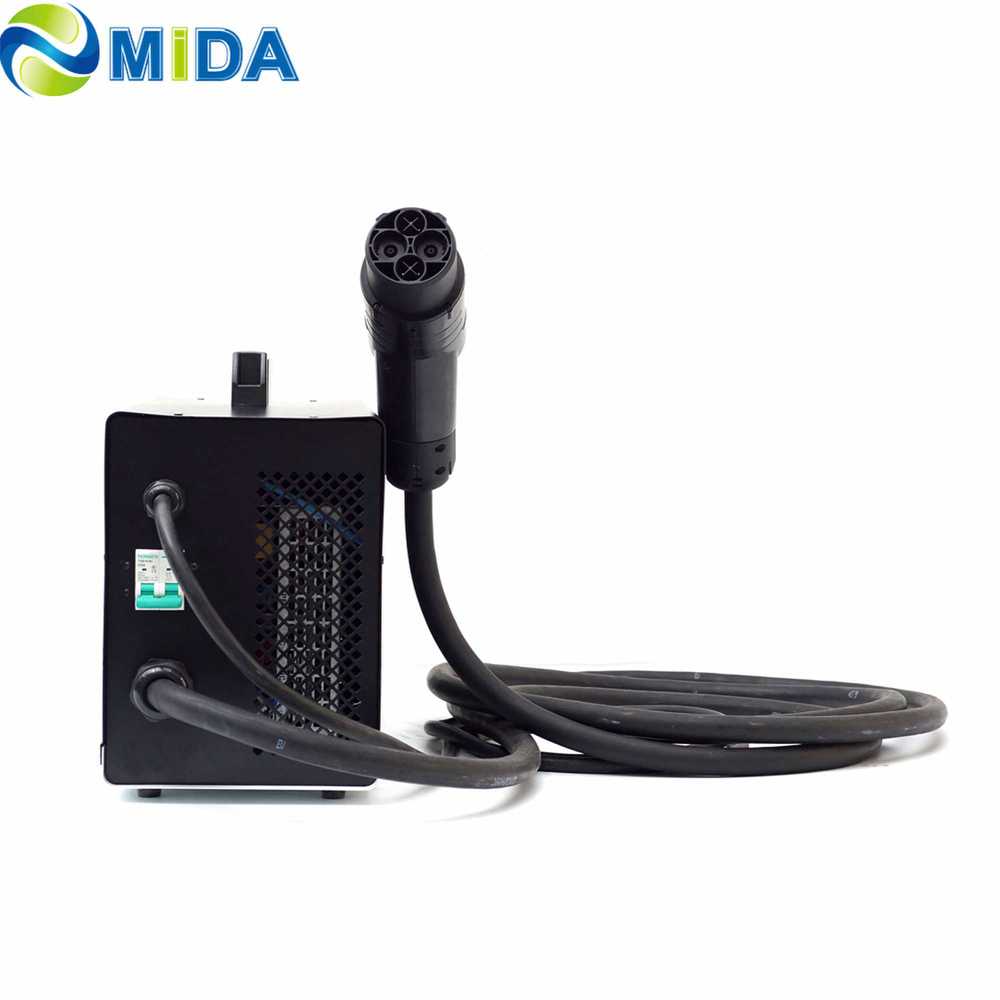

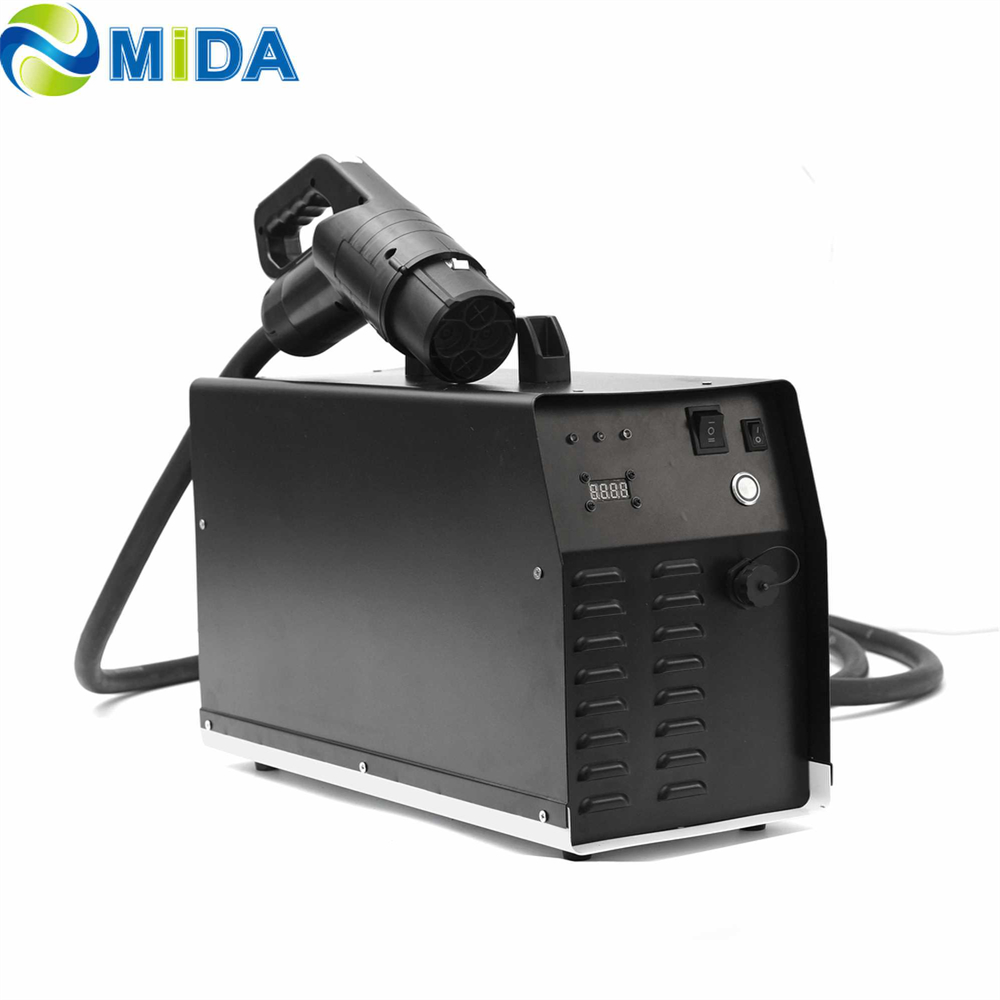

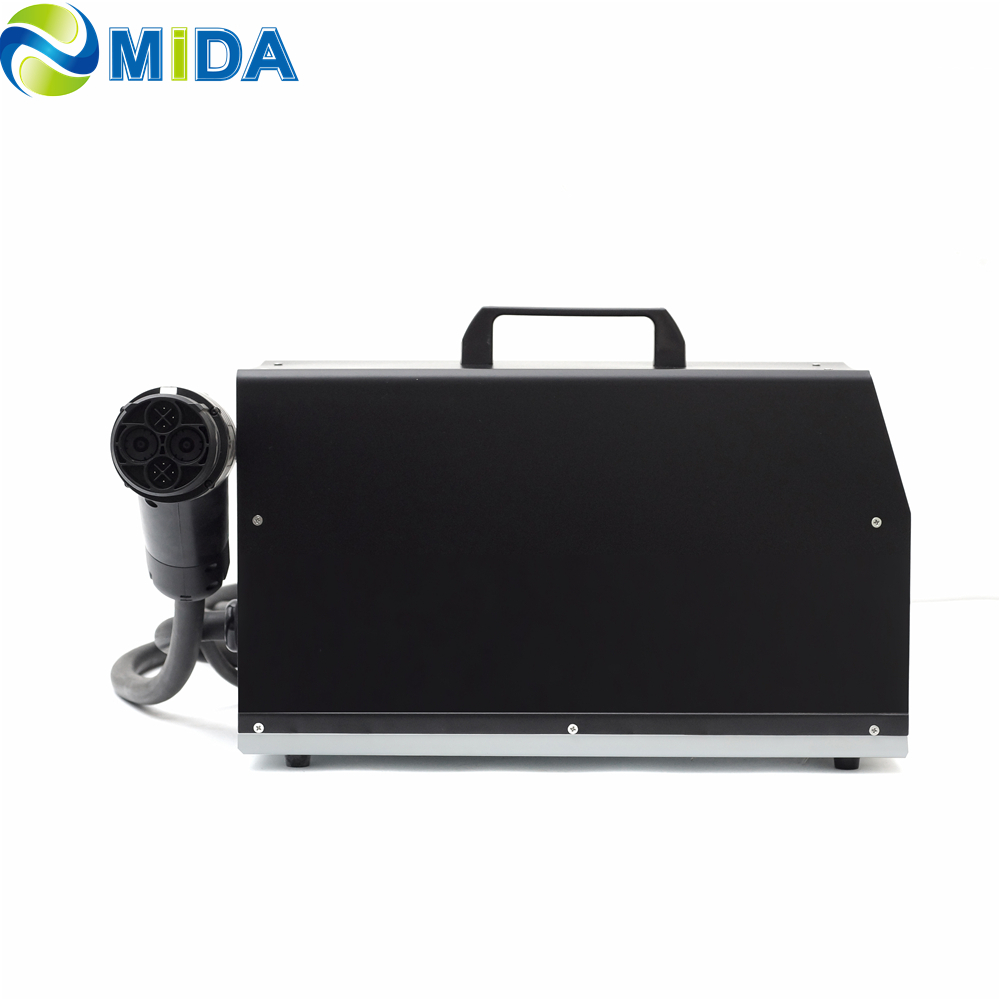

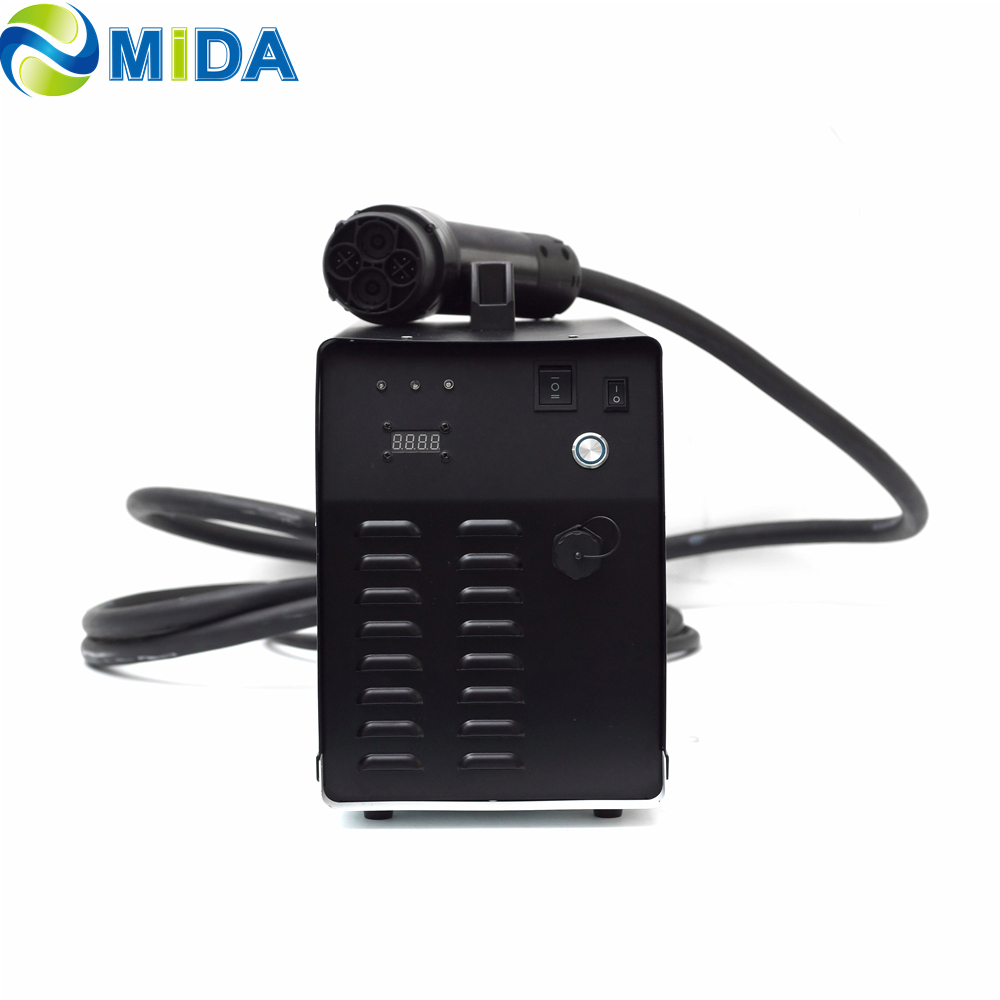

Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module. This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.
Product Features
- ⚡ Small size and compact design, easy for portable
- ⚡ It is supporting CCS and CHAdeMO connector
- ⚡ Certification: CE / IEC / ROHS
- ⚡ Protection Degree: IP54
- ⚡ Open door design, very convenient to replace power module
Specification
| 1. Input Rating: 380Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) |
| 3. Max. Input Current: 100A |
| 4. Efficiency: 95% |
| 1. Output Voltage Range: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T) |
| 2. Max. Output Power: 7KW |
| 3. Max. Output Current: 150A@400V, 120A@500V, 80A@750V |
| 1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop |
| 3. Interface: USB, RJ45 |
| 1. Dimension: 690*680*300mm |
| 2. Weight: 20KGS |
| 1. Operating Temperature: -20°C ~ +50°C |
| 2. Humidity: 5% ~ 90% RH, non-condensing |
| 3. Altitude: 2000m |
| 4. IP Level: IP23 |
| 1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS |
| 3. Charging protocol: CHAdeMO 2.0 / DIN 70121 / ISO15118 / IEC61851-23 |
Our Service Commitment
1 Warranty time: 12 months.
2 Trade-assurance purchase: Make the safe deal, no matter money, quality or service, all is guaranteed!
3 Service before sales: Professional advice for generator set choice, configurations, installation, and investment amount to help you find what you want.
4 Production service: Keep tracking for the progress of production, so you know exactly how products are produced.
5 Service after sales: Free instructions for installation, trouble shooting, etc. Free parts are available within warranty time.
6 Customized Support: Support customized design, sample and packing according to client requirements.
Frequently Asked Questions
Q1: Which EV connectors does this portable charger support?
A1: It supports both CCS and CHAdeMO connectors, which can be easily switched by replacing the cable.
Q2: Can the charger firmware be updated?
A2: Yes, the charger features a USB port specifically for firmware updates and an optional RJ45 port for internet connectivity.
Q3: What is the protection rating for this unit?
A3: The unit features a protection degree of IP54 for general use and IP23 for specific environmental conditions as per technical specifications.
Q4: How efficient is the power conversion?
A4: The charger is highly efficient with an efficiency rating of approximately 95%.
Q5: Is it easy to maintain or repair?
A5: Yes, the open-door design makes it very convenient to access and replace the power module if needed.
Q6: What is the warranty period for this charger?
A6: We provide a 12-month warranty along with free instructions for installation and troubleshooting.
