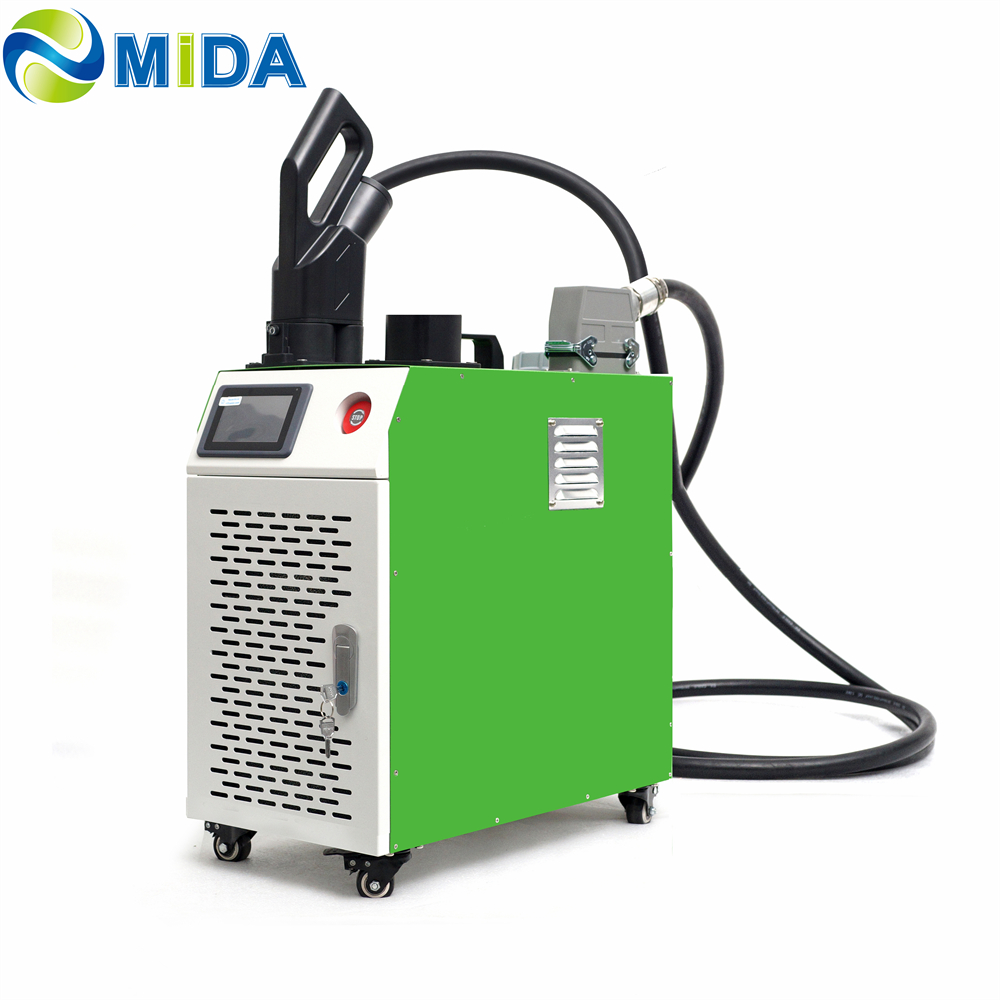

Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module. This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.
| AC Input | 1. Input Rating: 380Vac ± 15% |
| 2. AC Input Connection: 3P+N+PE (Wye connection) | |
| 3. Max. Input Current: 70A | |
| 4. Efficiency: 95% | |
| DC Output | 1. Output Voltage Range: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T) |
| 2. Max. Output Power: 60KW | |
| 3. Max. Output Current: 150A@400V, 120A@500V, 80A@750V | |
| User Interface | 1. TFT-LCD Touch Panel: 4.3' touch display |
| 2. Push Buttons: Emergency Stop | |
| 3. Interface: USB, RJ45 | |
| Packing | 1. Dimension: 600*600*240mm |
| 2. Weight: 50KGS | |
| Environment | 1. Operating Temperature: -20°C ~ +50°C, power derating from +50°C and above |
| 2. Humidity: 5% ~ 90% RH, non-condensing | |
| 3. Altitude: 2000m | |
| 4. IP Level: IP23 | |
| Regulation | 1. Regulation: IEC61851-1 |
| 2. Certification: CE, ROHS | |
| 3. Charging protocol: CHAdeMO 2.0 / DIN 70121 / ISO15118 / IEC61851-23 |

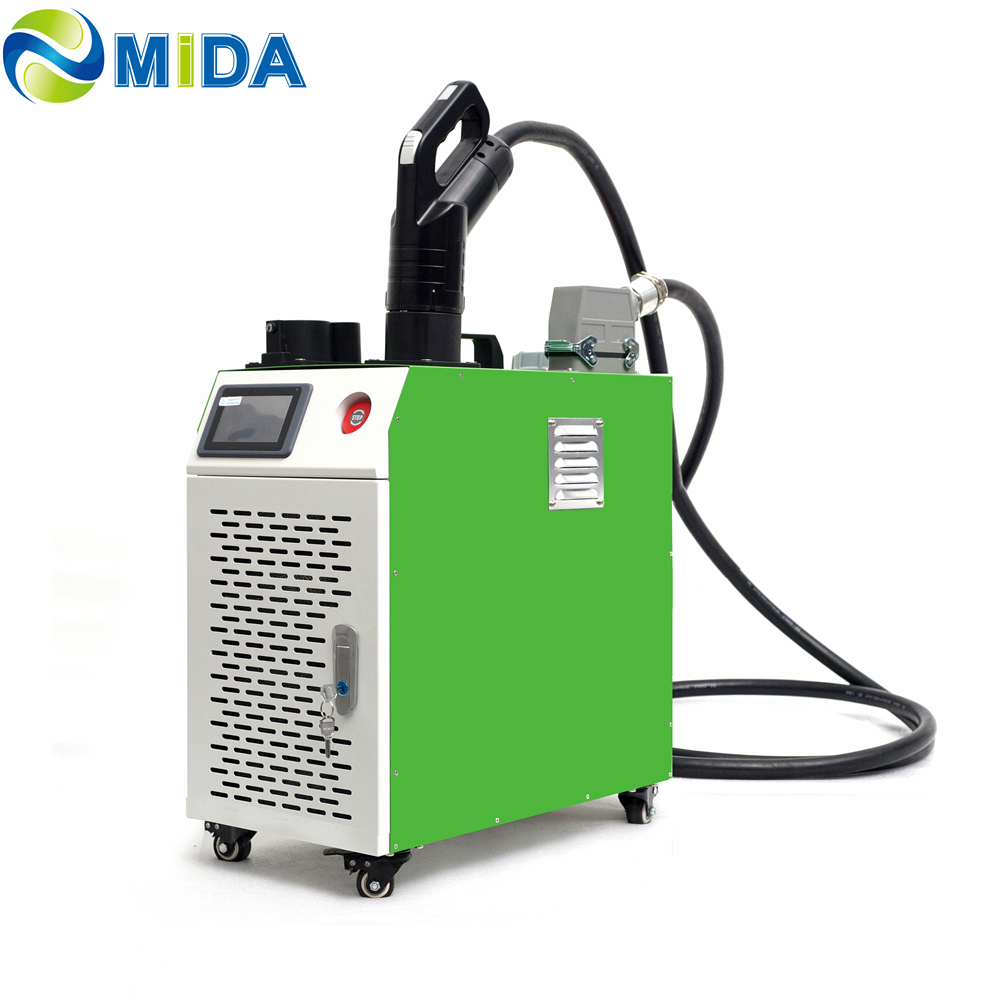

The portable quick charger supports CCS (Combined Charging System) and CHAdeMO charging standards. You can easily switch between them simply by replacing the connection cable.
The open door structure makes maintenance and module replacements extremely convenient. Users or technicians can access the power modules directly and replace components rapidly if needed.
The unit features a dedicated USB port for local firmware updates, alongside an optional RJ45 ethernet port to support stable network connectivity and remote monitoring.
We offer a 12-month standard warranty. During this timeframe, free replacement parts and instructional support for troubleshooting and setup are fully provided.
Yes, we support customized design structures, custom sample builds, and specialized packaging layouts configured strictly to meet your detailed application demands.
