Best 45KW DC Fast Charger Portable Movable EV Charger Electric Vehicles Charging Station CHAdeMO GBT CCS2 CCS1 Manufacturer, Suppliers

1 / 4

Best 45KW DC Fast Charger Portable Movable EV Charger Electric Vehicles Charging Station CHAdeMO GBT CCS2 CCS1 Manufacturer, Suppliers

The 45kw portable quick-charger was developed for electric vehicles with CHADEMO or CCS Combo DC charging sockets and is designed for semi-mobile use.It is compatible with all popular industrial sockets and can be used with CEE63 plug sockets. The charger is flexible in use thanks to its compact dimensions and is especially suitable for use with vehicle pools,in workshops or at motoring events.

Send Inquiry

Product Description

Our Services

Product Introduction

Portable quick charger supports CCS and CHAdeMO only by replace the cable. USB for firmware update and RJ45 port for internet connect(optional). Open door design, it is convenient to replace power module. This charger is perfect to install for charging electric vehicle at maximum speed as well as many EV cars take in road trips through rural areas with RV or industrial areas being the main power sources for ev travelers.

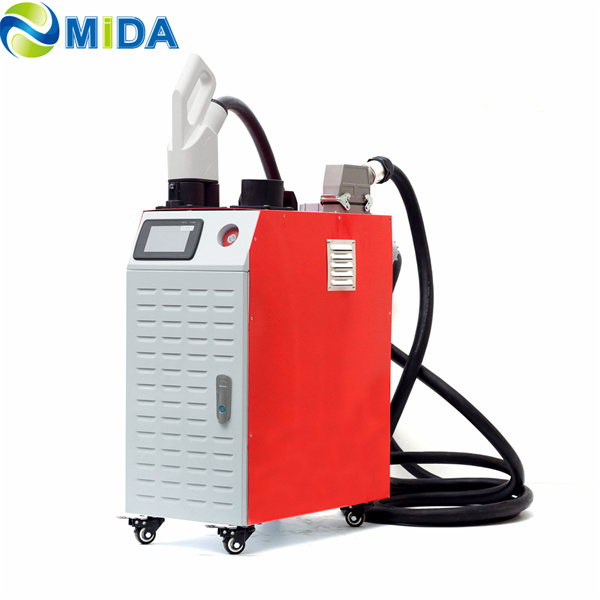

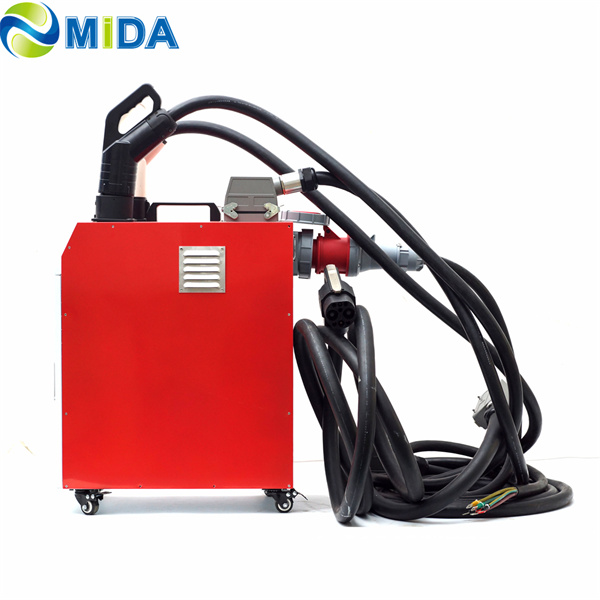

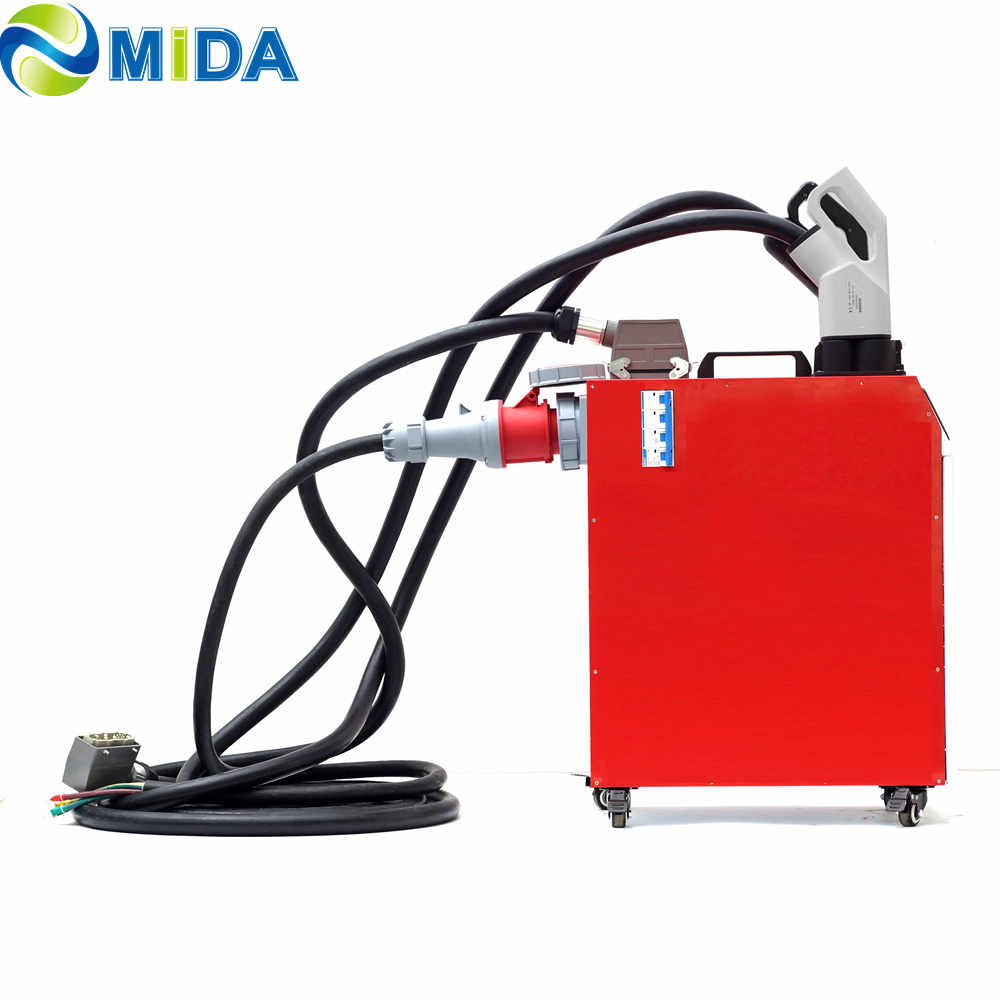

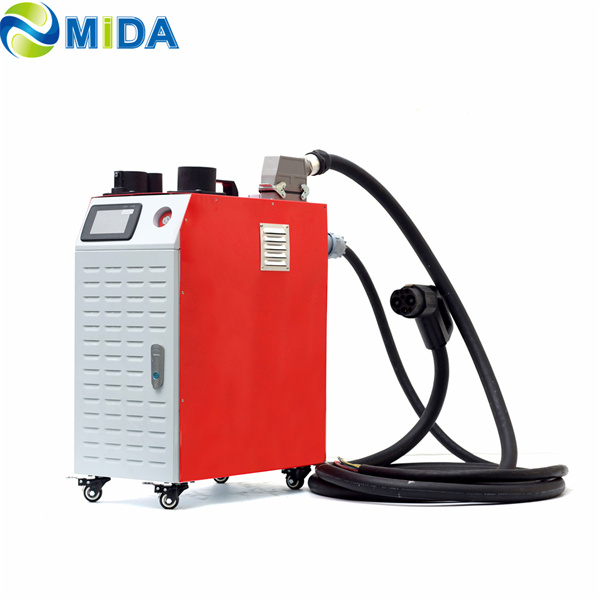

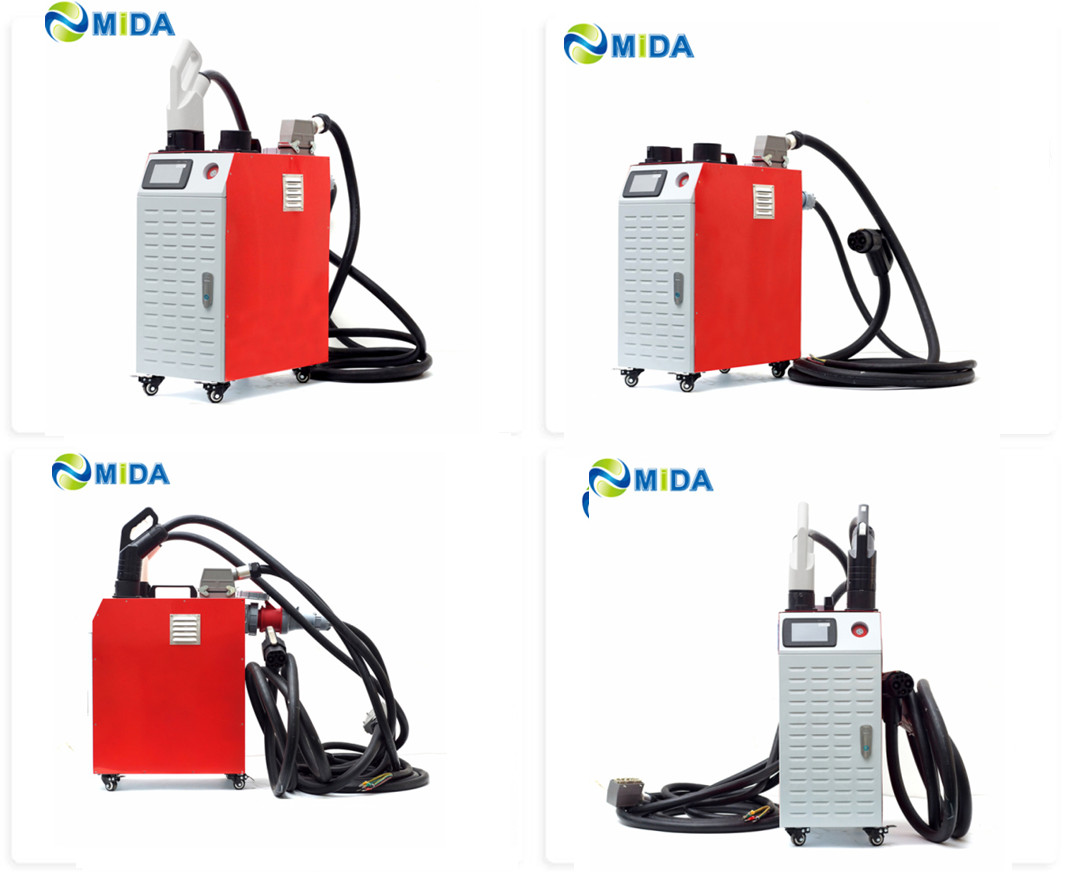

Product Pictures

Product Features

✓

Small size and compact design, easy for portable

✓

It is supporting CCS and CHAdeMO connector

✓

Certification: CE/IEC/ROHS

✓

Protection Degree: IP54

✓

Open door design, it is very convenient to replace power module.

Technical Specification

AC Input	1. Input Rating: 380Vac ± 15%
	2. AC Input Connection: 3P+N+PE (Wye connection)
	3. Max. Input Current: 70A
	4. Efficiency: 95%
DC Output	1. Output Voltage Range: 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T)
	2. Max. Output Power: 45KW
	3. Max. Output Current: 90A @ 500V
User Interface	1. TFT-LCD Touch Panel: 4.3' touch display
	2. Push Buttons: Emergency Stop
	3. Interface: USB, RJ45
Packing	1. Dimension: 600600240mm
Packing	2. Weight: 50KGS
Environment	1. Operating Temperature: -20°C ~ +50°C (derating above +50°C)
	2. Humidity: 5% ~ 90% RH, non-condensing
	3. Altitude: 2000m
	4. IP Level: IP23
Regulation	1. Regulation: IEC61851-1
	2. Certification: CE, ROHS
	3. Charging protocol: CHAdeMO 2.0/DIN 70121/ISO15118/IEC61851-23

Professional Service Support

01 Warranty Time: 12 months comprehensive warranty.

02 Trade Assurance: Safe transactions guaranteed for money, quality, and service.

03 Pre-sales Service: Professional advice on generator sets, configurations, and installation.

04 Production Tracking: Real-time progress tracking of your order production.

05 Customized Design: Support for bespoke design, sampling, and packing requirements.

06 After-sales Support: Free installation instructions, troubleshooting, and replacement parts within warranty.

Frequently Asked Questions

Does this charger support multiple charging standards?

Yes, the portable quick charger supports CCS, CHAdeMO, and GB/T standards. You can switch between CCS and CHAdeMO simply by replacing the cable.

What is the maximum charging power of this portable unit?

The charger provides a maximum output power of 45KW, making it ideal for fast charging in various environments.

How do I update the charger's firmware?

The unit is equipped with a USB port specifically for firmware updates, ensuring your charger stays up-to-date with the latest protocols.

Is the charger suitable for outdoor use?

The unit features an IP54 protection degree for durability and is designed to operate in temperatures ranging from -20°C to +50°C.

Can the power module be easily replaced?

Yes, the charger features a convenient "open door" design, which allows for quick and easy maintenance or replacement of the power module.

What certifications does this product hold?

Our chargers are fully certified with CE, ROHS, and IEC standards, ensuring high safety and quality for international markets.
