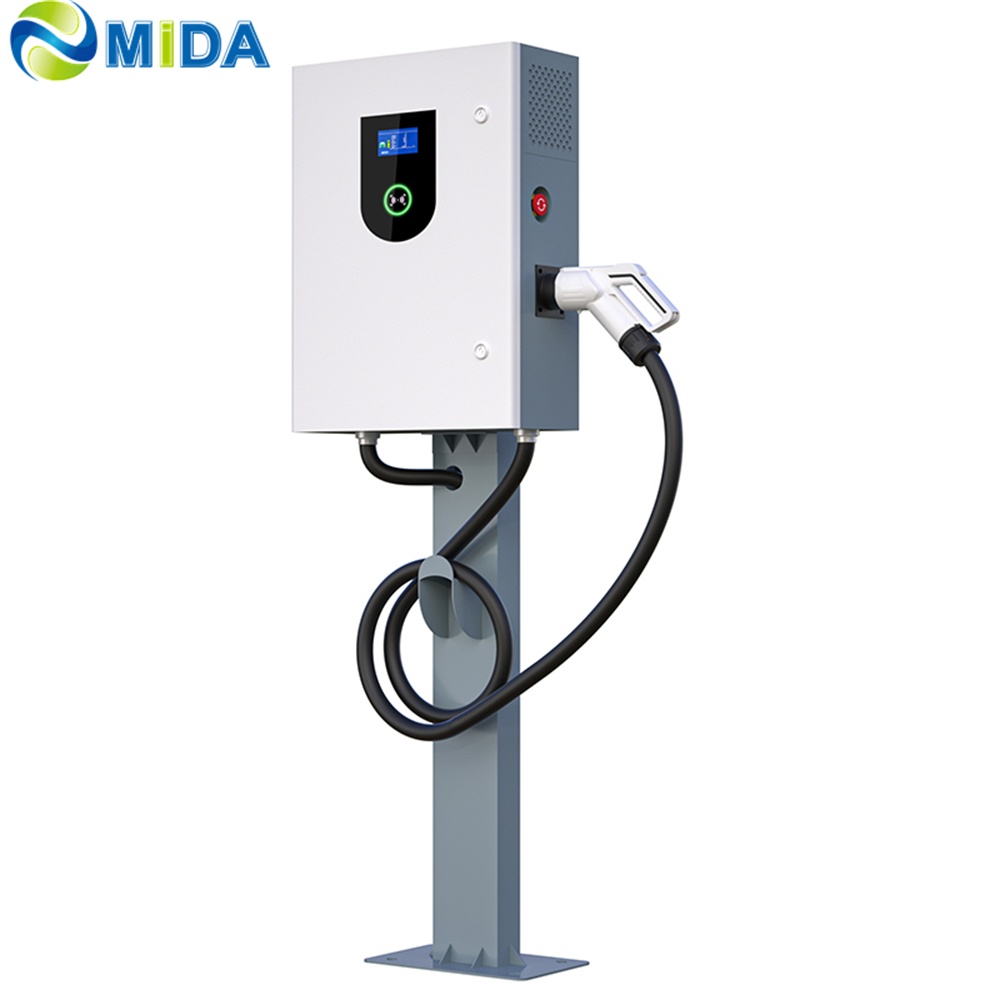

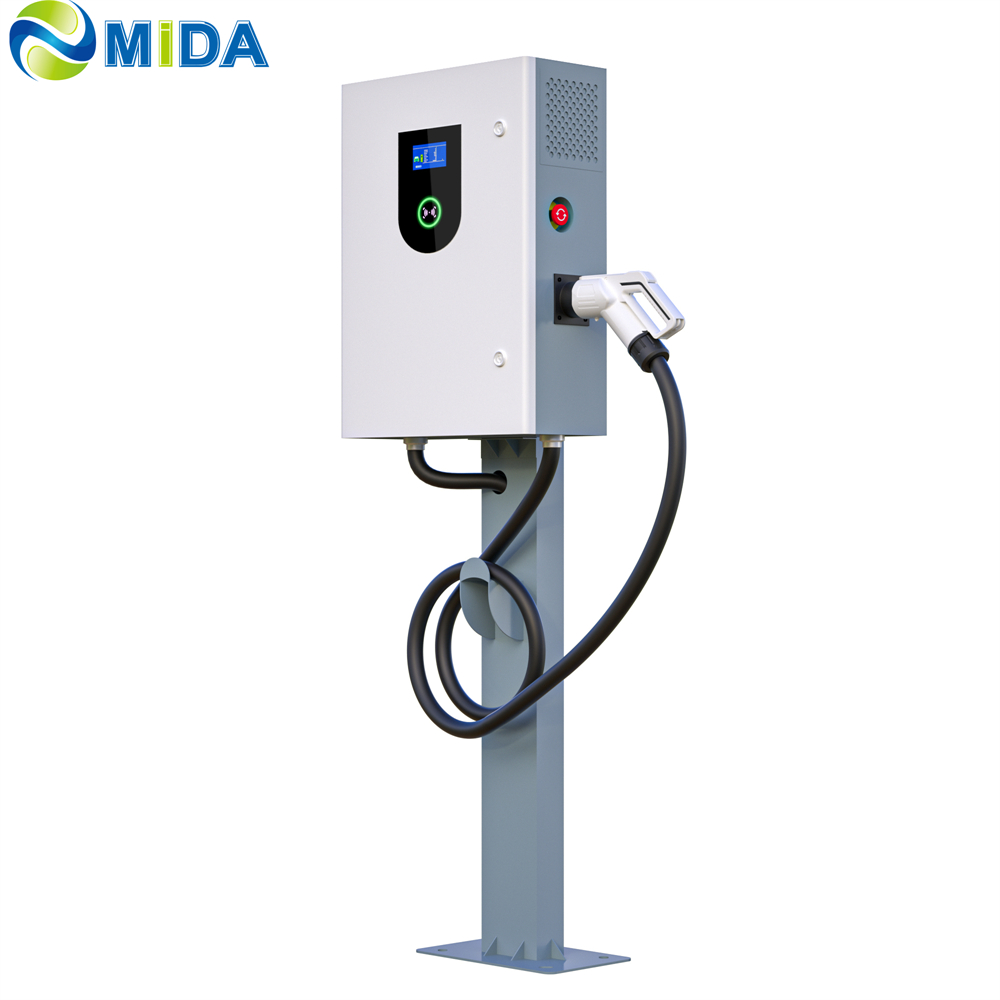

20KW wallmounted DC ev charging pile is a quick charging station able to charge all compatible electric vehicles.User only need to plug the charging connector to the vehicle and the charger will immediately start the charging process.
Send Inquiry

Product Description

S
Our Services
Our Services
I
Product Introduction
20KW wallmouned charging pile: it can adapt to the voltage of the USA/European power grid, with CHAdeMO/CCS or AC plug, only charge one plug at a time.
Product Pictures
F
Product Features
Product Features
✔ Dynamic power share
✔ Stand alone or network integrated charger
✔ Local or remote monitoring and control
✔ DC power up to 20KW
✔ Master /slave mode via Modbus TCP or Wifi wireless
✔ Parallel connection supported
T
Technical Specification
AC Input 1. Input Rating: 380Vac ± 15%
2. AC Input Connection: 3P+N+PE (Wye connection)
3. Max. Input Current: 56A
4. Efficiency: 96%
DC Output 1. Output Voltage Range: 200V-750V
2. Max. Output Power: 20KW
3. Max. Output Current: 60A@350V, 28A@750V
User Interface 1. TFT-LCD Touch Panel: 4.3' touch display
2. Push Buttons: Emergency Stop
3. Communication: VPN/DNS/Cloud, WiFi, RJ45, 3/4G (GSM/CDMA), Modbus TCP, PLC
Packing 1. Dimension: 1600*735*306mm
2. Weight: 90KGS
Environment 1. Operating Temperature: -20°C ~ +50°C
2. Humidity: 5% ~ 90% RH, non-condensing
3. Altitude: 2000m
4. IP Level: IP54
Regulation 1. Regulation: IEC61851-1
2. Certification: CE, ROHS, TUV, CSA, UL, IEC
3. Charging protocol: CHAdeMO 2.0 / DIN 70121 / OCPP 1.6 (JSON or SOAP), ISO 15118
V
Value-Added Services
1) Warranty: 12 months comprehensive warranty coverage.
2) Trade Assurance: Guaranteed safe transactions covering payment, quality, and service.
3) Pre-Sales Service: Professional consultation on generator set choice, configurations, and installation.
4) Production Tracking: Real-time progress updates throughout the manufacturing process.
5) Post-Sales Support: Free installation instructions, troubleshooting, and free replacement parts within warranty.
6) Customization: Support for customized designs, samples, and packing based on requirements.
Frequently Asked Questions
Q1: Does this 20KW charging pile support both CCS and CHAdeMO? A: Yes, it can be configured with CHAdeMO, CCS, or AC plugs to suit different regional EV standards.
Q2: Can I monitor the charging status remotely? A: Absolutely. It supports local and remote monitoring via WiFi, RJ45, or 3/4G connections using Modbus TCP or Cloud platforms.
Q3: Is the charging pile suitable for outdoor installation? A: Yes, it is rated at IP54, providing protection against dust and water, making it suitable for most outdoor environments.
Q4: What is the input voltage requirement? A: It requires a 380Vac ± 15% input with a 3P+N+PE connection, compatible with standard industrial power grids.
Q5: What certifications does this product have? A: The product is fully certified with CE, ROHS, TUV, CSA, UL, and IEC standards to ensure safety and quality.
Q6: What happens if I encounter a technical issue after the warranty expires? A: We provide lifelong technical support. While parts are free during the warranty, we continue to offer troubleshooting guidance and spare parts at cost thereafter.
